Can Gateway Passat b7 location?

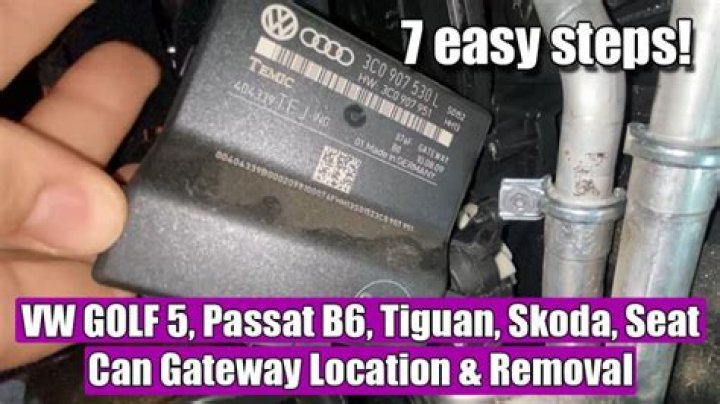

Registered. also known as J533, the canbus gateway is located near the center console, next to the steering column. There is a 20 pin connector on it.

Accordingly, what is a CAN gateway module?

The CANBus Gateway module acts as a bridge between a vehicle host CANBus network and the Stack Data Logging system. Up to 256 channels can be taken off the host CANBus network and transferred to the Stack CANBus network where they can then be recorded, displayed, used for alarms purposes etc.

Also, what is VW CANBus? CAN is a new means of communicating with the car for diagnostics used by the latest generations of VW, Audi, SEAT, and Skoda vehicles. Unlike the older ISO9141 system which used a single K-line for diagnostic communications, the new CAN-Bus system uses a twisted pair of wires with differential signaling.

People also ask, what does CAN Gateway mean?

A CAN gateway (or bridge) functions as an interface between different networks, enabling the possibility of connecting different CAN networks (or sub-networks) with different baud rates and protocols, or integrating with different network types, such as with Ethernet.

Can Gateway be programmable?

Data recording via CAN interface and transmission via mobile communications. The CAN Gateway EC-CAN-00x is a compact, freely programmable device for the recording, processing and transmission of machine data. The CAN Gateway is additionally equipped with a multi-GNSS module for exact location determination.

Related Question Answers

Can you upgrade Gateway?

The CAN gateway upgrade is only applicable for models before 2008. This upgrade is recommended if you intend to get the best use from your RNS-510 Sat Nav. This upgrade will also allow you to install the later generation radios to earlier pre 2008 vehicles. Radios that will require this upgrade.

What would happen if the gateway module were to fail?

No Communication

Control modules that communicate via the Central Gateway module do not respond if the Gateway Module has failed. The engine will start and run fine in some cases, but the vehicle may go in limp mode.

How can Gateway works?

A gateway mainly works on IP(Internet Protocol) Addresses for dissimilar network communication. It has control over both collisions(inside a network) as well as broadcast(outside the networks) domain. It can also encapsulate and decapsulate the data packets when they send and receive the data packets respectively.

What is a vehicle gateway?

An automotive gateway serves a critical role in vehicle security, in addition to performing data routing functions, and supporting new, vehicle-wide applications. A gateway is a central hub that securely and reliably interconnects and processes data across these heterogeneous vehicle networks.

CAN bus central gateway?

The Central Gateway is the connecting element between all vehicle domains and the outer world. ECUs within the vehicle are connected to the CGW by CAN and Ethernet. The diagnostic connector allows a wired access outside the vehicle. To contact the internet a CCU is required.

What is a gateway module and how does it work within the CAN network communication?

The gateway serves as the information bridge between various in-car communication networks, including Ethernet, FlexRay, CAN, LIN and MOST® protocols. It also serves as the car's central diagnostic interface. Gateway functionality can be integrated into the central BCM or may be a separate ECU.

What is a can channel?

Essentially, a CAN network is a facility for passing messages around a group of devices. A message can be transmitted by any device, and is available to every device. For example, incoming messages might be directed into channels that are used by different processes.

What is meant by CAN communication?

A Controller Area Network (CAN) bus is a communication system made for vehicle intercommunication. This bus allows many microcontrollers and different types of devices to communicate with each other in real time and also without a host computer. It is a completely message-based protocol, and is used mainly in vehicles.

Can Can Gateway?

The CAN to CAN Gateway, developed by Sioux Logena answers the need in the market to interconnect in-vehicle CAN networks or divide two CAN networks. Implementing multiple CAN to CAN gateways offers you this option. At your convenience Sioux Logena can configure the gateway to match your specific needs and application.

How do you tell if car is CAN bus?

How do I know if my car is equipped with CAN Bus? If the vehicle warns you when a bulb is out, it is equipped with CAN Bus. The easiest way is to contact the vehicle's supplier or dealership. If you're still not sure, we normally tell customers to remove a light and drive the vehicle to see if it gives a warning.

How do CAN bus system work?

The CAN bus system enables each ECU to communicate with all other ECUs - without complex dedicated wiring. Specifically, an ECU can prepare and broadcast information (e.g. sensor data) via the CAN bus (consisting of two wires, CAN low and CAN high).

What can you do with Vcds?

VCDS software is basically used to diagnose and adjust motor vehicles from the Volkswagen Group. It enables users to view and adjust data that different car computers use. Among the vehicles whose data can be diagnosed and adjusted using this software include Volkswagen Passenger, SEAT, Skoda automobiles and Audi.

CAN bus IDS?

There are two standard formats for CAN packets, the base format (CAN2. 0A) and the extended format (CAN2. 0B). The extended format features a 29-bit ID while the base format features an 11-bit ID.

When did VW start using CAN bus?

The first production launch at Volkswagen took place in MY 97 with the 62.5 kbps convenience system in the Passat. The CAN bus is an independent system with the car's electronics systems and acts as a data line to exchange information between control units.

Does Vcds Lite work on mk5 Golf?

Registered. VCDS Lite doesn't support the mk5 platform. Some items may still be on a K-line and an older style interface can talk to them. In order to work fully with the mk5 and newer platforms, you would need to have a HEX-USB+CAN or microCAN cable from Ross Tech.
