Can I plug a 5v into a 12v RGB?

Without question the 2 versions of RGB are not interchangeable and do not work together. Plugging 5v circuit into 12v header may cause damage to the product you are plugging in.

People also ask, is Argb a 5v or 12v?

5v are digital (ARGB) addressable and need compatible lights. 12v are ordinary analog RGB.

Additionally, can you plug 3 pin RGB into 4 pin? The 3-pin RGB headers are used with Addressable RGB lighting systems. Although the header pin layout looks similar, as OP has found one of the holes in the connector is blocked off so you can NOT plug it into a 4-pin header by mistake.

Herein, can you plug RGB into Argb header?

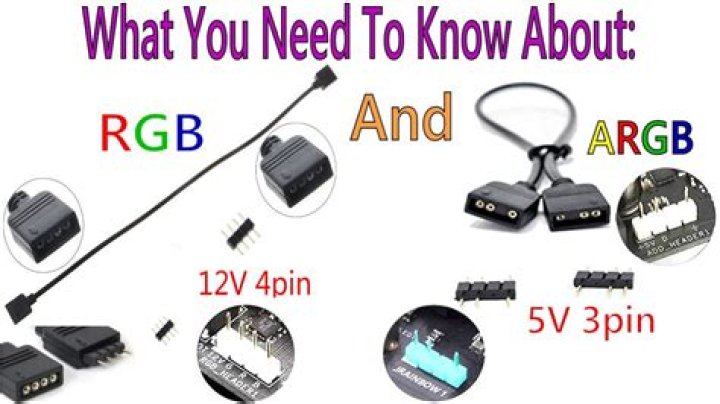

Can i plug a 3 pin addressable rgb into a 4 pin addressable rgb on my mobo? You can't. 3-pin ARGB headers are 5V with a 5V pin, a single data pin, a blank spot and a ground pin. 4-pin RGB headers are 12V with 12V, red, blue and green pins.

What is a 3 pin RGB header?

3-Pin ARGB Header (5V)

The 3-pin header, which is 5V, can also be referred to as the “digital RGB header”, or “addressable RGB header” (DRGB, ARGB). This header uses separate pins for power, data and ground. This data pin is why it's referred to as “digital”, because it sends a data stream across the pin.

Related Question Answers

What is the difference between 5v and 12v?

While the 5v will use less power, but will be limmited to shorter distances. The voltage doesn't imply power. 1 amp of current at 12v uses 12 watts of power, yet 3 amps at 5v uses 15 watts of power. Watts is what power is measured in and what you're billed for.

Are 12v LEDs brighter than 5v?

5V is brighter than 12V as the 12V bullet pixels use half the current to stay somewhat close to 5V efficiency. Close, but 5V is still more efficient. So a 5V display will be brighter and use less power than a 12V display.

Whats the difference between RGB and Argb?

aRGB header uses 5V of power, where RGB header uses 12V. To put it simple, RGB header is mostly for RGB light strip (A long chain of RGB LED light). aRGB header is mostly for devices that has its own controller built in.

Is Argb better than RGB?

RGB and ARGB Headers

Not only are they functionally different but they are visually quite distinct too. RGB or ARGB headers are used to connect RGB LED strips and other RGB accessories to your PC. However, an RGB header (usually a 12V 4-pin connector) can only control colors on a strip in a limited number of ways.

How many RGB headers do you need?

two RGB headers

What is D RGB?

Digital RGB (AKA addressable-RGB) allows the LEDs in a device to be controlled individually. This is different from having a unique color on each device or having a device's change color in sync. Those effects can be accomplished with traditional RGB lighting and an advanced multi-port controller.

Where does RGB plug into motherboard?

You would plug those into the RGB headers on the motherboard. The fans will come with separate connectors (3 pin most likely) for the fan power and control.

How does addressable RGB work?

Addressable LEDs are neither controlled by voltage, nor Pulse-Width Modulation. They are controlled by a carrier signal. This 800kHz signal has a format that describes to the chip what each of the colors should be, what the brightness should be, and also what every LED in the chain downstream should be too.

Will RGB fans work without RGB header?

No they aren't compatible with these fans those all use proprietary systems where the Coolermaster ones use the common RGB SMD5050 type standard.

Does gigabyte a320m have RGB header?

Only problem is, the a320m-s2h doesn't have an addressable RGB header. If you want to change the colors, you'll have to make use of the reset switch connector, or upgrade your board.

Can you connect Argb to RGB?

NO, NO AND MORE NO!!! RGB is different than ARGB. RGB is 12v with 4pins on the MoBo/controller ARGB is 5v with 3 pins. Connecting this to your mobo will fry the leds.

Can I use 4 pin PWM fans on a 3 pin header?

FAQ: Can I run 4-pin PWM fans on 3-pin fan headers? Yes! PWM fans come with a 4-pin connectors for fully automatic speed control via your mainboard's 4-pin PWM fan headers. When connected to 3-pin fan headers, the fan will run at full speed (unless the mainboard supports voltage based speed control).

Can you use 3 pin fan 4 pin?

Yes, you can. Yes, you can also plug a 4 pin fan into a 3 header.. You can plug a 3-pin fan into a 4-pin header just fine. Speed control options (RPM range) will vary between fans and motherboards on a 3-pin connection, but the fan will spin.

Can you control fan speed with 3 pin?

For 3-pin fans, the connections to it are Ground to Pin #1, +VDC (varying) to Pin #2, and Speed signal on Pin #3. To control fan speed, the mobo header must alter the voltage on Pin #2, ranging form +12 VDC (max) to about +5 VDC.

How do I connect 3 pin to 4 pin?

Please Note: You can connect a 3 Pin Fan to a 3 Pin or 4 Pin header on the motherboard. The fan will function normally no matter type of fan header is used. 1. The fan connector will have two guides (1) and these will need to line up with the tab (2) that is on the motherboard fan header.

Can 3 pin fans be PWM?

With the 4-pin PWM to 3-pin transformer, all 3-pin fans can now be controlled with a normal PWM signal. The converter is connected to your motherboard or PWM fan control, while the fans are connected to the converter.

How many RGB Fans Can I daisy chain?

Two fans

Where do 3 pin fan connectors go?

3-pin fans will plug directly into a 4-pin motherboard header without any additional adapters. 3-pin fans still have an RPM sensor on them, and most mainboards can still vary their speed based on temperature. 3-pin fans use simple voltage control for adjust the fan speed.

Do 3 pin fans run at full speed?

If you plug 3 pin fans into 4 pin headers yes, they will run at full speed. 3 pin fans use DC fan control, meaning the fans spins slower when we lower the voltage. Also, PWM fans can work in DC mode.

How do you connect RGB fans?

Use RGB Y-Cable to connect the fan and the motherboard. Please use RGB 4-Pin connector to an RGB header, and 4-pin fan connector to a fan header on the motherboard. 1. Please install the fan by following our instructions.

What is a motherboard header?

The front-panel header is a grid of pins on the motherboard, often with some color coding or other on-board labeling, that accepts wires from your PC case.
