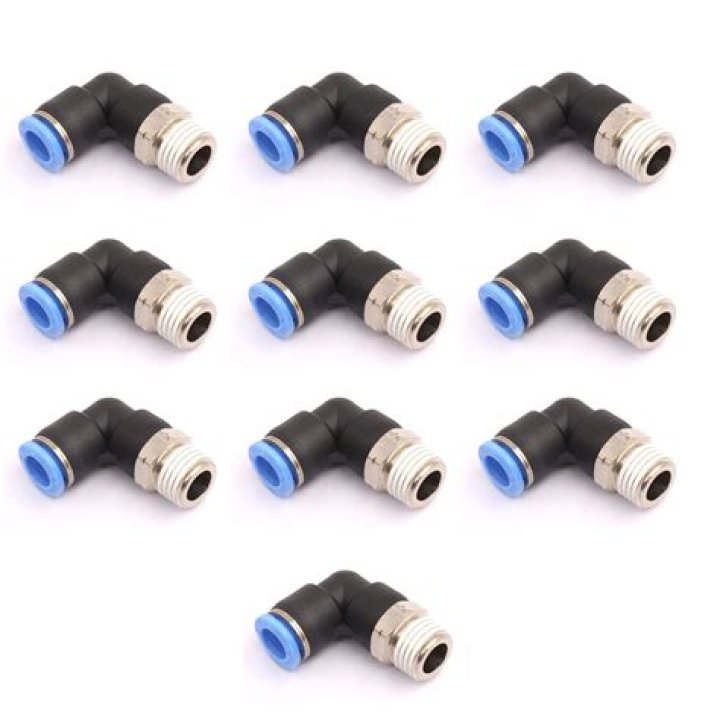

Do 90 degree fittings restrict air flow?

Turbulence is another way in which airflow is restricted. The main cause of turbulence is 90 degree elbows in ducts. When you use elbows with curved sides, there is less turbulence so choose your fittings with care.

Similarly, you may ask, how much flow do you lose by 90 Bend?

A long radius 90-degree bend (a bend radius of 4.5 inches, or 11.4cm) has a flow restriction equal to about 5 feet (about 1.5 metres) of straight pipe.

Also Know, how do you calculate pressure drop in elbow? After summing these equivalent lengths as appropriate for your hydraulic system, you may simply calculate the pressure drop for the resulting length of pipe.

Values for the Equivalent Length of Pipe for Various Fittings.

Fitting	Types	(L/D)eq
90° Elbow Mitered	1 weld (90°)	60
	2 welds (45°)	15
	3 welds (30°)	8

Also, are two 45s better than a 90?

The short answer is "yes", 2 45's flow more than 1 90. The longer answer is more scientific but the farther apart the 2 45s are, the better the flow will be.

Do PEX crimp fittings restrict flow?

The reality is that even PEX expansion fittings, which are sometimes referred to as “full-flow,†restrict flow rates. At a rate of 8 feet per second, the CPVC fitting will cause less than 1% restriction in flow while PEX fittings create a 23% to 54% reduction in flow, depending on the fitting used.

Related Question Answers

Do shark bite fittings reduce flow?

Do sharkbite fittings reduce flow rate? Technically the answer is absolutely no. They will not effect pressure at all. They may effect flow rates and while theoretically different there is a real correlation between the two.

Why do bends cause head loss?

Bends are provided in pipes to change the direction of flow through it. An additional loss of head, apart from that due to fluid friction, takes place in the course of flow through pipe bend.

What happens to the head loss when the flow rate is doubled?

Explanation: If the flow rate is doubled, the head loss increases by a factor of four. Since, the head loss is directly proportional to the square of the flow rate.

What is equivalent length of pipe fittings?

The definition of the Equivalent Length of a pipe fitting is the length of pipe of the same size as the fitting that would give rise to the same pressure drop as the fitting.

Why do pipes have bends?

Pipe bends (elbows) are widely used in industrial steel piping and steel pipelines. In industrial piping systems, bends are mainly used because of their flexibility, which allows for the accommodation of thermal expansions and the absorption of other externally-induced loads on the piping system.

What is the difference between a 45 degree angle and a 90 degree angle?

A 45-degree angle is exactly half of a 90-degree angle formed between two rays. It is an acute angle and two angles measuring 45 degrees from a right angle or a 90-degree angle.

Do 90s reduce water pressure?

My understanding of plumbing is that water flows more like electricity than air, so the 90 elbows should have minimal effect on pressure - unless the elbows all have a reduced interior diameter.

Is 45 degree elbow better than 90 degree elbow?

Yes two 45's will have less headloss that one 90. Other options are increase the size of the piping which reduces friction/headloss or use Spaflex PVC bent in a nice gradual smooth bend.

Which angle measures 45 degrees?

In a right angle, the two arms are perpendicular to each other. When the right angle is divided into two equal parts each angle measures 45°.

What is long sweep elbow used for?

Long sweep elbows are commonly used in residential and commercial construction to direct water from above-floor drains and sumps to the main drain line. They are a kind of a very long (and curved) pipe fitting that is used instead of a 90-degree elbow fitting to route wastewater.

What is a 45 degree elbow?

A 45 degree elbow is the elbow which can change the flow direction in a 45 degree . As a joint, it is used between the two pipes which has this right angle. 45-Degree-Elbow. In the field of butt welding steel elbows, it looks like a half of the 90 degree elbow.

How much water pressure do you lose with 90 degree elbow?

A hard turn 90 degree elbow equals 17 feet of straight pipe. Two hard turn 90 degree elbows as displayed in Figure 2 equaled the pressure drop of 52 feet of straight pipe!

What happens to the pressure drop across pipe fittings?

The main causes of the pressure losses in pipe fittings are the changes in direction and cross sectional area. Both of these changes result in acceleration of the fluid and this consumes energy.

What is the equivalent length of a 90 degree elbow?

For example, a 3/4-inch, 90-degree copper elbow has an equivalent length of 2 ft. of 3/4-inch copper tube. A 3/4-inch copper tee with flow making a 90-degree turn has an equivalent length of 3 ft.

Does pressure change with pipe diameter?

In water flowing pipeline, pipe size and water pressure are dependent on each other. Because if the diameter of a pipe decreased, then the pressure in the pipeline will increase. In the narrower pipe, the velocity can be high, and pressure can be higher.

How does pressure drop affect flow rate?

What is the Relationship between Flow Rate and Pressure Drop? Pressure drop and flow rate are dependant on one another. The higher the flow rate through a restriction, the greater the pressure drop. Conversely, the lower the flow rate, the lower the pressure drop.

Why does pressure drop in a pipe?

A pressure drop occurs when frictional forces, caused by the resistance to flow, act on a fluid as it flows through the tube. The main determinants of resistance to fluid flow are fluid velocity through the pipe and fluid viscosity.

How do you calculate pressure drop flow?

With a pressure drop, for instance, of 80,000 pascals, 0.0025 x 80,000 = 200. Multiply the constant pi by the answer to Step 1: 3.142 x 0.0025 = 0.00785. This answer is the pipe's cross-sectional area. Multiply the area by the answer to Step 2: 0.00785 x 200 = 1.57.

When pipes are connected in parallel?

When two or more pipes are connected, as shown in Fig. 36.3, so that the flow divides and subsequently comes together again, the pipes are said to be in parallel.

How are pipe diameter and pressure drop related?

If the pressure loss of the system needs to be minimised, the velocity has to decrease and therefore the diameter of the pipes will increase. If the size of the pipes in an installation need to be reduced, it will be necessary to increase the velocity of the systems and thus the pressure loss.
