Does G Sync require DisplayPort?

It supports up to 8K resolution at 60Hz. Nvidia's G-Sync also requires DisplayPort, and while AMD's FreeSync is supported over some HDMI connections, adaptive sync technology has been baked as an option into the DisplayPort standard since 1.2a so adaptive sync DisplayPort monitors are much easier to find.

Also, does G sync only work with DisplayPort?

G-Sync capable monitors are clearly labeled and come with a dedicated G-Sync module in place of the regular scaler. Still, G-Sync remains limited to DisplayPort only, unlike AMD's FreeSync, which recently became available over HDMI.

Subsequently, question is, is G Sync needed? G-Sync is useless if you're hitting frames over refresh rate. It's only useful at 0 < FPS < Hz. That's not correct at all. You can still have screen tearing with higher frames over refresh rate, where Gsync and Freesync causes it to match and removes tearing entirely.

Similarly, you may ask, should I use HDMI or DisplayPort?

DisplayPort is a bit more versatile, but if your monitor only gives you the choice between HDMI 2.0 and DisplayPort 1.2—like this Pixio display does—HDMI may be the better choice, since HDMI 2.0 supports HDR and DisplayPort 1.2 does not.

Do I need DisplayPort for FreeSync?

In order for FreeSync to work, you need a compatible AMD graphics card or integrated APU system, a compatible and certified monitor, and a DisplayPort connection. You'll also need a compatible DisplayPort cable, which may or may not come with your graphics card, monitor, or computer.

Related Question Answers

Can HDMI run 144hz?

Yes, HDMI 1.4 can support up to 144Hz at 1920×1080. However, not all monitors with HDMI 1.4 necessarily do as well. Many monitors with HDMI 1.4 are also limited to 120Hz at 1080p.

Do I need GSync with 144hz?

So to answer your question, YES there is a difference between a 144hz monitor with and without GSync. If your monitor does not have GSync and your GPU is unable to produce 144FPS, you will notice tearing.

Does Gsync lower FPS?

G-sync eliminates screen tearing, which occurs when your gpu is putting out more or less FPS than your max refresh. So on a 60hz monitor without gsync, unless you are running EXACTLY at 60fps (so even 59 or 61fps) you will get screen tearing (which you can google examples of) which is very annoying and jarring.

Can I use Gsync with HDMI?

However, while the first wave of G-Sync monitors was limited to DisplayPort only, newer G-Sync monitors like the ASUS ROG Swift PG279Q feature an updated module that allow inputs over HDMI 1.4. Still, G-Sync remains limited to DisplayPort only, unlike AMD's FreeSync, which recently became available over HDMI.

Is Gsync good for gaming?

If you have a high-end GPU capable of stably maxing out your monitor refresh rate, then you're in the bracket of people who'll least notice the difference when you upgrade to G-Sync. The question of whether G-Sync (or its AMD cousin, FreeSync) is worth it will be a moot point for gamers in a couple of years time.

Do you need DisplayPort for 144hz?

For 144Hz at 1440p, you will need at least an HDMI 2.0 or a DisplayPort 1.2 while for 4K 144Hz you are going to need an HDMI 2.1 or alternatively, a DisplayPort 1.4 which maxes out at 120Hz without compression.

Does Gsync cause input lag?

GSYNC itself does have a constant increase in input lag, but it is very very minor, and the frame consistency it offers makes it an incredible option.

Is G sync better than FreeSync?

One clear difference between Nvidia G-Sync and AMD FreeSync is how they handle graphics cards that produce higher frame rates than a monitor can handle. G-Sync locks frame rates to the upper limit of the monitor while FreeSync (with in-game Vsync turned off) will allow the graphics card to produce a higher frame rate.

Is DisplayPort good for gaming?

DisplayPort is the clear choice for high FPS or 4K gameplay. DisplayPort can carry audio too, although it's up to the manufacturer to support and implement audio over DisplayPort, so some devices from some brands will have it, while others may not.

Is DisplayPort faster than HDMI?

DisplayPort 2.0 has four lanes that can deliver approximately 77.37Gbps (19.34Gbps per lane) of actual data, while DisplayPort 1.4a can deliver 32.4Gbps (6.48Gbps per lane); HDMI 2.0 delivers 14.4Gbps; and the older HDMI 2.1 offers 42.6Gbps.

What is DisplayPort used for?

The interface is primarily used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. DisplayPort was designed to replace VGA, DVI, and FPD-Link.

Is DisplayPort the same as HDMI?

DisplayPort looks similar to HDMI, but is a different connector more common on PCs than TVs. It still allows for high-definition video and, in many cases, audio, but its standards are a bit different. DisplayPort 1.3: Supports up to 4K at 120Hz or 8K at 30Hz.

How do you use DisplayPort?

To connect your PC to multiple monitors using DisplayPort MST:

1. Verify that the video or graphics card (GPU) on your PC supports has a DisplayPort 1.2 MST.
2. Connect your PC to the DisplayPort In on the first monitor.
3. Connect DisplayPort Out on the first monitor to DisplayPort In on the second monitor (Figure 2).

Can HDMI 2.0 do 144hz?

HDMI. So, make sure that the exact monitor you're looking at supports 144Hz or at least 120Hz over its HDMI 1.4 port – or just look for a 144Hz display with HDMI 2.0. HDMI 2.0 is also fairly standard and can be used for 240Hz at 1080p, 144Hz at 1440p, and 60Hz at 4K.

Can I plug DisplayPort into HDMI?

The answer is yes and no. For the record the Display Port signal is not compatible with HDMI. If the DisplayPort output is a Dual mode DisplayPort then it has the ability to recognize and adjust the signal to HDMI when a passive adapter cable is connected.

What port is 144hz?

The short answer to which is the best type of cable for 144Hz monitors is that DisplayPort > Dual-link DVI > HDMI 1.3. To display 1080p content at 144Hz, you can use a DisplayPort cable, Dual-link DVI cable or a HDMI 1.3 and higher cable.

Which is better HDMI or DVI?

Main Difference between HDMI and DVI, is that HDMI carries video and audio. DVI only carries video. As far as max resolution DVI can handle 1920x1200 @ 60Hz, which is higher bandwidth than 1920x1080 @ 60Hz required for 1080p HD. It depends also on the video card you have in your PC and max resolution of your monitor.

Does Tfue use G Sync?

Tfue is using one of the best gaming monitors currently available. With it's 240 Hz refresh rate and 1 ms response time it is incredible responsive and smooth. Besides this is has Nvidia G-Sync for an even smoother gameplay. This monitor is top of the notch is you are serious about gaming.

Does shroud use Gsync?

shroud NVIDIA Control Panel Settings Also note, shroud DOES NOT use G-SYNC (because of the input lag).

Is Gsync good for fortnite?

If you are playing fast paced games such as FPS games or racing games then yes, G-Sync might be worth your time. If your GPU is producing 200fps on Fortnite, but your monitor is only a 144hz monitor, then G-Sync isn't going to stop all the tearing because your frame rate is above your monitors refresh rate.

Should I buy a 144hz monitor?

Bottom Line: 144Hz is Worth it for Competitive Gamers & Gamers With Large Budgets. For competitive gamers who are looking for every advantage possible, 144Hz is worth it. However, just note that, if you do want to get a 144Hz gaming monitor, you'll need a high-end gaming computer in order to properly utilize it.

Is 240hz G Sync worth it?

1080p 240Hz Gaming Monitors Instead, they leave the FPS rate uncapped in order to get as low input lag as possible. The quality of backlight strobing technology implementation also varies between different gaming monitors. So, in this case, G-SYNC is usually not worth it.

Can I use FreeSync with HDMI?

AMD says that "FreeSync through HDMI will be supported on all AMD APUs and GPUs that already support FreeSync via DisplayPort, and AMD is working with ecosystem partners including LG, Samsung and Acer to deliver FreeSync over HDMI-compatible displays." That means existing FreeSync monitors won't magically start

Should I turn on FreeSync on my monitor?

Best answer: Yes, you should, assuming your computer has an AMD graphics card. FreeSync is a good choice on this monitor that's ideally suited for gaming.

How important is G Sync?

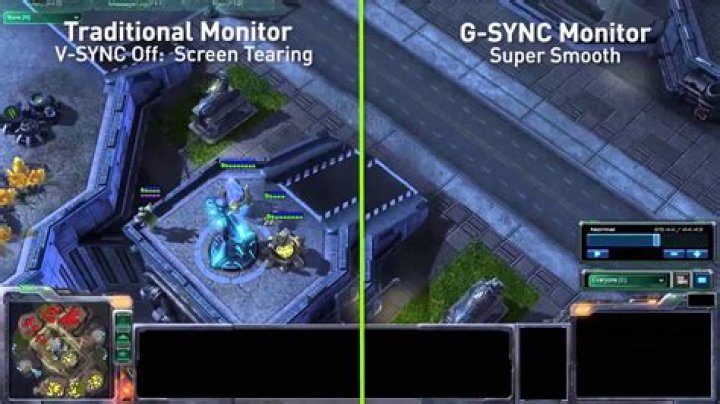

One of biggest benefits of a G-Sync monitor or laptop display is its ability to resolve an issue known as screen tearing. In certain cases, the video signal from the graphics card will output to the monitor at a rate the display is not capable of handling, which results in a horizontal line or "tear" across the screen.

Is FreeSync a hardware or software?

AMD FreeSync is therefore a hardware–software solution that uses publicly-available protocols to enable smooth, tearing-free and low-latency gameplay. FreeSync has also been implemented over HDMI 1.2+ as a protocol extension.

Is AMD FreeSync worth?

If you already have an AMD card, it's worth it to get a FreeSync monitor. In addition, if you play graphics-intensive games that stress your GPU such as any AAA game, AMD FreeSync is probably worth it. Especially if you're in a 48 to 75 frames per second range.

Does FreeSync increase FPS?

As Fast As Possible. AMD FreeSync synchronizes a compatible monitor's refresh rate (Hz) with a compatible graphics card's frame rate (FPS). As a result, all screen tearing and stuttering is eliminated within the dynamic refresh rate range of the display.

What is the difference between FreeSync and Freesync 2?

The major difference between FreeSync and FreeSync 2 is that the latter supports both dynamic refresh rate as well as high dynamic range (HDR) content. FreeSync 2 also ensures wider than standard RGB colour gamut and higher brightness.

Can I use AMD FreeSync monitor with Nvidia GPU?

Even though AMD Radeon GPUs and some FreeSync monitors support Adaptive Sync over HDMI, Nvidia says you'll need to connect your GeForce GPU to your FreeSync monitor using a DisplayPort cable to activate variable refresh rates.
