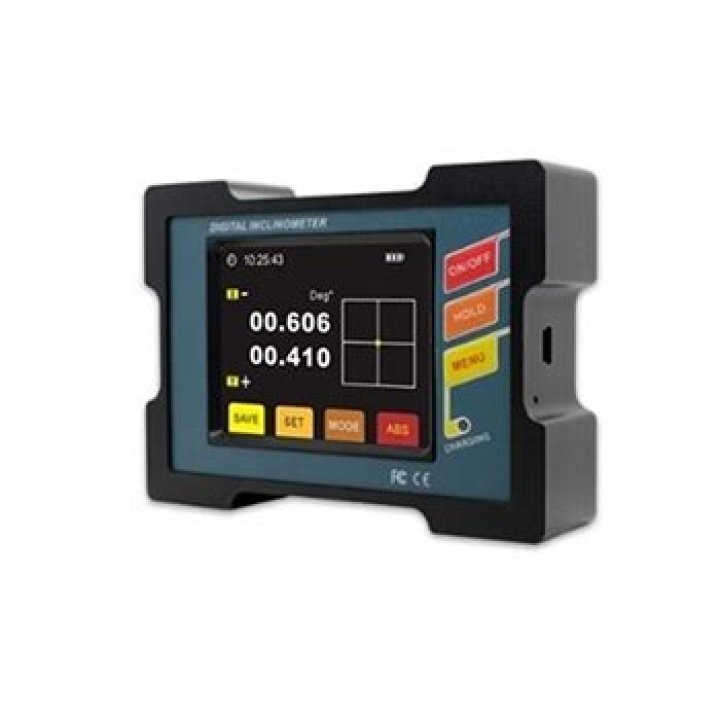

How do you calibrate a digital inclinometer?

1. The Digital Inclinometer needs to be calibrated after you replace the battery. At any time you can force a recalibration by holding the ON/OFF button for 6 seconds.
2. If you want to lock the reading while performing a measure- ment, simply press the HOLD.
3. 19.8°
4. Back view of Digital Inclinometer.
5. battery.

Likewise, people ask, how do you use a digital inclinometer?

EASY TO USE Place inclinometer near the joint to be measured; press the “alternate zero” button; move joint through its range; press the “hold” but- ton. Read range-of-motion.

Additionally, how do you use a digital protractor? “Relative measurement mode”

1. Step 1 – Place protractor on first angle. Place the digital protractor on the angle you wish to measure from.
2. Step 2 – Press “zero” button. The “zero” button will reset the angle on the display to zero degrees.
3. Step 3 – Place protractor on second angle.

Keeping this in view, what is digital inclinometer?

The Digital Inclinometer is a robustly constructed instrument designed for clear simple reading, the system is ideal where precision angle is required over a large range.

How do you make a clinometer?

Method 1 Making a Simple Clinometer

1. Fold an 8 by 8 in (20 by 20 cm) piece of paper into a triangle.
2. Tape a straight drinking straw to the triangle's longest side.
3. Punch a small hole next to the end of the straw.
4. Attach a string through the hole.
5. Tie a small weight to the bottom end of the string.

Related Question Answers

How is inclinometer used in range of motion?

The inclinometer is simple to use: place it near the joint to be measured; turn the dial until the scale reads zero; take the joint through its range; read the range-of-motion (in degrees) directly from the dial.

How can a clinometer be used to measure slope?

To measure slope, using a percent scale clinometer, sight parallel with the ground (upslope or downslope) to a target, aiming at a point on the target that is equal to the height of your eye above the ground.

How do you calibrate a mini protractor?

Put the unit's working surface on one surface, press "Calibrate" button, "0.00°" is displayed. Then move the unit to other surface to be measured, the displayed value will be the included angle of the two surfaces. Press "Calibrate" button for 3-5 minutes, it wilt change to the state of absolute measurement.

What is a digital protractor used for?

A digital protractor is a type of protractor which measures the angle automatically without the user having to read it from a scale. These protractors have a digital display which shows the angle on the screen.

Why is clinometer used?

A clinometer is a tool that is used to measure the angle of elevation, or angle from the ground, in a right - angled triangle. You can use a clinometer to measure the height of tall things that you can't possibly reach to the top of, flag poles, buildings, trees.

What is the function of clinometer?

An inclinometer or clinometer is an instrument used for measuring angles of slope (or tilt), elevation, or depression of an object with respect to gravity's direction.

Who made the clinometer?

William Abney

How do you read a clinometer?

Look through the level clinometer until you see the scale reads “0” on both sides. Point the clinometer at the top of the tree. Record the number from the right-hand scale that corresponds with your line of sight at the top of the tree. Without moving your head, tilt the clinometer down to the base of the tree.

What is a slope inclinometer?

Slope inclinometers are geotechnical instruments used to measure horizontal displacements along various points on a borehole. In either type, a casing with four orthogonal grooves is installed in a borehole in the ground or within a retaining wall. The grooves are designed to fit the wheels of the inclinometer probe.

Who uses a clinometer?

What Jobs Use a Clinometer? City planners, construction workers and civil engineers use clinometers to measure height and angles.

How do surveyors measure angles?

For these reasons, land surveyors rely on transits (or their more modern equivalents, called theodolites) to measure angles. A bearing is an angle less than 90° within a quadrant defined by the cardinal directions. An azimuth is an angle between 0° and 360° measured clockwise from North.

How does a tilt sensor work?

Working Principle A tilt sensor has a metallic ball that is designed to move the two pins of the instrument from the 'on' to the 'off' position, and vice versa, if the sensor reaches a pre-determined angle. Tilt sensors are the environment-friendly version of a mercury-switch.
