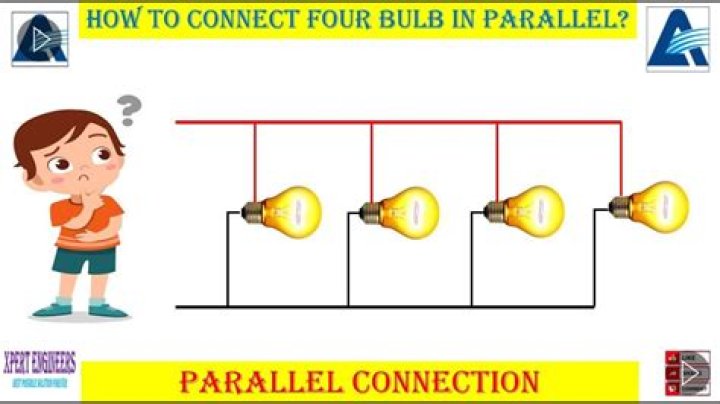

How do you connect series and parallel bulbs?

If a wire joins the battery to one bulb, to the next bulb, to the next bulb, to the next bulb, then back to the battery in one continuous loop, the bulbs are said to be in series. If each bulb is wired to the battery in a separate loop, the bulbs are said to be in parallel.

Herein, do you wire lights in series or parallel?

The switch and fuse line (live) must be connected by wire. Connecting electrical devices and devices such as fans, outlets, light bulbs, etc. in parallel is the preferred method of replacing series wiring. Parallel or series-parallel wiring method is more reliable than series wiring.

Secondly, what happens when bulbs are connected in series? In series, both bulbs have the same current flowing through them. The bulb with the higher resistance will have a greater voltage drop across it and therefore have a higher power dissipation and brightness. In parallel, both bulbs have the same voltage across them.

Similarly, you may ask, which bulb is brighter in series or parallel?

Increasing the number of bulbs in a series circuit decreases the brightness of the bulbs. In a series circuit, the voltage is equally distributed among all of the bulbs. Bulbs in parallel are brighter than bulbs in series. In a parallel circuit the voltage for each bulb is the same as the voltage in the circuit.

Do bulbs in parallel have the same brightness?

Increasing the number of bulbs in a series circuit decreases the brightness of the bulbs. Bulbs in parallel are brighter than bulbs in series. In a parallel circuit the voltage for each bulb is the same as the voltage in the circuit. Unscrewing one bulb has no effect on the other bulb.

Related Question Answers

Why are bulbs brighter in parallel?

When the bulbs are in parallel, each bulb sees the full voltage V so P=V2R. Since a bulb glows brighter when it gets more power the ones in parallel will glow brighter. See, the parallel combination of resistors reduces the effective resistance of the circuit. Hence it glows brighter.

What is the advantage of connecting bulbs in parallel How are bulbs connected in parallel?

Advantages of parallel circuits is that they ensure all components in the circuit have the same voltage as the source. For instance, all bulbs in a string of lights have the same brightness.

How do you connect 3 bulbs in parallel?

When the bulbs are connected in parallel, each bulb has 120 V across it, each draws 1/3 A, and each dissipates 40 watts. In this circuit, all bulbs glow at their full brightness. The total power dissipated in the circuit is three times 40, or 120 watts (or 3(1/3) A × 120 V = 120 W).

What is the difference between wiring in series and parallel?

Difference Between Series and Parallel Circuits. The major difference is that the series circuits have the same amount of current flow through all the components placed in it. On the other hand, in parallel circuits, the components are placed in parallel with each other. This circuit splits the current flow.

What happens to Watts in parallel?

When the bulbs are connected in parallel, each bulb has 120 V across it, each draws 1/3 A, and each dissipates 40 watts. In this circuit, all bulbs glow at their full brightness. The total power dissipated in the circuit is three times 40, or 120 watts (or 3(1/3) A × 120 V = 120 W).

Why do bulbs get dimmer in a series circuit?

Why bulbs in series are dimmer The bulbs are dim for two reasons: The current going through them is smaller because two bulbs in series have a higher resistance than a single bulb. Each charge only gives up some of its energy in each bulb, i.e. the p.d. across each bulb is smaller.

Are houses wired in series or parallel?

Generally house wired in parallel because, In a house, there are many electrical appliances that have to run independent of each other. This is not possible if all the appliances were connected in a series arrangement as there would be one switch that either switches all of them on or off.

Why are home appliances connected in parallel rather than in series?

When appliances are connected in a parallel arrangement, each of them can be put on and off independently. This is a feature that is essential in a house's wiring. Also, if the appliances were wired in series, the potential difference across each appliance would vary depending on the resistance of the appliance.

Is daisy chain series or parallel?

A common misconception when doing receptacle wiring is that, when you daisy-chain them in a circuit, you're wiring them in series. You're actually wiring them in parallel, and that's a whole different thing.

What is a series and parallel circuit?

In a series circuit, the sum of the voltages consumed by each individual resistance is equal to the source voltage. A circuit composed solely of components connected in series is known as a series circuit; likewise, one connected completely in parallel is known as a parallel circuit.

What is wiring in parallel?

Wiring electrical elements in parallel means that each will have its own distinct loop. Therefore, there are multiple paths through which current can flow.

Which is the positive wire on an LED?

If the LED does light, the LED lead that connects to the resistor is the positive end of the LED and the negative end of the LED is the lead that connects to the negative terminal of the battery.

Which circuit is better series or parallel?

In a series circuit, adding more components to the circuit increases resistance, meaning the electric current decreases. In a parallel circuit, having additional components does not increase resistance. Resistance can be reduced even further by having more pathways in a parallel circuit.

Is a 100 watt bulb brighter than a 60 watt bulb?

The wattage tells a buyer how much energy the bulb uses, not how bright is. For instance, a 100-watt light bulb is not necessarily brighter than a 40-watt light bulb. For example, a standard 60-watt light bulb produces around 800 lumens of light.

What happens if one bulb goes out in a series circuit?

In a series circuit, every device must function for the circuit to be complete. One bulb burning out in a series circuit breaks the circuit. In parallel circuits, each light has its own circuit, so all but one light could be burned out, and the last one will still function.

Is current the same in series?

Current: The amount of current is the same through any component in a series circuit. Resistance: The total resistance of any series circuit is equal to the sum of the individual resistances.

Does higher resistance mean brighter bulb?

The higher the resistance, the more jostling and the brighter the bulb. In fact what happens is that a higher resistance bulb decreases the current everywhere in the circuit. The slower moving charges transfer energy to the bulb at a lower rate and so the bulb is dimmer.

Which bulb will glow first in series?

Bulb B will glow first, followed by A & C (simultaneously). Note that it is the potential difference which matters, not which potential is higher or lower.

How is the brightness of the first bulb affected when the second bulb is connected?

It is because the resistance in the circuit due to the bulbs increases. With the electric potential difference remaining same, the current decreases and hence the bulbs glow dimly. In case of parallel circuit, both the two bulbs will glow with the same brightness. If one bulb gets fused, the others start fusing.

What makes a bulb brighter in a circuit?

High resistance bulbs are brighter in series circuits If two bulbs in series aren't identical then one bulb will be brighter than the other. Brightness depends on both current and voltage. Remember the current through both must be the same because the current is the same everywhere in a series circuit.
