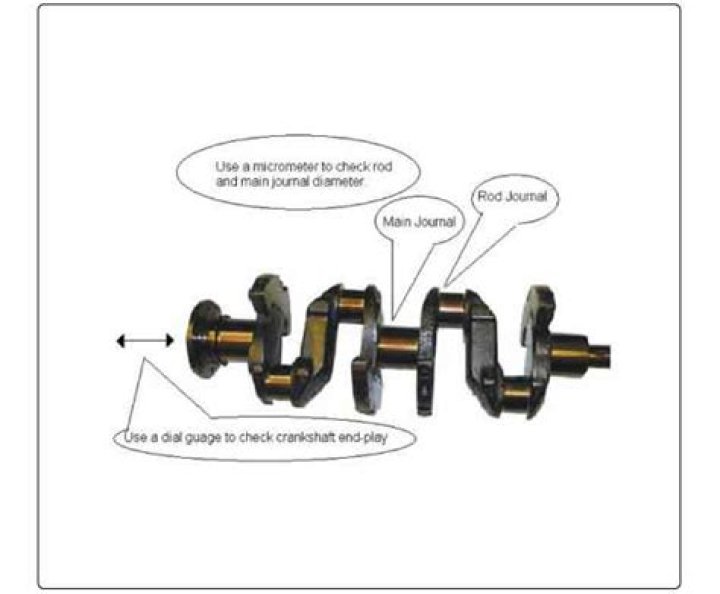

How do you inspect a crankshaft journal?

Measure the crankshaft using a dial gauge. Slowly rotate the crankshaft to measure the runout.

Measure outer diameter using the micrometer.

1. Measure the journal and pin outer diameters.
2. Measure the 4 places on the journal and on the pin.
3. If the measured value exceeds the limit, replace the crankshaft.

Thereof, how do I check my crankshaft bearing journal?

An outside micrometer is used to check for crankshaft journal wear. Check both around and along the journals for taper and out of round. Journals wear at the ends or in the middle. Check for roundness at two or more different points; they usually wear the most at (TDC) top dead center.

Secondly, how do you check bottom end bearing clearance? To check the bottom end bearing clearance. Turn the engine to BDC. Isolate the turning gear. Measure the clearance using feelers from within the crankcase.

Also to know, what are the journals on a crankshaft?

A crankpin, also known as a crank journal, is a mechanical device in an engine which connects the crankshaft to the connecting rod for each cylinder. It has a cylindrical surface, to allow the crankpin to rotate relative to the "big end" of the connecting rod.

How do you test a connecting rod?

Always inspect any connecting rod for bend and twist. A bend in the rod beam results in the centerline of the big-end bore being out of alignment with the center of the wrist pin bore. A twist in the beam throws the big-end bore out-of-plane with the small end.

Related Question Answers

How do you remove bottom end bearing clearance?

General Method for taking clearance using lead wire:

1. Turn the crank shaft to set the crank at TDC position.
2. remove locking and slacken the nut to lower the bottom half with bolts.
3. Three lengths of lead wires to be inserted or laid circumferential in the bottom half at three different places.

Does my crankshaft need grinding?

Upon initial inspection of the crankshaft, with the use of the micrometer, the machinist will determine what bearings need grinding. Indicators that a journal needs grinding include if the surface has wear and make it rough to the touch.

Do I need to polish my crankshaft?

Regarding polisher's comment "There is no point in polishing the crank unless you have it balanced. Polishing only makes it weaker. Same with connecting rods. Normally when polished, rods are shot peened after to give them back shear strength."

How much does it cost to have a crankshaft turned?

Turning a crank around here is about $150. They turn and polish it, check it for straightness, and straighten if needed.

How do you tell if your crank needs turned?

Generally speaking, if the crank shows less than 0.001-inch runout, it's probably fine. If the crank shows more than 0.001-inch runout, it needs to be either straightened or replaced.

What causes crankshaft damage?

Some of the underlying causes of a bad crankshaft are:

• A forging or casting flaw.
• Insufficient lubrication.
• Bearing wear.
• Loose bearing main caps.
• Distorted bearing bores.
• Improper bearing clearance.
• Bearing failure.

How much pitting is OK on a crankshaft?

It all depends on how severe the pitting is. Pitting that covers say less than 1/4 of the surface area probably won't be a problem for running an old engine at a show as long as the pits are subsurface (the reason for the polishing).

What tools is generally used to measure crankshaft bearing journals?

The dial bore gauge measures the inside of round holes, such as the bearing journals. This one tool can measure 2″ up to 6″ diameter holes. Both tools are needed in order to check the interior and exterior dimensions of the crankshaft, rods and engine block journals, as well as the thickness of the bearings themselves.

How do you turn a crankshaft by hand?

The most precise way to rotate the engine over by hand is to place a large socket on the front crankshaft bolt, attach a long ratchet wrench, and rotate the crank. The longer the wrench handle the more precise the movement.

How do you tell if you have a 400 crank?

Start simple! If the guy told you it has a 400 crank, check and see what type of balancer or flywheel is on it. That will be the easiest. If it turns out to have internal balance stuff, pull the pan and check the casting # on the crank.

How do you store a crankshaft?

Registered. Absolutely never lay a crankshaft on its side-not even for a few minutes. Crankshafts should always be stored standing straight up or hanging from a storage fixture. Laying a crank on its side will cause permanent damage.

How do you remove surface rust from crankshaft?

FWIW - You'll have to do a lot of rubbing with fine abrasive cloth / paper to remove any appreciable amount of metal from a crank journal. Grey should be plenty fine enough, WD 40 or light oil is good. The white Scotchbrite doesn't have any abrasive in it.

What are crankshaft bearings made of?

Copper-based alloys are classified into lead bronze and copper-lead alloys; Aluminum-based alloys are divided into high-tin alloys and low-tin alloys. Aluminum-based alloys are currently the most widely used in crankshaft bearings of internal combustion engines.

How do you remove aluminum from a crankshaft?

Quote: You can drop the crank with the aluminum in some muriatic acid and let it sit a few hours and the acid will dissolve every bit of the aluminum and leave the steel of the crankshaft untouched and looking like a brand new one. The acid will dissolve aluminum but not steel.

What is the limit of out of roundness of crankshaft journals?

Maximum allowable out-of-round is usually around 0.000118-inch or so (check the make/model engine specs). Next, measure each rod journal diameter at several radial locations on each rod journal.

What is a main journal crankshaft?

A journal is the part of a shaft that rotates inside a bearing. As can be seen above, there are two types of journal on a crankshaft - the main bearing journals form the axis of rotation for the crankshaft, and the connecting rod journals are secured to the ends of the connecting rods, which run up to the pistons.

What is the difference between camshaft and crankshaft?

While the camshaft helps your engine create power, the crankshaft takes that power and gives it to your vehicle. With big words, it converts reciprocating motion (the up and down of the pistons) into rotational motion (the spinning of the camshaft into the transmission).

What are the types of crankshaft?

The crankshaft There are two types of crankshaft, the monolithic type (Fig. 8.1), used for multi-cylinder engines, and the assembled type (Fig. 8.2) fabricated from separate elements, which is mainly used for motorcycles.

What is the working of crankshaft?

Crankshaft. The crankshaft is a moving part of the internal combustion engine (ICE). It's main function is to transform the linear motion of the piston into rotational motion. The pistons are connected to the crankshaft through the connecting rods.

Which material is used for crankshaft?

MATERIAL OF THE CRANKSHAFT: Crankshaft is usually made by steel. Generally medium-carbon steel alloys are composed of iron and contain a small percentage of carbon (0.25% to 0.45%), along with combinations of several alloying elements, the mix of which.

How does a crankshaft look like?

A crankshaft is a rotating shaft which (in conjunction with the connecting rods) converts reciprocating motion of the pistons into rotational motion. Crankshafts are commonly used in internal combustion engines and consist of a series of cranks and crankpins to which the connecting rods are attached.

What causes crankshaft bearings to go bad?

Crankshaft bearings can wear out due to: excessive heat (if the oil doesn't provide sufficient cooling) drying out due to oil leakage, blockage or otherwise poor circulation (also sometimes caused by incorrectly sized or fitted bearings) metal-on-metal contact (as a result of drying out from poor oil flow)

Where is the crankshaft located?

The location of the crankshaft position sensor can vary from one vehicle to another. Obviously it must be close to the crankshaft, so it is most often located on the front underside of the engine. It can usually be found mounted to the timing cover. Sometimes it may be mounted at the rear or the side of the engine.
