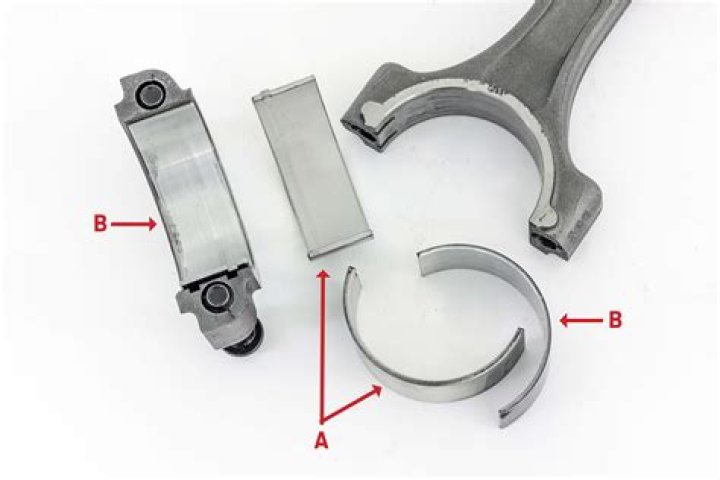

How do you install rod bearings?

How to Replace Rod Bearings

Remove the connecting rods from the pistons and crankshaft, if they are not already out.
Remove the old bearings.
Clean the bearing surface of the rods on either end with a lint free rag.
Slide one bearing into the end of the rod's big end and one bearing into the end cap.

Also asked, can you install a connecting rod backwards?

Rods can be installed backwards, many times machien shops install a rod backwards relative to the piston notch, so a novice engine builder installs the pistons correctly, and the rod is on the crank the wrong way.

One may also ask, what does a bad rod bearing sound like? Rod knock means there is too much clearance due to the bearing wear, causing the rod big-ends to beat against the crankshaft. Therefore, rod knock is a huge symptom of bad engine bearings and means a bad engine bearing sounds like a knocking sound.

Beside this, can I just replace rod bearings?

You can replace the main and rod bearings while engine is still in the car. You do them one at a time, I have done it several times.

How do I know what size rod bearings I need?

Measuring the inside diameter of a main or rod bearing will require a dial bore gauge. The best ones to use are accurate down to 0.0001-inch. With these two tools you can quickly determine the clearances in any engine. Measuring bearing clearance is only valuable if the numbers are accurate so use quality tools.

Related Question Answers

Do you install rod bearings dry?

The rod bearings are installed the same way as the crank mains but since the crank has to be rotated for access to the rod fasteners, the pistons and rods are assembled in pairs by journal. - Assemble dry with Plastigage, torque the fasteners, check the side clearance, disassemble and check the Plastigage clearance.

What are the symptoms of a bad rod bearing?

Symptoms of Worn Out Engine Bearings

Knocking Noises - If your car engine knocks upon starting the car, there is a good chance that your engine bearings are worn and need to be replaced.
Low Oil Pressure - Many times when a bearing is beginning to fail (or has failed), you will noticed signs of decreased oil pressure.

How long does it take to replace rod bearings?

around 8 hours

What's the difference between rod bearings and main bearings?

Rod bearings are inserted between the rod and the crankshaft. Main bearings are present between the crankshaft and the block.

How much is it to fix a rod bearing?

On average, expect to spend between $2,000-$3,000 for both parts and labor. Usually, the job consists of replacing the seals, gaskets, connecting rod bearings, cylinder head bolts, and flushing out the engine and cooler lines.

What happens if a connecting rod cap is installed backwards?

Fact is, you won't get the caps on and fully seated, with the rods on backward, as the bearing riding on the crank radius pulls the piston side bearing away from the crank journal. It would be hard to miss in practice.

Can you change main bearings without removing crank?

You can, but I wouldn't do it. If the bearings are worn enough to need replacement, the crankshaft journals will be worn also. There is no way to measure the journals without removing the crankshaft. If you're putting new bearings on a worn crankshaft, you may as well not bother, you're only doing half the job.

Do you put assembly lube under main bearings?

Assembly lubes are one of the most important parts of an engine build. A thin coating of assembly lube should be applied on all high-friction, high-load surfaces including rod, main and cam bearings.

Do you put assembly lube on rod bearings?

Assembly lube is good, but do keep in mind that most assemly lubes require an oil change very soon after getting the motor fired up and running. Whatever you do, JUST coat the insides of the bearings, where it rides on the crank journals. Do not coat the backsides that fit into the rod and cap.

What is rod and main bearings?

A main bearing has a hole for passing oil to the feed holes in the crankshaft. Connecting rod bearings provide rotating motion of the crank pin within the connecting rod, which transmits cycling loads applied to the piston. Connecting rod bearings are mounted in the Big end of the connecting rod.

Where do main bearings go?

In a piston engine, the main bearings are the bearings which hold the crankshaft in place and allow it to rotate within the engine block. Main bearings are usually plain bearings or journal bearings, held in place by the engine block and bearing caps.

What is a main bearing cap?

The engine's oil pump sends pressurized oil through holes drilled through the crankshaft to the bearing surface. They're designed to allow a thin film of oil to flow through the clearance between the bearing and the crankshaft journal.

What are the main bearings in an engine?

Main bearings are mounted in the crankcase. A main bearing consists of two parts: upper and lower. The upper part of a main bearing commonly has an oil groove on the inner surface. A main bearing has a hole for passing oil to the feed holes in the crankshaft.

Can you replace crankshaft bearings?

Replacing main bearings is a critical part of any engine rebuild. They are usually replaced along with other internal parts while the engine is out and completely disassembled. However, it is possible on some engines, to replace them with the engine still in the vehicle.
