How do you know if a motor is AC or DC?

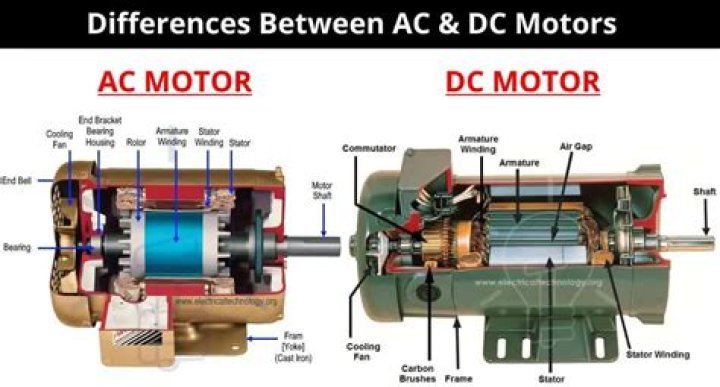

Look for the stator core construction and rotor. If there is no commutator, then it is a AC motor. If there is a commutator and brushes, it may be either a DC motor or an AC commutator motor (Universal motor).

Also asked, are 3 phase motors AC or DC?

All DC motors are single phase, but AC motors can be single phase or three phase. AC and DC motors use the same principle of using an armature winding and magnetic field except with DC motors, the armature rotates while the magnetic field doesn't rotate.

One may also ask, how can you tell if a motor is 3 phase? Second you can simply look at the number of electrical leads coming out of the motor. If your motor has three black leads and a green lead then it is likely three phase. The three hot leads are usually labeled U, V and W and the final lead is labeled ground. Running a three phase motor on single phase power is simple.

Beside this, can a AC motor run on DC?

An AC motor cannot run on an DC SUPPLY.. The DC series motor can run on both AC &DC supply . It is also called as an Universal motor.

How many types of electric motors are there?

three types

Related Question Answers

What is the types of motor?

The main types are DC motors and AC motors, the former increasingly being displaced by the latter. AC electric motors are either asynchronous or synchronous. Once started, a synchronous motor requires synchronism with the moving magnetic field's synchronous speed for all normal torque conditions.

What are the types of electric motors?

The types of Electric motors are available in three main segments like AC motor, DC motor, & special purpose motors.

How do you know if a motor is inverter duty?

CT/VT. CT stands for Constant Torque and VT stands for Variable Torque. If these ratings are on your motor nameplate it typically means your motor is rated for inverter use.

How many amps does a 1.5 hp motor draw?

Common Horsepower to Amps Conversions

Horsepower	Amps	Voltage
.75 HP	5.18 A	120 V
1 HP	6.91 A	120 V
1.25 HP	8.63 A	120 V
1.5 HP	10.4 A	120 V

How can you tell if a motor is VFD rated?

1. If the Motor is pre-EPAct (1992), it should be run on VFDs only with careful consideration. Motors made during that time were not made for VFD use, but if they are VFD rated, will be okay. Class F insulation or higher is suitable for VFD use, but VFDs may have no more than a 2:1 Constant Torque ratio.

Which is more efficient AC or DC motor?

AC induction motors use a series of coils powered and controlled by AC input voltage. Consequently, AC motors are less efficient than DC motors. In fact, the DC motor is 30% more efficient than AC motors due to the secondary magnetic field being generated from the permanent magnets rather than copper windings.

Why is AC motor preferred over DC?

Answer: Ac is more preferred than dc because it is easy to maintain and change the voltage of ac for transmission and distribution purpose. Plant cost of ac transmission is much lower compared to dc transimission. When fault occurs it is easy to interrupt ac supply.

Which is better AC or DC motor?

AC motors are generally considered to be more powerful than DC motors because they can generate higher torque by using a more powerful current. However, DC motors are typically more efficient and make better use of their input energy.

Can you have 3 phase DC?

DC does not alternate. So this means, 3-phase DC doesn't make sense nor is it possible. Brushless DC motors usually are actually 3-phase motors, as it is actually not possible to make a brushless motor running on DC. However it uses that name as it is powered by DC, but the driver outputs AC.

What happens if DC supply is given to AC motor?

When A.C. supply is given to a D.C. motor: 1) D.C. supply will not produce rotating magnetic field , hence motor will not run. 2) If rated voltage is given (in D.C. form), there will be only resistance of the winding will affect the D.C. current , whereas in case of a.c. supply, impedance will affect the A.C. current.

What is a 3 phase DC motor?

Target Motor Theory. A brushless DC (BLDC) motor is a rotating electric machine, where the stator is a classic 3-phase stator like that of an induction motor, and the rotor has surface-mounted permanent magnets; see Figure 2-1.

Are Tesla Motors AC or DC?

IMHO, AC Propulsion (Tesla Motors) uses AC because a mechanically commutated DC motor that meets the high "turn down" ratio of a vehicle application is more complex than an electronically commutated AC motor.

Which is best AC or DC?

DC is more efficient than AC power and has lower line losses than AC lines. With AC, the current travels on the skin of the conductor while with DC, the current flows throughout the entire conductor and not just the conductor skin. DC therefore has lower skin losses in the line.

Are all DC motors single phase?

All DC motors are single phase, but AC motors can be single phase or three phase. AC and DC motors use the same principle of using an armature winding and magnetic field except with DC motors, the armature rotates while the magnetic field doesn't rotate.

What would happen if you tried to run a DC motor on AC power?

When A.C. supply is given to a D.C. motor: 1)In case of Series connection of armature winding and field winding , it may run. 2)But, In case of parallel connection , it won't rotate at all and will start humming and will create vibrations, as a torque produced by positive and negative cycle will cancel out each other.

Can I plug a 12v into 110v?

Electrical systems based on 12-volt batteries can be used to supply 110-volt AC (alternating current) through the use of a voltage inverter. These devices can provide normal house current from a variety of 12-volt DC (direct current) sources, including your automobile cigarette lighter.

What is a universal AC DC motor?

The universal motor is a type of electric motor that can operate on either AC or DC power and uses an electromagnet as its stator to create its magnetic field. It is a commutated series-wound motor where the stator's field coils are connected in series with the rotor windings through a commutator.

What is the voltage of a DC motor?

Operating Voltage. Typical DC motors may operate on as few as 1.5 Volts or up to 100 Volts or more. Roboticists often use motors that operate on 6, 12, or 24 volts because most robots are battery powered, and batteries are typically available with these values.

Will a 12v motor run on 9v?

No. You are applying too much voltage to the motor. This will cause too much current to flow, and in turn, burn out the motor. Others have suggested putting the two 9V batteries in parrelel, but that is not good either, as the 12V moter will get an under-voltage, and not run properly either.

Is a washing machine motor AC or DC?

Step 1: The Washing Machine Motor It is often referred to as an AC series motor. The universal motor is very similar to a DC series motor in construction but is modified slightly to allow the motor to operate properly on AC power.

Can 1 hp motor run on inverter?

The inverter cannot run 1 HP motor. Motor offers 1 KVA load, with 750 W active power. Motor offers 1 KVA load, with 750 W active power.

Are vacuum motors AC or DC?

A universal motor is typically used as suction motor across vacuum cleaners. The universal motor is a series DC-motor that is specially designed to operate on alternating current (AC) as well as on direct current (DC). Universal motors have high starting torque, operate at high speed, and are lightweight.

Do AC motors have brushes?

AC induction motors have no brushes and have a much longer life expectancy. DC motor speed is controlled by varying the armature current, while AC motor speed control is achieved by varying the frequency of the alternating current, often with a variable frequency drive(VFD).
