How do you make an investment cast?

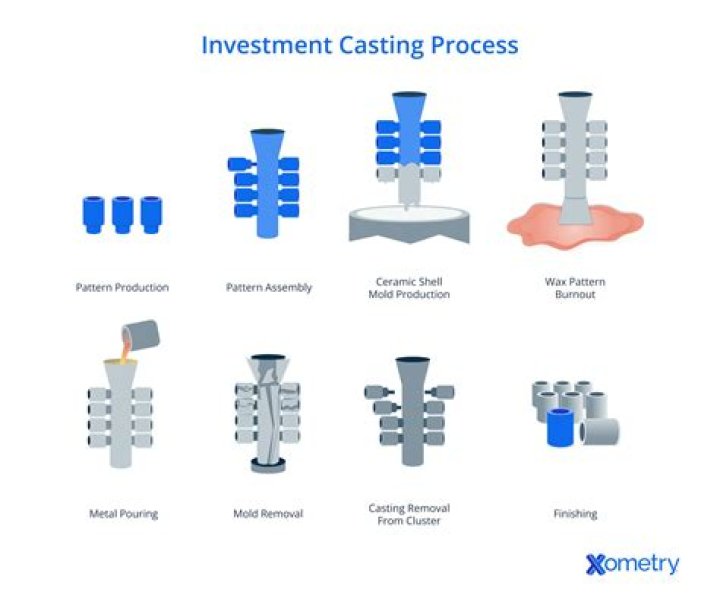

Investment casting is a manufacturing process in which a wax pattern is coated with a refractory ceramic material. Once the ceramic material is hardened its internal geometry takes the shape of the casting. The wax is melted out and molten metal is poured into the cavity where the wax pattern was.

Likewise, people ask, how do I cast an investment at home?

1. Step 1: 3d Printed Parts, Sprue, and Vents.
2. Step 2: Securing the Part in Your Tub.
3. Step 3: Mixing and Pouring the Investment.
4. Step 4: Example of Too Much Plaster, Not Enough Water.
5. Step 5: Drying the Mold and Burn-out Procedure.
6. Step 6: Bury the Molds in Sand to Insulate and Protect.
7. Step 7: The Melt and Pour!

Beside above, what is another name for investment casting? An introduction to the investment casting process. Investment casting, also known as precision casting or lost-wax casting, is a manufacturing process in which a wax pattern is used to shape a disposable ceramic mold.

Similarly, why is it called investment casting?

Overview of Investment Casting Molten metal is then poured into the mold's cavity, essentially replacing the cavity's wax with metal. It's called “investment casting” because the mold pattern used in this casting process becomes “invested” with the liquid refractory material.

What is the difference between die casting and investment casting?

Investment Casting VS Die Casting. Investment casting and die casting are the two major types of casting. Investment casting methods is injects wax into an aluminum cavity. Die casting is the process in which molten metal is forced into a mold cavity with high pressure.

Related Question Answers

How long is investment casting?

Castings can be made from an original wax model (the direct method) or from wax replicas of an original pattern that need not be made from wax (the indirect method). The following steps describe the indirect process, which can take two to seven days to complete.

What are the advantages of investment casting?

Advantages of Investment Casting

• Smooth Finish. Investment casting uses a ceramic mold that can produce a much smoother finish, typically averaging 125 RA surface finish as cast.
• Faster Production.
• Tight Tolerances.
• Affordable Tooling.
• Vast Size Range.
• Material Variety.

What products are made from investment casting?

Many materials are suitable for investment casting; examples are stainless steel alloys, brass, aluminium, carbon steel and glass. The material is poured into a cavity in a refractory material that is an exact duplicate of the desired part.

Why wax is used in investment casting?

Investment casting is also known as lost wax casting, because in the beginning wax model is created as per your desired casting pattern, then liquid metal is inserted into that mold and at last the wax model is melted and wipe-out. The metal gets harden and get the desired shape similar to casting pattern.

What is die casting process?

Die casting is a metal casting process that is characterized by forcing molten metal under high pressure into a mould cavity. Most die castings are made from non-ferrous metals, specifically zinc, copper, aluminium, magnesium, lead, pewter, and tin-based alloys.

Is casting additive manufacturing?

Reviving a Staple: How Additive Manufacturing Changes the Investment Casting Process. Investment casting is a long standing legacy in manufacturing. Now, additive manufacturing is shaking up the process of investment casting, bringing a new streamlined approach to foundries to create intricate metal parts.

What type of wax is used for investment casting?

It has been used in various forms from decades; earlier beeswax was used to form patterns necessary for the casting process. Today, more advanced waxes are used which are as follows, Filled Pattern waxes. Un-filled or Non-filled Pattern waxes.

How is lost wax casting done?

Lost-wax process, also called cire-perdue, method of metal casting in which a molten metal is poured into a mold that has been created by means of a wax model. Once the mold is made, the wax model is melted and drained away.

How do you make an investment plaster?

Instead, try mixing equal parts plaster, sand and clay powder, which you can generally find at or order through art supply stores. The addition of the silicates in clay creates a stronger investment that holds up to heat. Mix an experimental batch with equal parts of the plaster, sand, clay and water.

What is investment casting PDF?

INVESTMENT CASTINGS. Investment casting, also known as lost wax casting, is a precision casting process used to create metal parts from almost any alloy, and is typically used to create complex, thin-wall castings. Since 1959, Bimac has been one of the leading investment casting providers in the Midwest.

What are the advantages of metal casting?

Its advantages are: low material prices, easy access, adaptability, and a wide range of applications, whether it is single or large-scale production. Metal casting, also known as die casting. Unlike sand casting, which uses a metal mold, the mold can be reused hundreds of times.

What materials are used in investment casting?

Many materials are suitable for investment casting; examples are stainless steel alloys, brass, aluminium, carbon steel and glass. The material is poured into a cavity in a refractory material that is an exact duplicate of the desired part.

What is investment casting used for?

Investment casting, also known as precision casting or lost-wax casting, is a manufacturing process in which a wax pattern is used to shape a disposable ceramic mold. A wax pattern is made in the exact shape of the item to be cast. Unlike sand casting, investment casting does not require a draft.

Why is it called lost wax casting?

Investment casting is also known as lost wax casting, because in the beginning wax model is created as per your desired casting pattern, then liquid metal is inserted into that mold and at last the wax model is melted and wipe-out. The metal gets harden and get the desired shape similar to casting pattern.

What is mean by investment casting?

Investment casting is a manufacturing process in which a wax pattern is coated with a refractory ceramic material. Once the ceramic material is hardened its internal geometry takes the shape of the casting. The wax is melted out and molten metal is poured into the cavity where the wax pattern was.

What is casting and its process?

Casting is a manufacturing process in which a liquid material is usually poured into a mold, which contains a hollow cavity of the desired shape, and then allowed to solidify. Casting is most often used for making complex shapes that would be otherwise difficult or uneconomical to make by other methods.

What is investment powder made of?

Gypsum-bonded investment materials are made up of fine particles of gypsum and silica which results in smooth surfaces of the casting. Gypsum-bonded investment materials are easy to mix and handle and have a smooth consistency mix.

What is investment material?

Investment materials are used to make a mold into which the liquid metal can be poured during the casting process. A commonly used binder is gypsum, while different silica structures, particularly cristobalite, are used as the refractory material.

When was lost wax casting invented?

6th century BC

Can you use plaster of Paris for lost wax casting?

Introduction: How to Make a Mold for Lost Wax Casting This is the cheapest and easiest method of preparing a mold for lost wax casting. All you need is your wax sculptures with sprues, plaster of paris, water and containers.

What is precision investment casting?

Investment casting (or lost wax casting) refers to the formation of ceramic around the wax patterns to create a multi or single part mold to receive molten metal. Precision investment castings can achieve exceptional accuracy for products both small and large, in a wide range of materials.

What is gravity die casting?

Aluminium Gravity Die Casting. Gravity Die Casting is a permanent mould casting process, where the molten metal is poured from a vessel or ladle into the mould. The mould cavity fills with no force other than gravity, filling can be controlled by tilting the die.

What is casting and types of casting?

The Metal Casting or just Casting process may be divided into two groups: Hot Forming Process. Examples are Centrifugal casting, Extrusion, Forging, Full mold casting, Investment casting, Permanent or Gravity Die casting, Plaster mold casting, Sand Casting, Shell Mold casting.

How does wax casting work?

Lost-wax process, also called cire-perdue, method of metal casting in which a molten metal is poured into a mold that has been created by means of a wax model. Once the mold is made, the wax model is melted and drained away.

What is ceramic shell casting?

Ceramic Shell Casting Process. The ceramic shell casting process starts with wax injection. A die, or tool, is filled with wax, injected in a liquid or a paste form, so it flows into the detail of the mold. Next, the wax tree is coated in a slurry, a mixture of liquid binder and flour refractory materials.

What is die cast made of?

Most die castings are made from non-ferrous metals, specifically zinc, copper, aluminium, magnesium, lead, pewter, and tin-based alloys. Depending on the type of metal being cast, a hot- or cold-chamber machine is used.
