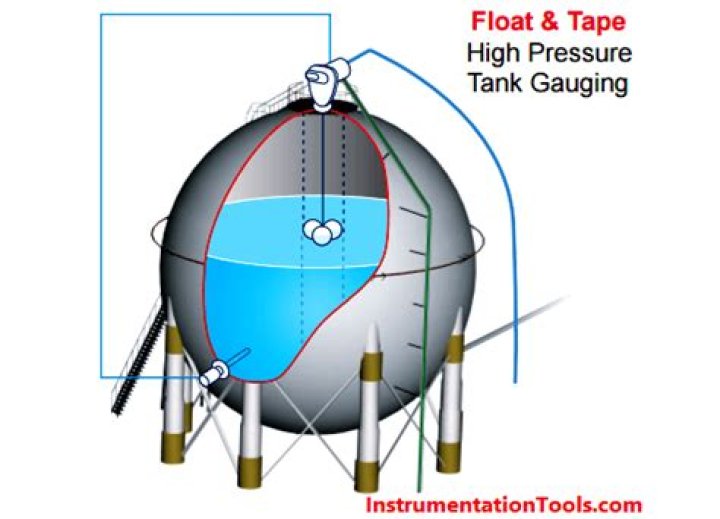

How does a tank gauging system work?

Hydrostatic tank gauging utilizes up to three pressure sensors and one or more temperature elements. The hydrostatic pressure (liquid head) is measured; as the height increases the pressure increases as well. If a single pressure sensor is used, a manual density measurement is required for an inventory calculation.

Furthermore, how do tank level gauges work?

The gauge consists of a vertical chamber that fills with the fluid from the tank or vessel. The level of fluid in the chamber matches the fluid level in the tank, and the level is dictated by the interface line between the liquid in the chamber and the vapor in the chamber.

Also Know, what is radar tank gauging system? Radar tank gauges are “downward-looking” measuring system installed on the tank roof. Operating on the time-of-flight method, they measure the distance from the reference point (process connection) to the product surface.

One may also ask, what is a tank gauging system?

Tank gauging means liquid measurement in large storage tanks to determine product volume. Rosemountâ„¢ Tank Gauging System ensures accurate level, temperature, and pressure measurements for inventory control, oil movement and overfill prevention, securing efficient operations.

What is the best method for sensing the level of a corrosive liquid in a tank?

Conductivity or Resistance

Conductive sensors are used for point-level sensing conductive liquids such as water and highly corrosive liquids. Simply put, two metallic probes of different lengths (one long, one short) insert into a tank.

Related Question Answers

What is flow and level sensor?

Flow and Level switches for measuring liquids or dry materials, with current, millivolt or relay outputs.

How do you measure water level accurately?

Top 6 Methods to Measure or Monitor Fluid Levels

1. Continuous float level transmitters.
2. Differential pressure transmitters.
3. Load cells.
4. Radar level transmitters.
5. Radio Frequency (RF capacitive level transmitters)
6. Ultrasonic level transmitter.

How do float level sensors work?

Float level sensors are continuous level sensors featuring a magnetic float that rises and falls as liquid levels change. The movement of the float creates a magnetic field that actuates a hermetically sealed reed switch located in the stem of the level sensor, triggering the switch to open or close.

How is DP transmitter level calculated?

DP transmitter level measurement calculation. We base differential pressure level measurement in open tanks on the Pascal equation for hydrostatic pressure. Therefore pressure (P) equals the liquid's density (ρ) times acceleration due to gravity (g) times the liquid column's height (h), or P = ρ * g * h.

What is a tank varec?

Tank gauging is the generic name given to the measurement of liquids (product) in bulk storage tanks with the aim of quantifying how much product is in the tank, “gauging the contents of a tank”.

What is Innage and ullage?

The tape is used to measure ullage or innage (liquid level). The ullage is the distance from the reference point of the tank down to the liquid surface. The tank level is then calculated by taking the reference height minus the measured ullage. Direct level measurement (innage) can also be carried out with a hand tape.

What is a stilling well in a tank?

What Are Stilling Wells? Stilling wells are cylinder-shaped chambers that are connected to, but isolated from, a channel's main flow of water. Capturing a portion of water inside of a stilling well helps to quiet the interfering turbulence found in the main channel.

How is Ullaging done?

Ullage is measured when the content of a tank is highly viscous and if the tank is filled to the maximum. The sounding pipe is open from the bottom which allows the liquid filling up the pipe and facilitating it to have the same level as of the tank.

What is a varec?

1 : seaweed. 2 : the calcined ashes of coarse seaweeds used for the manufacture of iodine, potash, and formerly soda : kelp sense 2.

What is Servo gauge?

Servo type gauge level transmitters are unique in that this level sensor uses the principle of displacement to measure level. The device makes contact with the product using a displacer connected to a measured wire around a wire drum.

What is the use of level transmitter?

Level transmitters provide continuous level measurements over the range of the system rather than at a single point and produce an output signal that directly correlates to the level in the vessel. The output signal generated can be used to display the depth or to actuate control functions.

What is a tank datum plate?

Datum Plate - A level metal plate located directly under the reference gauge point to provide a fixed contact surface from which liquid depth measurement can be made. Datum Point - The point from which all measurements for the calibration of the tank are related.

What is a radar gauge?

Radar tank gauging is currently one of the most popular level measurement methods used in the fuel (gasoline) storage industry. Radar level measurement was originally developed for use on crude oil carriers because there was a requirement to be able to measure the quantity of oil by non invasive means.

How does a radar level transmitter work?

How do radar level transmitters work? Radar level transmitters work with high-frequency radar pulses which are emitted by an antenna and reflected from the product surface. The time of flight of the reflected radar pulse is directly proportionate to the distance traveled.

How does a Pneumercator work?

Pneumercator hydrostatic tank gauging systems operate on the principle that the pressure at the bottom of the tank varies with the liquid head. The pressure balance which is equal to the tank liquid height is converted into tank contents and indicated on a calibrated dial.

What type of temperature sensor is used in tank gauging system?

Hydrostatic tank gauging utilizes up to three pressure sensors and one or more temperature elements. The hydrostatic pressure (liquid head) is measured; as the height increases the pressure increases as well. If a single pressure sensor is used, a manual density measurement is required for an inventory calculation.

What is an Enraf level gauge?

The Enraf Servo Gauge 854 Automatic Tank Gauge (ATG) has become an industry standard all over the world. The gauge is multi-functional: besides liquid level, it integrates density and (free) water interface level measurement with the highest accuracy available in the marketplace.

What is Honeywell Enraf?

Page Content. ?Honeywell Enraf designs, produces, commissions, services and maintains precise instruments for all tanks - large and small, heated and refrigerated, spherical and cylindrical, fixed and floating roof, above and underground, used for crude products and chemicals and in the Middle East and the Arctic.

What is manual gauging?

Basically, manual tank gauging involves taking the tank out of service every week for 36 hours or more while you measure the tank's contents to see if changes in the tank's volume indicate a possible leak. Manual tank gauging can be used only on tanks 2,000 gallons. or smaller.

What is the difference between Innage and ullage?

The ullage is the distance from the reference point of the tank down to the liquid surface. The tank level is then calculated by taking the reference height minus the measured ullage. Innage measurement is the determination of the height of the liquid in the tank.

How do you read a gas tank clock gauge?

Gauge mounts on top of tank and is activated by a float connected to a cable. Readout is on a 12 hour clock face. Small hand = feet or meters Large hand = inches or centimeters. Gauge can be read 20-30 feet away to within 1/8 ".

What ullage means?

: the amount that a container (such as a tank or cask) lacks of being full.
