How far can you run power over Ethernet?

Distance Challenges with Power over Ethernet

The maximum distance for Power over Ethernet (or any network data transmission) is 100 meters or 328 feet.

Thereof, how do I run Ethernet over long distance?

Depending on your environment and application, there are three ways to extend your Ethernet LAN beyond the nearest closet.

1. LAN extension over fiber optic cable with media converters.
2. LAN extension over existing copper cabling with Ethernet extenders.
3. Wireless Ethernet extension.

Subsequently, question is, how far can you run cat5e PoE? 100 meters

In respect to this, how far can I run a PoE camera?

Only when using a PoE switch and a PoE enabled camera the maximum distance equals the maximum cable length: 100 m. As soon you use a midspan and/or splitter you have to check the maximum distance for the number of cables used to reach the Ethernet client from Ethernet source.

Does PoE work over Cat 5?

The original IEEE PoE standard (802.3af-2003) specifies how to deliver up to 15.4W of DC power per switch port to each device at up to 33 feet over Category 3, 5, 5e and 6 Ethernet cables.

Related Question Answers

Why is Ethernet limited to 100 meters?

The length is exactly 100 metres as (doing the maths) anything over 100m will be long enough for an ethernet device to transmit a frame and not hear the collission detect back-ff from the far end. so anything over 100m will be subject to late-collisions.

Do Ethernet couplers slow down speed?

Does an Ethernet coupler reduce speed? Basically, an Ethernet coupler does not impact the speed of an Ethernet cable.

What is the fastest Ethernet cable?

Cat 8, the next generation of Ethernet cables, is on the horizon but for the time being, Cat 7a (Cat 7 “augmented”) is the highest-performing Ethernet cord available. Like the Cat 6a and Cat 7 cables, the Cat 7a supports speeds up to 10,000 Mbps, but the max bandwidth is much higher at 1,000 MHz.

Can I extend an Ethernet cable?

UTP Ethernet Extenders

Network administrators and system integrators can also extend Ethernet using Ethernet Extender units. Networking units such as the LRP-101-UKit make it possible to extend an Ethernet links using UTP cable or 1-pair cable such as telephone cable.

How do I extend my WiFi range?

1. Select a Good Place for Your Router. Not all places are equally suitable for your router.
2. Keep Your Router Updated.
3. Get a Stronger Antenna.
4. Cut Off WiFi Leeches.
5. Buy a WiFi Repeater/ Booster/ Extender.
6. Switch to a Different WiFi Channel.
7. Control Bandwidth-Hungry Applications and Clients.
8. Use the Latest WiFi Technologies.

How do I extend my wired Internet connection?

Homeplug adapters can be used to extend a wired and wireless network . Generally they work in pairs but you can use more than 2 on a network. They plug into the mains socket and usually provide an Ethernet connection on each end. You simply plug the Ethernet cables into the adapters at each end.

How far can you run cat6?

Maximum Cable Segment Distances for Cat6 or Cat6a Cable

In 10/100/1000BASE-T applications, the maximum cable distance of a Cat 6 cable is 100 metres. However, Category 6 cable segment distance drops to a maximum run length of 55 metres when used for 10GBASE-T.

Can you daisy chain PoE cameras?

You can only daisy chain ANALOG PTZ cameras. POE IP cameras can utilize POE switches for a similar effect. Up to 32 Analog PTZ cameras can be daisy chained for up to a maximum of 4,000 FT.

What is the maximum distance for PoE?

100 meters

Can you run PoE over fiber?

What Does Optical Fiber Bring to Power-over-Ethernet? The limits of copper PoE cabling have led many to ask if optical fiber can pick up where copper leaves off, or at the very least, aid in extending the data transmission of copper cable beyond its 100 meter limits. And the answer is: yes.

Are PoE cameras better?

POE cameras provide the best image quality of all the cameras, because ethernet supports higher bandwidth than a wireless connection. If you need a really high resolution camera that lets you zoom in to capture facial features or license plates from far away, POE cameras are the way to go.

How do you power a PoE camera?

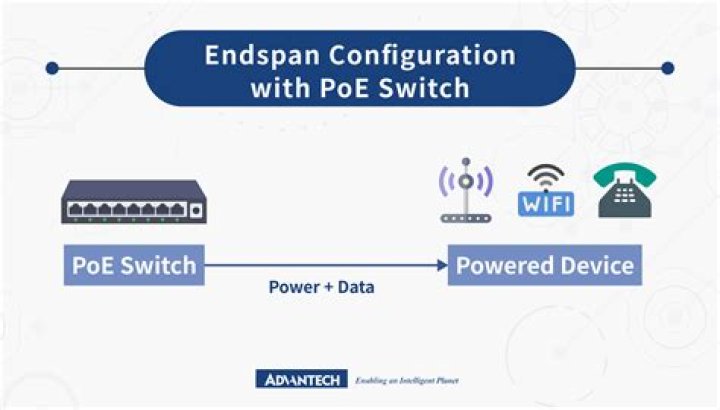

Set up your PoE switch to power the IP camera

Simply connect your PoE switch to your router using a short Ethernet cable and position it next to the router. Next, take an Ethernet cable and plug one end into one of the PoE ports on the switch, feeding it to where the camera will be sited.

Can I use cat6 for PoE?

Yes, any cat6 cable will support all PoE standards. The cable doesn't care, it's just copper made to a spec.

What is the maximum distance for IP camera?

Technically regular POE IP security cameras have max limitation of 300 feet of network wire to still get a signal using pure copper wire. However, it is always safer to estimate a max of 250 feet because the type of wire being used cannot always be guaranteed to be pure copper.

What is the best Ethernet cable for security cameras?

Cat5e cable

What is the best PoE security camera system?

The Hornbill 4K PoE Security Camera System is another excellent choice. You can expand it to up to 8 cameras, which is a great extra feature. You can also install a 10TB internal hard drive for massive amounts of storage. The warranty is also very robust, and the lens angle is relatively wide.

Can you plug PoE into laptop?

No, it is not safe to plug an ordinary PC into a passively-powered 24V PoE switch output. Unlike standard 48V "active" PoE - i.e. 802.3af/at/bt - which checks whether the connected device needs to be powered, the "passive" PoE provided by 24V switches is always on if the port is configured to send power.

How long can an Ethernet cable be without losing speed?

Typically, for 10/100/1000 mbps links, 100 meters (approx. 300 ft.) is the maximum length for cables with Cat5e or better. A 10 gbps link requires Cat6 cabling for up to 55 meters or Cat6a for up to 100 meters.

Can PoE damage non PoE devices?

Can it damage my equipment? IEEE 802.3af/at/bt compliant PoE technology is safe. PoE injectors and switches will not damage any equipment, even if the equipment is not designed for PoE applications. This procedure uses low voltage and is harmless to any connected device, PoE or non-PoE.

Is cat5e good enough for gigabit?

The speed of Cat5e cabling supports high-performance networking. Category 5 enhanced cables can deliver Gigabit Ethernet speeds of up to 1000 Mbps. Devices connected by the cable, including switches and routers, should also support the desired data speeds. Cable technology is backward compatible.

How long can you run coax cable without loss?

Coaxial cable can be cabled over longer distances than twisted-pair cable. For example, Ethernet can run approximately 100 meters (328 feet) using twisted-pair cabling. Using coaxial cable increases this distance to 500m (1640.4 feet).

What is the difference between CAT 5 and CAT 6?

Cat stands for category. Cat 6 is cable that's more reliable at higher speeds than Cat 5 or Cat 5e. Cat 5e cable is enhanced to reduce interference so that it can reliably deliver gigabit speeds. However, Gigabit Ethernet still pushes the cable to its limits.

Is PoE 24v or 48v?

If your PoE device uses the PoE standard 48V 802.3af or 802.3at, it is considered to use active POE. Passive PoE usually refers to any device using PoE that is not 802.3af or 802.3at. This includes devices such as cameras and radio antennas that run on 24V PoE.

Can PoE cause fire?

My concern is potential damage on the length of the cable behind the drywall causing spark and potentially starting a fire. When wiring the house I had to cut some of the damaged cable at the jack locations. Some cat5 jacks where very hard to wire as I had to cut almost all of the wire available.

Is Power over Ethernet cable different?

Each PD (powered device) gains access to the network data through an Ethernet cable. Before PoE technology came on the scene, in addition to an Ethernet cable, each device also required a separate power cord.

How much voltage is PoE?

POE can be anything up to 48 volts. While there are some standards (802.3af), there are many systems which run lower voltages - 12 volts is common.

How is PoE calculated?

To calculate how many 802.3at devices the unit supports, simply divide the Total PoE Budget (130 Watts) by 30 Watts . Calculating the max amount of 802.3af devices is just as simple. Simply divide the Total PoE Budget (130 Watts) by 15.4 Watts.

Can you run PoE through a patch panel?

If its just a patch panel, you can run POE through it with no issues. If you are looking for portability, get a wall mounted rack, mount the NVR, rack POE switch, and punchdown panel all in the rack.

Does PoE affect speed?

The PoE injectors for the Ubiquiti WAPs are slowing the speed down to 15-25 Mbps. In order for the wifi to have the speed it should, the WAPs and/or the PoE injectors will need to be replaced with gigabit equipment.

Will PoE pass through a coupler?

No, it is fine to use a coupler. If it is outdoors, please make sure that you fully weatherproof the connection.

Do Ethernet cables carry electricity?

Ethernet cables generally carry a very small amount of electricity at high frequencies for the purpose of sending data. However Ethernet cables can also be made to carry significant power for use of device connected to the cables. The trick to making this work is that for data purposes their are 4 pairs of wires.
