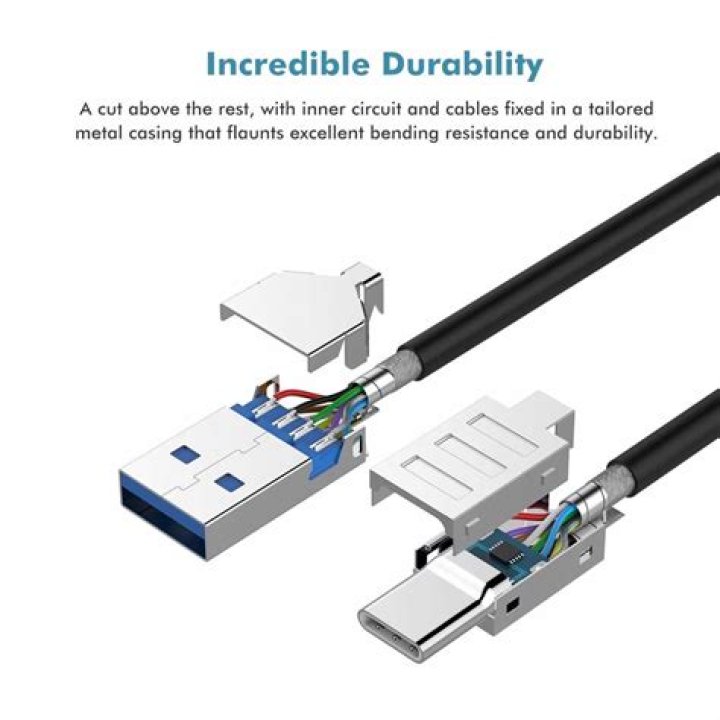

How is a USB plug wired?

The USB cable provides four pathways- two power conductors and two twisted signal conductors. The USB device that uses full speed bandwidth devices must have a twisted pair D+ and D- conductors. The data is transferred through the D+ and D- connectors while Vbus and Gnd connectors provide power to the USB device.

Hereof, what are the wire colors in a USB cable?

USB Cable Colors and What They Mean:

Red color indicates the positive wire with 5 volts of DC power.
Black is always the ground wire in almost all electronic devices.
White is a "positive" wire for data as a "positive" wire, and.
Green is also for the data, but as the "negative" wire.

Similarly, are all USB cables the same? Even though two cables can have the same physical connector, what's happening on the inside can be very different. Using the USB-C cable that charges your Android phone probably won't be as fast as the one that came with your new external hard drive.

In this regard, do USB outlets require special wiring?

USB ports don't draw much power, so you can add a USB outlet to any existing outlet except a switched outlet or a dedicated outlet for an appliance, such as a stove or refrigerator. Once you've chosen your power source outlet, switch off the breaker for that circuit.

Which pins are power on USB?

Standard A and B USB connectors

Two pins are used for power and two pins are used for differential data transmission. If you look carefully at the connector you will see that the pins for the power connection (pin 1 and 4) are slightly longer.

Related Question Answers

Do Apple Chargers have red and black wires?

Red, Green, White and nothing else. So the Red is the power, normally 5 volts. Since there is no black wire you have to use the shield which is usually wrapped around a piece of foil. This is the equivalent of “Black” and at some point connects to pin 4 of the USB cable.

What is D+ and D in USB?

D+ and D- are the differential pair lines for USB. They should be connected to D+ and D-, respectively, of the host circuit. Additionally, a 15kΩ pull-down resistor is needed on each D+ and D-.

How many volts is a USB?

5 volts

Can you cut and join USB cables?

You can cut and splice your own universal serial bus, or USB, cables to meet the length and connector type that you require. The process requires only a wire cutter and electrical tape, though cable quality can be increased using a soldering iron and heat shrink tubing.

What do the USB port colors mean?

One good example is the color of USB ports and connectors, which are most often either blue or black. A quick rule of thumb is that blue signifies a faster connection than black.

What is USB and how it works?

The Universal Serial Bus (USB) is technology that allows a person to connect an electronic device to a computer. It is a fast serial bus. This means that a device can be plugged into a free socket, and simply work. The computer will notice the device. The computer sometimes installs special software to use the device.

Can I connect red and black wires together?

Red Electrical Wires

These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.

Which is the positive wire?

The positive wire, also commonly called the hot wire, will typically be black in color. It is the source of the electricity. The electrical current travels from the outlet or other power source on the positive wire, so if it is plugged in anywhere, it should be considered a live (and dangerous) wire.

Is yellow wire positive or negative?

International Thermocouple And Extension wire COLOR CODES

Country	USA
Positive	White	White
Negative	Red	Red
Overall (K)	Brown	Yellow
Positive	Yellow	Yellow

What are the 5 pins in USB?

USB cables come with one of five different basic types of USB connector: A, B, mini B, micro B, and C. The micro connector comes standard on most non-Apple mobile phones and many other portables, though USB-C connectors are slowly replacing them in the newest generation of devices.

What happens if you plug a USB into an outlet?

There is no point in trying to charge a USB stick… So plugging a USB stick in would not do any harm, but if you had a USB-to-USB cable, which are not easily available, and you plugged it into a computer, then you could cause damage, because the Computer is also an outgoing power connection.

Are USB outlets worth it?

A USB outlet is, therefore, worth it because you can plug in electrical fixtures and devices without drawing more power or raising your electricity bill. Even if you plug in a USB device from 1996, it will still charge up with a new USB port. You can charge devices without taking up much-needed outlets.

Will USB replace outlets?

If you're installing or replacing an electrical outlet, consider getting one with built-in USB ports. Having a USB port at every outlet lets you easily charge phones, tablets, e-readers, and other devices, without ever needing to find a USB wall charger.

Are outlets with USB safe?

Yes, outlets with USB ports are safe to use. Power output is reduced to 2.4 amps per USB port with 4.8 amps combined output across two USB ports. Some outlets have a lower combined output of 3.6 amps of combined output, which reduces the output in one port to 1.2 amps when both ports are in use.

What charges faster USB or outlet?

Wall outlets, on the other hand, can supply far more current: a typical household electrical circuit supplies 15 to 20 amps -- although device chargers themselves are usually limited to 2 amps at the most. Therefore, charging a device from a wall outlet is typically faster than charging it from a USB port.

Why does my wall outlet have 6 wires?

4 Answers. There are multiple wires because that is how wires are connected to gather to get from the distribution box to the farthest outlet on the circuit. Where there are not enough screws, you attach the outlets together with a connector with an additional short "pigtail" that goes to the device.

What is USB outlet?

A USB receptacle allows you to recharge an electrical gadget, like a tablet or smartphone, using its regular USB charging cord, without the need for an extra adapter or computer. It also leaves the electrical outlets free for regular use.

Are USB sockets easy to fit?

Double sockets with USB chargers have become very popular over the past few years, mainly because they're so easy to fit and can replace existing double sockets without any trouble. They're exactly the same size and can be bought from most DIY and electrical outlets.

Are USB sockets always on?

Nearly all AC to DC converters, by design, draw a very small idle current when you aren't charging any devices. Cheaper designs consume more while some good designs consume less, but unless there's a physical switch on the USB socket it will always consume some power while waiting for a device to be plugged in.

Can I change a socket myself?

You can still do electrical work yourself. What you do need is to get a registered electrician to verify that what you've done is safe apart from some "minor" jobs like changing sockets or moving them a short distance.

Can I turn a single socket into a double?

You can double your socket power in a weekend just by swapping your single outlets for doubles. If you are wondering whether you can swap any single socket for a double, then the answer is yes, providing the existing socket is the only one on that spur (wire feed) from the ring main.
