How is link utilization calculated in stop and wait?

The link utilization is 100% if the sender transmits 10 KB of information every second. If we are using a frame size of 1 KB, what is the maximum link utilization with the basic stop-and-wait protocol? 3. We can use a sliding window to improve efficiency of stop-and-wait protocol.

In this regard, what is the link utilization in stop and wait?

1 Answer. This is a fairly simple question. Utilization is the part of time that the medium is being used with "good" byte, that is bytes of payload (no headers or ack/nack frames). In your question, there is no header specified and ACK size is not given, thus I will assume they are both of size 0.

Also Know, why Acknowledgement is numbered in stop and wait protocol? Sequence number on data packets help to solve the problem of delayed acknowledgement. Consider the acknowledgement sent by the receiver gets lost. Then, sender retransmits the same data packet after its timer goes off. The sequence number on the data packet helps the receiver to identify the duplicate data packet.

In respect to this, how do I find my link utilization?

The link efficiency (Utilization)can now be calculated, neglecting ta and tp, as follows: a = (td) / (tf) = (0.18) / (0.256) = 0.7 U = (1) / (1 + 2a) = (1) / (1 + 1.4) = 41.67 %. Determine the probability that a frame will be received erroneously. = 0.815.

What is the disadvantage of stop and wait protocol?

Simple Reliable Transmission: Stop and Wait protocol. disadvantages of stop-and-wait: fairly slow: the sender can send at most one new packet per RTT. not robust: if the ack can get lost, when the receiver gets a packet, the receiver cannot tell if it is a retransmission or a new packet.

Related Question Answers

What is simplex stop and wait protocols?

A Simplex Stop-and-Wait Protocol for an Error-Free Channel. Computer EngineeringComputer NetworkMCA. Stop – and – Wait protocol is data link layer protocol for transmission of frames over noiseless channels. It provides unidirectional data transmission with flow control facilities but without error control facilities.

How do I know if my transmission is delayed?

For example, for a 10 Mbps Ethernet link, the rate is R = 10 Mbps; for a 100 Mbps Ethernet link, the rate is R = 100 Mbps. The transmission delay is L/R. This is the amount of time required to push (that is, transmit) all of the packet's bits into the link.

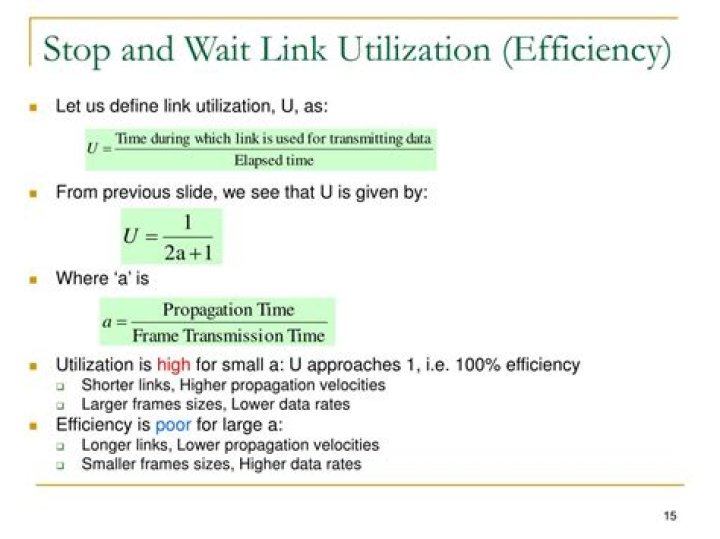

How do you calculate the efficiency of a stop and wait protocol?

Efficiency= transmit time/(transmit time +2 X propagation delay).

1. Propagation delay will be of Data and ACK.
2. Queuing Delay and processing time depends on processor's speed so these can be neglected if not given.
3. T ack can also be neglected as its size is small.

What are the key functions of error control techniques?

The error control mechanism in data link layer involves the following phases:

• Detection of Error − Transmission error, if any, is detected by either the sender or the receiver.
• Acknowledgment − acknowledgment may be positive or negative.
• Retransmission − The sender maintains a clock and sets a timeout period.

How the efficiency of stop and wait protocol is overcome in sliding window protocol?

How the inefficiency of Stop-and-Wait protocol is overcome in sliding window protocol? Ans: The Stop-and-Wait protocol is inefficient when large numbers of small packets are send by the transmitter since the transmitter has to wait for the acknowledgement of each individual packet before sending the next one.

Which of the following is a application layer technology?

Which of the following is an application layer service? Explanation: The services provided by the application layer are network virtual terminal, file transfer, access and management, mail services, directory services, various file and data operations. Explanation: IP address lets you know where the network is located.

What is go back n protocol in computer networks?

Go-Back-N protocol, also called Go-Back-N Automatic Repeat reQuest, is a data link layer protocol that uses a sliding window method for reliable and sequential delivery of data frames. It is a case of sliding window protocol having to send window size of N and receiving window size of 1.

What is link efficiency?

Link efficiency generally refers to the amount of overhead required to transmit a given amount of user data.

What does channel utilization mean?

Channel Utilization indicates how much 802.11 traffic the AP can "hear" on its channel, from all sources. This will include all 802.11 frames that the AP can hear from all APs and clients in the vicinity. It indicates the amount of time that the AP considers the channel to be busy.

What is channel utilization in networking?

Definition: channel utilization. Channel utilization = the fraction of the transmission capacity of a communication channel that contains data (frames) transmissions. Another term for channel utilization: Channel efficiency or simply efficiency.

What are the two types of ARQ?

Three main types of the ARQ are the Stop-and-wait ARQ, Go-Back-N ARQ, and Selective Repeat ARQ. Stop-and-wait ARQ is the simplest ARQ.

What is the main disadvantage of stop and wait flow control?

disadvantages of stop-and-wait: fairly slow: the sender can send at most one new packet per RTT. not robust: if the ack can get lost, when the receiver gets a packet, the receiver cannot tell if it is a retransmission or a new packet.

What is the need of ARQ?

They are named so because they provide for automatic retransmission of frames that are corrupted or lost during transmission. ARQ is also called Positive Acknowledgement with Retransmission (PAR). ARQs are used to provide reliable transmissions over unreliable upper layer services.

Where is stop and wait protocol used?

Stop-and-wait ARQ. Stop-and-wait ARQ, also referred to as alternating bit protocol, is a method in telecommunications to send information between two connected devices. It ensures that information is not lost due to dropped packets and that packets are received in the correct order.

What is the difference between stop and wait and sliding window protocol?

The main difference between Stop-and-wait protocol and Sliding window protocol is that in Stop-and-Wait Protocol, sender send one frame and wait for the acknowledgment from receiver side whereas in sliding window protocol, sender send more than one frames to the receiver side and re-transmit the frame which are/is

What is the need of ARQ explain automatic repeat request ARQ in details?

Automatic repeat request (ARQ) is a protocol for error control in data transmission. When the receiver detects an error in a packet, it automatically requests the transmitter to resend the packet. ARQ is sometimes used with Global System for Mobile (GSM) communication to guarantee data integrity.

What is the need of flow control in networking?

Flow control is the management of data flow between computers or devices or between nodes in a network so that the data can be handled at an efficient pace. Too much data arriving before a device can handle it causes data overflow, meaning the data is either lost or must be retransmitted.

What happens when a frame reaches its receiver?

After receiving a valid frame, the receiver sends an ACK. If the ACK does not reach the sender before a certain time, known as the timeout, the sender sends the same frame again. If the receiver sees that the frame is good, it sends an ACK.

What is the window size of stop and protocol?

In stop and wait ARQ, Sender window size is 1. This allows the sender to keep only one frame unacknowledged. So, sender sends one frame and then waits until the sent frame gets acknowledged.
