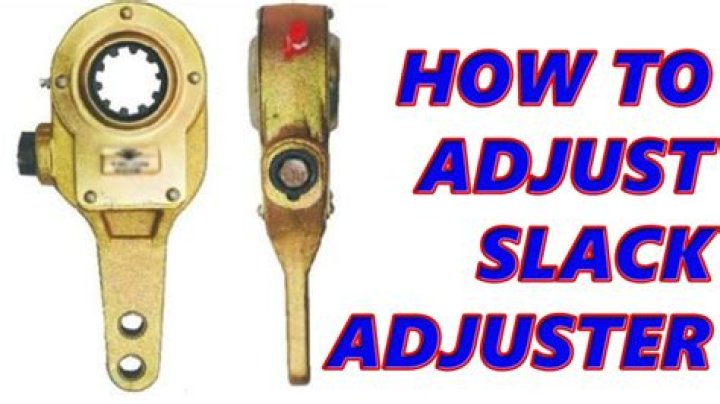

How much play should slack adjusters have?

Slack adjust should have no more than 2 inches of play.

Similarly, how do you check slack adjusters on free play?

To check the free play of manual slack adjusters on s-cam brakes you should: A Park on level ground, chock the wheels, and release the parking brakes. B Stop on level ground and apply the parking brakes. C Park on level ground and drain off air pressure before adjusting.

Similarly, should you adjust automatic slack adjusters? Do not manually adjust automatic slack adjusters after initial adjustment unless you are doing a complete brake overhaul. Never use an impact wrench to adjust. If you do, internal slack adjuster damage may occur.

One may also ask, what are the slack adjusters?

Slack adjusters (also called brake adjusters or just "slacks") regulate the distance that the air brake has to travel to apply friction to the wheel. When the brake is used, the operating rod pushes out on the slack adjuster which then turns the S-cam.

What is the minimum brake thickness allowed by DOT?

Title 49 CFR § 393.47(d)(1) states that the thickness of the brake lining and pads of steering axle brakes on a truck, truck-tractor or bus "shall not be less than 4.8 mm (3/16 inch) at the shoe center for a shoe with a continuous strip of lining." The thickness requirements are at least 6.4 mm (1/4 inch) for two pads.

Related Question Answers

How often do you adjust slack adjusters?

approximately every 10,000 miles

How do automatic slack adjusters work?

How Do Slack Adjusters Work? The slack adjuster assembly transmits the braking torque to the S-cam and facilitates the adjustment of clearance between the brake lining (brake pad) and the brake drum. It is mounted on the S-cam shaft. One end is connected to the brake chambers' pushrod.

How often should you drain air tanks?

To prevent the build up of oil and water in a vehicle's air tanks, manually operated air tank drains should be used at the end of each day of driving.

Why must air tanks be drained?

Why must air tanks be drained? Water and compressor oil can get inside of the tank and can freeze in cold weather and cause brake failure. A parking brake control in the cab allows the driver to let the air out of the brakes.

How much movement is acceptable when checking the brake slack adjuster?

How can you check the slack adjuster? Park on level ground, turn off parking brakes, pull hard on each slack adjuster. It shouldn't move more than one inch.

Where are slack adjusters located?

On an air-brake system, the slack adjuster is what is used to adjust the brakes. It is located on the axle housing on the air canister near the wheel. On drum brakes, it's between the pushrod and the S-cam.

What is maximum leakage rate?

6. What are the maximum leakage rates? Less than four psi in one minute for single vehicles and less than eight psi in one minute for combination vehicles. Less than two psi in one minute for single vehicles and less than three psi in one minute for combination vehicles.

How do I check my s Cam bushings?

Remove the dial indicator from the inboard end of the cam and rotate it over to the cam head, then manually move the cam head up and down to measure the radial play. If the radial play is 0.030 of an inch or more, the cam bushing or camshaft is worn and needs to be replaced.

What are 2 Functions of slack adjusters?

The air brake slack adjusters perform two functions: (1) The slack adjuster acts as a lever arm to convert the linear pushrod force to rotational camshaft torque. The length of the slack adjuster determines the amount of torque multiplication provided from the pushrod.

How do I know if my slack adjusters are bad?

Usually brakes locking up is s-cam or s-cam bushings. That's fairly easy to check, with no brake pressure put a pry bar on the slack adjuster. If there's any significant movement up down or back and forth (some in and out is fine) then everything needs to come apart.

How long do slack adjusters last?

Slack adjusters have a finite life expectancy – they do not last the life of the vehicle.” Depending on application, slack adjusters will need to be replaced after four or five years of use, Gary added.

When the spring brakes are on you should never?

Turn off the vehicle. C. Push down the brake pedal. Never push down the brake pedal while the spring brakes are activated.

Why are air brakes better than hydraulic?

Air brakes are used in heavy commercial vehicles due to their reliability. They have several advantages for large multi-trailer vehicles: The supply of air is unlimited, so the brake system can never run out of its operating fluid, as hydraulic brakes can. Minor leaks do not result in brake failures.

How should you check that your service brakes are working properly?

How should you check that your service brakes are working properly? Wait for normal air pressure, release the parking brake, move the truck forward slowly, and firmly step on the brake.
