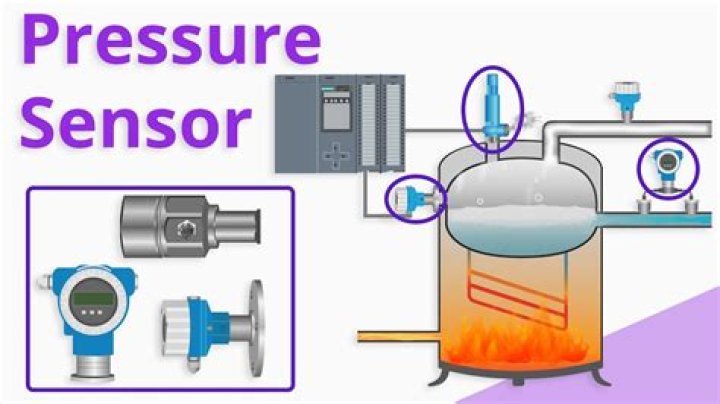

Is a pressure sensor input or output?

A pressure sensor is a device equipped with a pressure-sensitive element that measures the pressure of a gas or a liquid against a diaphragm made of stainless steel, silicon, etc., and converts the measured value into an electrical signal as an output.

Herein, what is the output of pressure sensor?

A typical pressure sensor works producing a strain gauge output as the deflection of a diaphragm is caused. Depending on the strain gauge technology the output can vary from 1 to 3 millivolts per volt (mV/V) to as much as 10 to 30 mV/V.

Also Know, how does a pressure sensor work? A pressure sensor works by converting pressure into an analogue electrical signal. The demand for pressure measuring instruments increased during the steam age. Nowadays we measure pressure electronically using pressure transducers and pressure switches.

Subsequently, one may also ask, is a pressure sensor an input or output device?

Real world data such as temperature, rotation of a motor, force, pressure, humidity and many more. But, are these sensors input or output devices? Sensors are in fact Input devices. They interpret information from the real world and convert it to a signal that can be processed (by the main processing unit).

Does a pressure transducer need power?

Power and Signal:

Pressure transducers require a power source and produce an electronic signal proportional to the pressure sensed. Power and signal must be matched to the environment and the receiving device.

Related Question Answers

Where would a pressure sensor be used?

The varying applications of pressure sensors. Pressure sensors are used for many automotive, medical, industrial, consumer and building devices, which depend on accurate and stable pressure measurements in order to operate reliably.

What are the types of pressure sensors?

These are:

• Potentiometric pressure sensors.
• Inductive pressure sensors.
• Capacitive pressure sensors.
• Piezoelectric pressure sensors.
• Strain gauge pressure sensors.
• Variable reluctance pressure sensors.

What is the operating voltage of pressure sensor?

Electrical input/output

To operate, most pressure transducers require an electrical input (usually called excitation). Many operate from a 5- to 10-Vdc input and produce full-scale outputs from, say, 0 to 20 mV and 0 to 100 mV. Transducers that produce high level voltage outputs operate from voltage sources.

Does a pressure sensor detect weight?

Pressure sensors are commonly used to weigh the amount of air above them and compute altitude or weigh the amount of water above them and compute water depth. One of the frequent modern uses for converting pressure measurements to weight is in occupant safety systems.

Which sensor is lm35?

The LM35 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature.

How does a piezoresistive pressure sensor work?

How Piezoresistive Pressure Sensors Work. A Piezoresistive Pressure Sensor contains several thin wafers of silicon embedded between protective surfaces. When the resistance changes, less current passes through the pressure sensor. The Wheatstone bridge detects this change and reports a change in pressure.

How do you test a pressure sensor?

How to Test a 4-20 mA Pressure Transducer?

1. Connect the positive terminal of the transducer to the positive terminal of the power supply.
2. Connect the negative terminal of the transducer to the positive lead on the multimeter.
3. Connect the negative lead of the multimeter to the negative terminal on the power supply.

What are the different types of sensors?

Different Types of Sensors

• Temperature Sensor.
• Proximity Sensor.
• Accelerometer.
• IR Sensor (Infrared Sensor)
• Pressure Sensor.
• Light Sensor.
• Ultrasonic Sensor.
• Smoke, Gas and Alcohol Sensor.

What does a pressure sensor detect?

A pressure sensor is an electronic device that detects, regulates, or monitors pressure, and converts perceived physical data into an electronic signal.

Is actuators input or output?

In electronic engineering, actuators are a subdivision of transducers. They are devices which transform an input signal (mainly an electrical signal) into some form of motion.

Are sensors analog or digital?

Analog sensor senses the external parameters (wind speed, solar radiation, light intensity etc.) and gives analog voltage as an output. Unlike analog sensor, Digital Sensor produce discrete values (0 and 1's). Discrete values often called digital (binary) signals in digital communication.

What is a sensor explain briefly?

A sensor is a device that detects and responds to some type of input from the physical environment. The output is generally a signal that is converted to human-readable display at the sensor location or transmitted electronically over a network for reading or further processing.

Is plotter an input or output?

The plotter is a computer printer for printing vector graphics. In the past, plotters were used in applications such as computer-aided design, though they have generally been replaced with wide-format conventional printers. A plotter gives a hard copy of the output. It draws pictures on a paper using a pen.

Is a pressure sensor active or passive?

Any electrical signal processing always requires a voltage supply (an “active part”) and a “load”, such as a pressure sensor, which represents the “passive part”.

What is the purpose of a pressure switch?

Pressure switches are widely used for a large range of applications throughout industry and manufacturing. Their function is to provide systems with electrical feedback in response to measuring a rise or fall in pressure. A pressure switch is usually adjustable with regard to the chosen set point of operation.

What is meant by pressure sensor?

Definition of a Pressure Sensor: Therefore, a pressure sensor is an instrument consisting of a pressure sensitive element to determine the actual pressure applied to the sensor (using different working principles) and some components to convert this information into an output signal.

How are the sensors arranged in a piezoresistive pressure sensor?

The diaphragm is called a square diaphragm, because the implanted sensors are arranged in a symmetric square pattern. The diaphragm is bonded to a support chip with glass sealing used to seal the measured pressure from atmosphere and bond the inlet tubing for the fluid.

How does an electronic pressure switch work?

An electronic pressure switch generates electronic switching signals and, very often, also an additional, analogue output signal proportional to the pressure. They are either programmed at the factory to the desired switch points or they feature a programming interface with integrated display and buttons.

What is capacitive pressure sensor?

Capacitive pressure sensors measure pressure by detecting changes in electrical capacitance caused by the movement of a diaphragm.

What are the different types of pressure transducers?

There are five types of pressure transducers: Standard, Top Mount, Side Mount, High Accuracy and High Temperature. Pressure transducers can be internal (inside) or external (outside) depending on the type of pressure transducer.

Is thermocouple a transducer?

Thermocouples are temperature transducers that are basically consists of two junctions of dissimilar metals, such as copper and constantan that are welded. One junction is kept at a constant temperature called the reference (Cold) junction, while the other the measuring (Hot) junction.

How does a 3 wire pressure transducer work?

A three-wire sensor has 3 wires present. Two power wires and one load wire. The power wires will connect to a power supply and the remaining wire to some type of load. The load is a device that is being controlled by the sensor.

What is the difference between pressure transmitter and transducer?

A pressure transducer converts pressure to an electronic signal, while a pressure transmitter also amplifies, modifies, and sends that signal. A transmitter also converts a reading into an electronic signal, but it then amplifies, modifies, and sends that signal to a receiver.

What is a water pressure transducer?

Water pressure transducers also called a water pressure sensor, are pressure transmitters that can measure water pipe pressure. For the water level/water depth measurement, in the tank, or in the well, we can use electrical transmitters, stainless steel body, IP65-IP6, 4-20ma output.

How many types of transducers are there?

two

What does a transducer measure?

Usually a transducer converts a signal in one form of energy to a signal in another. Transducers are often employed at the boundaries of automation, measurement, and control systems, where electrical signals are converted to and from other physical quantities (energy, force, torque, light, motion, position, etc.).
