Is CAT5e solid or stranded?

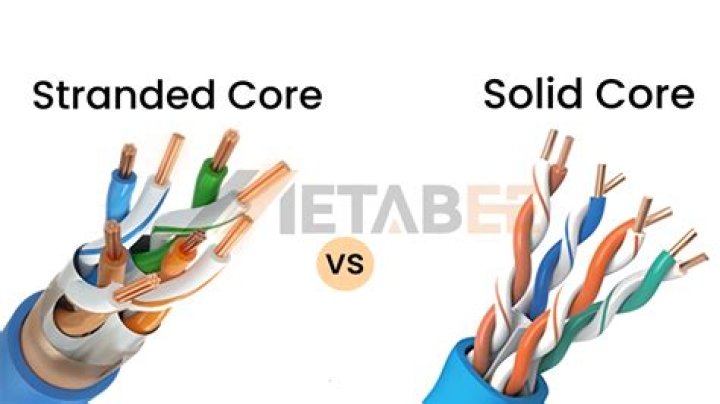

Category 5e (CAT5e) and Category 6 (CAT6) network cables come in stranded conductor and solid conductor formats. A solid conductor uses one solid wire per conductor, meaning, in a standard CAT5e / CAT6 4-pair (8-conductor) roll, there would be a total of 8 solid wires.

People also ask, how do I know if my Ethernet cable is stranded or solid?

There is no easy way to tell if a cable is stranded or solid unless you cut it. A solid cable though will tend to be more stiff and won't have as much give when you bend it.

Furthermore, which is better solid or stranded cat6? The key physical difference between a stranded cable and a solid cable is flexibility. Stranded cables are much more flexible and can withstand more bending compare to rigid solid conductors that can fail if flexed too many times. And the more strands a conductor has, the greater the flexibility.

Accordingly, what type of cable is CAT 5?

twisted pair cable

What is stranded Ethernet cable?

Stranded Ethernet cables have multiple smaller strands of wire that are twisted together to form a single conductor. These are flexible, and typically used for pre-made Ethernet and other network patch cables.

Related Question Answers

What wire is better solid or stranded?

In general, solid cables are better electrical conductors and provide superior, stable electrical characteristics over a wider range of frequencies. They are also considered more rugged and less likely affected by vibration or susceptible to corrosion since they have less surface area than stranded conductors.

Are the same 8p8c rj45 modular connectors used for both solid and stranded cable?

Yes. You can use 'solid' 8P8C plugs on solid and stranded wire. You must only use 'Stranded' 8P8C plugs on stranded wire. The 'stranded' version has one little 'tang' that goes straight into the stranded wire.

Is Cat 6 better than Cat 5e?

The main difference between CAT5e and CAT6 cable lies within the bandwidth, the cable can support for data transfer. CAT6 cables are designed for operating frequencies up to 250 MHz, compared to 100 Mhz for CAT5e. This means that a CAT6 cable can process more data at the same time.

Why is stranded rather than solid cable used for patch cables?

Stranded cables are much less useful for punching down on wall jacks because the strands do not keep their perfect round shape when thrust into a insulation displacement connector. Instead, stranded cable is typically used to create patch cables. The cable itself is more flexible, and rolls up well.

Can you punch down stranded cable?

If you punched the stranded cable it into keystones, fixed the keystones into a patch panel and velco wrapped those cables to a cable bar or supporr so they arnt moving, or putting any weight on the terminations, you'll probbaly be ok.

What is solid cable?

Solid cable is built with one strand or the core of a wire that has non-conductive material for insulation. This type of cable is used for home electrical wiring, wiring for breadboards and other situations where wires are not required to be constantly flexed.

Which cat cable is best?

Cat 8, the next generation of Ethernet cables, is on the horizon but for the time being, Cat 7a (Cat 7 “augmented”) is the highest-performing Ethernet cord available. Like the Cat 6a and Cat 7 cables, the Cat 7a supports speeds up to 10,000 Mbps, but the max bandwidth is much higher at 1,000 MHz.

Can I plug a cat5 cable into a cat6 Jack?

Yes you can plug cat5 into cat6 Jack: Generally, connectors may be backwards compatible with cable from older standards, but the reverse is not true — if you're pulling Cat6 cable, time to update your Cat5e and older connector collection!

Is CAT5e good enough?

CAT5e is the current standard for network video installs; it is not the newest, but not old enough to be useless. CAT5e is currently the minimum recommended for 1000 megabit (1 gigabit) communication speeds, and for providing Power Over Ethernet.

Are all cat5e cables the same?

Category 5 (Cat-5) and Category 5 enhanced (Cat-5e) are actually basically the same. Nothing changed physically in the cable itself. Instead, Cat-5e cables are tested more stringently to ensure less crosstalk (electrical interference).

What is CAT 7 cable used for?

A Category 7 cable, more commonly known as a CAT 7 or Cat-7 cable, is used for the cabling infrastructure of Gigabit Ethernet. A CAT 7 cable offers performance of up to 600MHz. Put simply, a CAT 7 cable is what we recommend you use when wiring your smart home!

Is Ethernet faster than WiFi?

To access a network via an Ethernet connection, users need to connect a device using ethernet cable. An Ethernet connection is generally faster than a WiFi connection and provides greater reliability and security.

Will cat6 improve Internet speed?

If you want faster internet speeds, Cat6 is a good choice. It reduces something called “crosstalk” — signal transfers that disrupt your communication channels. If you are happy with your current internet speeds, however, Cat5 might be all you need. Besides, Cat5 cables tend to be cheaper than Cat6.

What 4 wires are used in cat5?

The four wire pairs in a CAT-5 cable are distinguished by the color of their insulation. The four colors are (in order) blue, orange, green and brown. Thus, when refering to the "second pair" of wires, it is the orange pair.

Does length of ethernet cable matter?

For all practical purposes, there will be no effect on the speed of your connection. There will be a very insignificant amount of delay due to long cables. Given that the maximum length of cable you can run (per the Ethernet spec) is 300 ft, the cable length could never cause more than 300 ns of delay due to the cable!

Does stranded wire carry more amps than solid?

Because of the given thickness of stranded wire, i.e., it's thinner, there are more air gaps and a greater surface area in the individual strands of wire. Therefore, it carries less current than similar solid wires can.

Does stranded wire have more resistance than solid wire?

A stranded wire will have higher resistance than a solid wire of the same diameter because the cross-section of the stranded wire is not all copper; there are unavoidable gaps between the strands (this is the circle packing problem for circles within a circle).

Should I use shielded or unshielded cat6?

Shielded cable is more expensive than unshielded cable and more difficult to install; it's stiffer, making it less flexible. The cable also has a larger diameter, taking up more space in conduit. UTP, on the other hand, actually provides faster transmissions in the absence of EMI.

What is the difference between cat5 and cat6 cables?

The main difference between cat5 and cat6 cables is reduced “crosstalk” and faster speeds in the transferring of data and connection. The electromagnetic signals that emanate from cat cables can cause “crosstalk” when multiple cables are close to one another within a computer networking hub.

How long is a patch cable?

twenty feet

What is Riser rated cable?

Riser rated cable or (CMR) cable as you might see is a cable rated for in wall installations, Risers in buildings and between the floors. It's able to achieve this because of its fire retardant jacket which is usually PVC.

When would you use a patch cable?

Yet patch cables are often used in offices yet electrical wardrobes for short distances. Ethernet patch cable can be used to connect a computer to a network port, router or Ethernet switch that is useful for building networks of home computers.

What is an unshielded twisted pair cable?

UTP stands for Unshielded Twisted Pair cable. UTP cable is a 100 ohm copper cable that consists of 2 to 1800 unshielded twisted pairs surrounded by an outer jacket. They have no metallic shield. This makes the cable small in diameter but unprotected against electrical interference.

What are Ethernet cables used for?

An Ethernet cable is the most common type of network cable used on a wired network whether at home or in any other business establishment. This cable connects wired devices together to the local network for file sharing and Internet access.

Is Cat 5 cable copper?

CAT5 is currently the industry standard for network and telephone wiring. CAT5 contains four pairs of 24-gauge copper wiring and ends in a standard RJ-45 jack. This type of copper wire cabling is known as twisted pair cabling and is only recommended for a maximum distance of 100 meters or 328 feet.
