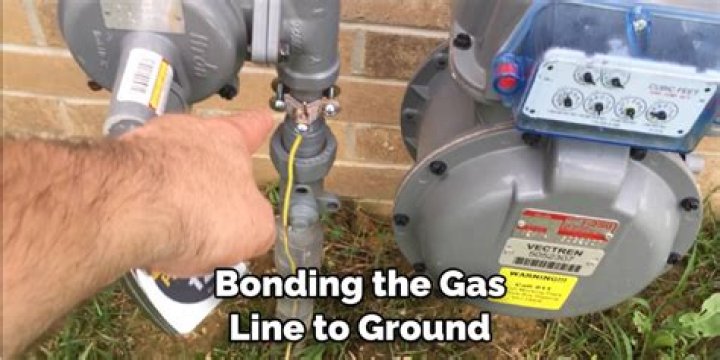

Should gas line be grounded?

In summary, you cannot use a metal underground gas piping system as a grounding electrode. However, you must bond the piping system to the grounding electrode system for safety reasons.

In this regard, does my gas line need to be grounded?

According to National Electrical Code, the pipe has to be bonded. However, it can be bonded using the grounding conductor serving the equipment that uses the gas. It's not likely lightning will strike the pipe, especially since it's right next to a house.

Furthermore, why do you need to bond a gas line? Bonding: A conductor intentionally installed to electrically connect metallic gas piping to the grounding electrode system to create a low-impedance pathway to ground. All electrodes used must be bonded together into one common grounding electrode system.

Also, how much does it cost to ground a gas line?

it should cost less than $20 for the materials. If you hire a contractor it would cost $60 to $100.

What is the difference between grounding and bonding?

Everything that is grounded is connected to ground and can have no electrical energy stored in it. is simply the act of joining two electrical conductors together. They may be two wires, a wire and a pipe, or they may be two tin cans. Bonding ensures that these two things will be at the same electrical potential.

Related Question Answers

What is bonding a gas line?

To make it really simple, when metal that can carry electricity (but shouldn't) gets connected together to eliminate potential, we call it bonding. If the metal accidentally carries electricity or even a static charge, proper bonding will allow the electricity to be carried back to its source in a safe manner.

Where do I bond the gas pipe?

The bonding conductor must be attached to the CSST gas piping system downstream of the point of delivery (either the natural gas meter or the LP 2nd stage regulator). The bonding clamp can be located at any location within the piping system. In general, the shortest bonding conductor will be the most effective.

Do I need two ground rods?

Code requires one ground rod and you prove 25 ohms, or two ground rods and you don't have to prove it. No. The requirement is 2 rods spaced at least six feet apart unless you can prove one rod will turn less than 25 ohms resistance. That is all the requirement is.

How do you bond water and gas pipes?

Bonding of water lines is usually accomplished by connecting the water lines to the grounded neutral at the service panel. Connections should occur within the first 5 feet after the pipe enters the structure.

What is earth bonding to gas meter?

The main earth bonding for the gas pipe should be done after the gas meter in 10mm bonding and not more the 60cm or after 1st tee off. The cross bonding under the boiler should connect all pipework and be done in 4mm bonding.

Is flexible gas line code?

CSST is approved for use as a gas piping material in all national model building codes, including the National Fuel Gas Code, the International Fuel Gas Code, and the Uniform Plumbing Code, and is approved for use in all 50 states. U.S. buildings codes currently require 'direct bonding' of CSST.

How long can a flexible gas line be?

Three- or six-foot long and accessible: The flexible connectors can't go through walls, floors or ceilings, nor can they be concealed. The flexible connector length usually is limited to 3 feet except for gas ranges and clothes dryers. For these appliances, 6 feet generally is allowed.

Can you bury home flex gas line?

HOME-FLEX Underground fittings are approved for direct burial. They can be installed without the need for special tools or equipment. HOME-FLEX Underground gas pipe is approved ASTM D2513.

How much does it cost to ground a Csst line?

The next step is to call a home inspector or licensed electrician, tell them you think you have CSST and you want to make sure it's been properly grounded. Correcting an existing installation can cost as little as $100 to a few hundred dollars, depending on your house.

Can you bury CSST gas line?

Suitable for direct burial both internally and externally, the CSST can be run externally from the propane cylinder and then taken underground before it meets the firepit. The polyethylene jacket has both UV and ozone resistant properties, making it safe for external use.

Can I use flexible gas line for furnace?

Galvanized steel is used in some areas as well. Flex connectors: Flexible connectors are permitted to connect appliances to the gas piping. There has to be a shut-off valve at the connection to the rigid piping. Flexible connectors may not be permitted on gas furnaces, water heaters, space heaters, etc.

Can gas and water be bonded together?

the main bond has to be a continuous unbroken link. Its ok to link gas and water with the same cable but it has to be continuous. Putting an earth block in and then seperate links is like supplying 2 main earth terminals and will cause confusion later and as a spark of 20 years there no way i would do it.

Can I install a gas line myself?

Installing a gas line is probably not a task to take on as your first do-it-yourself project. However, experienced do-it-yourselfers can install a gas line as safely as a professional. Despite the narrow margin for error, the individual steps are no more demanding than plumbing or electrical work.

How deep do gas lines go?

A gas main should normally be laid with a minimum depth of cover of 750 mm in a road or verge and 600 mm in a footpath. A gas service pipe should normally be laid with a minimum depth of cover of 375 mm in private ground and 450 mm in footpaths and highways.

Is it safe to ground to a gas pipe?

The answer is no. You can't use the gas line as the grounding electrode and some other means should be verifyable - ground rod, metal underground water pipe, Ufer, or ground ring. If no other means could be verified, it should be reported as such.

How much does a plumber charge to install a gas line?

Most gas lines can be installed by plumbers who charge an average of $45-$65 per hour. Installing a gas line typically takes 2-4 hours, for a total labor cost of $90-$260.

Is natural gas cheaper than electricity?

Is gas or electric cheaper? Natural gas is almost always cheaper than electricity. Choosing all gas appliances can save you up to 30 percent on your utility bill. Gas appliances cost more upfront, but over time, gas will save you money on your utility bill.

Who can run a gas line?

Most people only consider using them for water pipe issues. However, specialty plumbers can be used to work with natural gas lines, as well as other systems such as water sprinklers. Usually, a natural gas plumber will have a license that states he or she is allowed to work on and install natural gas lines.

Can I run gas pipe outside the house?

There is no problem with running a gas pipe externally its a perfectly acceptable practice. However you may require the freeholders consent to do this in any case.

Does natural gas increase home value?

According to the National Association of Home Builders (NAHB), homes with natural gas have a 4% higher resale value than those with oil or propane. In response, many neighborhoods, where there are no pre-existing natural gas pipelines, are campaigning to bring natural gas to their streets.

Does black gas pipe need to be grounded?

According to National Electrical Code, the pipe has to be bonded. However, it can be bonded using the grounding conductor serving the equipment that uses the gas. As for lightning strikes, the gas company is probably correct. It's not likely lightning will strike the pipe, especially since it's right next to a house.

Where do you bond the gas pipe?

Section 250-104(b) does require that metal gas piping should be bonded to the grounding electrode system. This can be done by terminating at the neutral bar, or any of the electrodes in the grounding electrode system.

What can be used as a grounding rod?

Ground rods can be made with many different materials, but copper is the most common materials used for residential installations. Ground rods are very good conductors of electricity and allow any dangerous electricity to flow to ground, taking the danger away from you and the electrical panel.

What size cable is used for earth bonding?

10mm

What is wire bonding electronics?

Wire bonding is the method of making interconnections between an integrated circuit (IC) or other semiconductor device and its packaging during semiconductor device fabrication. Wire bonding can be used at frequencies above 100 GHz.
