What are routing and switching protocols?

Router protocols include:

• Routing Information Protocol (RIP)
• Interior Gateway Protocol (IGRP)
• Open Shortest Path First (OSPF)
• Exterior Gateway Protocol (EGP)
• Enhanced Interior Gateway Routing Protocol (EIGRP)
• Border Gateway Protocol (BGP)
• Intermediate System-to-Intermediate System (IS-IS)

Besides, what are switching protocols?

101 Switching Protocols is a status code that's used for a server to indicate that the TCP conncection is about to be used for a different protocol. The best example of this is in the WebSocket protocol. WebSocket uses a HTTP handshake when creating the connection, mainly for security reasons.

Additionally, what are the various dynamic routing protocols? Dynamic Routing

• RIP (Routing Information Protocol) Unlike the other routing protocols, there are actually two different versions of RIP.
• OSPF (Open Shortest Path First)
• BGP (Border Gateway Protocol)
• IS-IS (Intermediate System to Intermediate System)
• Route Redistribution.

Additionally, what are the different routing protocols?

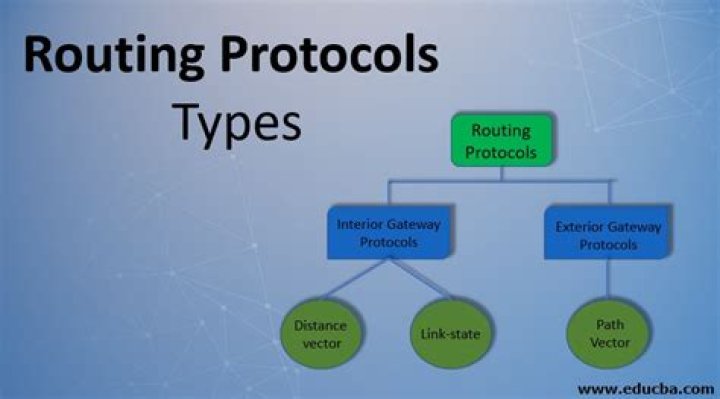

Although there are many types of routing protocols, three major classes are in widespread use on IP networks:

• Interior gateway protocols type 1, link-state routing protocols, such as OSPF and IS-IS.
• Interior gateway protocols type 2, distance-vector routing protocols, such as Routing Information Protocol, RIPv2, IGRP.

What is 101 switching protocols?

The HTTP 101 Switching Protocols response code indicates the protocol the server is switching to as requested by a client which sent the message including the Upgrade request header. The server includes in this response an Upgrade response header to indicate the protocol it switched to.

Related Question Answers

How switching is performed in the router?

The function of Switching is to switch data packets between devices on the same network (or same LAN - Local Area Network). The function of Routing is to Route packets between different networks (between different LANs - Local Area Networks). Switches operate at Layer 2 of the OSI Model (Datalink Layer).

What layer is FTP in OSI?

application layer

How does routing start?

When a node first starts, it only knows of its immediate neighbors and the direct cost involved in reaching them. (This information — the list of destinations, the total cost to each, and the next hop to send data to get there — makes up the routing table, or distance table.)

What is meant by switching?

Switching is process to forward packets coming in from one port to a port leading towards the destination. When data comes on a port it is called ingress, and when data leaves a port or goes out it is called egress. A communication system may include number of switches and nodes. Data is then forwarded on that circuit.

What is switching in CCNA?

Layer-2 switching is the process of using the hardware address of devices on a LAN to segment the network.

What is the difference between a switch and router?

While a network switch can connect multiple devices and networks to expand the LAN, a router will allow you to share a single IP address among multiple network devices. In simpler terms, the Ethernet switch creates networks and the router allows for connections between networks.

What is the most used routing protocol?

Open Shortest Path First (OSPF)

What is Classful routing protocol?

Routing protocols can be classful or classless: Classful routing protocols DO NOT send the subnet mask along with their updates. Classless routing protocols DO send the subnet mask along with their updates.

What is routing and list three types of routing?

There are 3 types of routing:

• Static routing – Static routing is a process in which we have to manually add routes in routing table.
• Default Routing – This is the method where the router is configured to send all packets towards a single router (next hop).
• Dynamic Routing –

What protocol does BGP use?

TCP

What's the difference between a routing protocol and a routing algorithm?

Routing protocols provide information to routing algorithms in the form of variables or metrics. Routing algorithms, on the other hand, provide routing protocols with the best path for the router to send data.

What does a routing table list?

In computer networking a routing table, or routing information base (RIB), is a data table stored in a router or a network host that lists the routes to particular network destinations, and in some cases, metrics (distances) associated with those routes.

What is hop count in routing?

HOP counts refer to the number of devices, usually routers, that a piece of data travels through. Each time that a packet of data moves from one router (or device) to another — say from the router of your home network to the one just outside your county line — that is considered one HOP.

What are the two categories of IGP protocols?

These dynamic routing protocols are commonly broken into two major categories: Interior routing protocols or IGP (Interior Gateway Protocols) and Exterior routing protocols or EGP (Exterior Gateway Protocols).

How do you do dynamic routing?

To configure dynamic routing: Choose Networking > Routing > Dynamic Routing. To configure how the router sends and receives RIP packets, choose the RIP direction: None—The router neither broadcasts its route table nor does it accept any RIP packets from other routers.

What is a dynamic routing gateway?

Overview of Dynamic Routing Gateways. You can think of a DRG as a virtual router that provides a path for private traffic (that is, traffic that uses private IPv4 addresses) between your VCN and networks outside the VCN's region.

When would you not use dynamic routing?

0.0/0 pointing to your ISP. You do not need the dynamic routing. Example 2: If you have single link between two locations and you have only 2 networks in location A and 4 networks in location B, use can still use static routing (no big administrative overhead).

What is the another name of dynamic routing?

Dynamic routing, also called adaptive routing, is a process where a router can forward data via a different route or given destination based on the current conditions of the communication circuits within a system.

What is the main purpose of a dynamic routing protocol?

A primary benefit of dynamic routing protocols is that routers exchange routing information when there is a topology change. This exchange allows routers to automatically learn about new networks and also to find alternate paths when there is a link failure to a current network.

Why do we use dynamic routing?

The chief advantages of dynamic routing over static routing are scalability and adaptability. A dynamically routed network can grow more quickly and larger, and is able to adapt to changes in the network topology brought about by this growth or by the failure of one or more network components.

What are two functions of dynamic routing protocols?

Dynamic routing protocols exist to discover the network, maintain routing tables, and calculate the best path.

Is BGP a dynamic routing protocol?

The dynamic routing protocol that is the most different from all the others is the Border Gateway Protocol (BGP). BGP also can be configured to learn either full or partial routing tables to make better routing decisions based on the optimal outbound internet path to the destination router.

Is Rip a dynamic routing protocol?

Routing Information Protocol (RIP) is a dynamic routing protocol which uses hop count as a routing metric to find the best path between the source and the destination network. It is a distance vector routing protocol which has AD value 120 and works on the application layer of OSI model. RIP uses port number 520.
