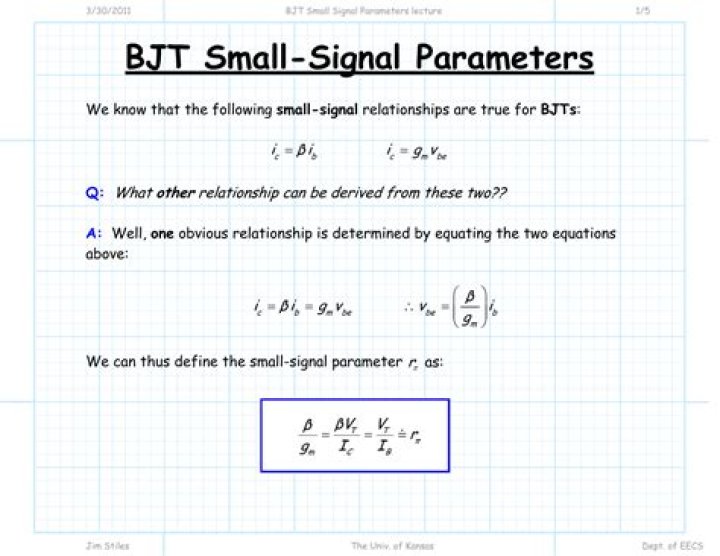

What are the small signal parameters?

This chapter discusses the small-signal parameters. A diagram using these modifications is called a small-signal diagram. For small-signal analysis, the collector current is expressed as the total derivative evaluated at the point Q and all direct current terms disappear.

Accordingly, what are the small signal FET parameters?

Parameter g_m is called the mutual conductance or the transconductance of the FET and is expressed in mho (or Seimen) or milli-mho (milli-Seimen). Parameter r_d is the dynamic drain resistance of the FET and is expressed in ohms. Drain conductance g_d is reciprocal of r_d.

Subsequently, question is, what is small signal equivalent circuit? A small-signal model is an AC equivalent circuit in which the nonlinear circuit elements are replaced by linear elements whose values are given by the first-order (linear) approximation of their characteristic curve near the bias point.

Considering this, what is small signal analysis?

Small-signal analysis assumes that the transistor is correctly biased and concentrates on the linear behavior for small signals, ignoring the messy non-linear stuff. The DC sources are zeroed, the signal sources are activated, and linear circuit analysis is used to solve for the small-signal voltages and currents.

What is small signal and large signal?

The small signal model accounts for the behavior which is linear around an operating point. When the signal is large in amplitude (say more than 1/5 of VCC, a rule of thumb) the behavior becomes non linear and we have to use the model which accounts for non-linearity , and thus called large signal model. Cite.

Related Question Answers

What are the parameters of FET?

Measurement of key FET Parameters

• Pinch off Voltage V_p The voltage needed to turn “OFF” a JFET.
• Threshold Voltage V. _T
• Channel Resistance R. _DS
• Power Dissipation P. _D
• Effective Charge Carrier Mobility µ _n
• Transconductance gain g_m (transfer admittance)
• Equipment Needs.

What is small signal model of BJT?

Small signal T model of BJT

This model represents that transistor as a voltage controlled current source with. control voltage v. be. and include the input resistance looking into the emitter.

What is pinch off voltage?

Pinch-off voltage may refer to one of two different characteristics of a transistor: in junction field-effect transistors (JFETs), "pinch-off" refers to the threshold voltage below which the transistor turns off.

Which of these is incorrect for a common gate amplifier?

7. Which of these is incorrect for a common gate amplifier? Explanation: A common gate amplifier can be used as a current buffer since its current gain is 1. It has very high output resistance (∞) and low input resistance.

What is are the function S of the coupling capacitors c1 and c2 in an FET circuit?

What is (are) the function(s) of the coupling capacitors C1 and C2 in an FET circuit? To pass desired ac signals by creating a short-circuit equivalent for ac analysis O c.

How a mosfet can be used to amplify a time varying voltage?

The advantage of the voltage divider biasing network is that the MOSFET, or indeed a bipolar transistor, can be biased from a single DC supply. Therefore if we apply a small AC signal which is superimposed on to this DC bias at the gate input, then the MOSFET will act as a linear amplifier as shown.

In which of the following configuration does a Mosfet works as an amplifier?

Explanation: There are three basic configurations for connecting the MOSFET as an amplifier. Each of these configurations is obtained by connecting one of the three MOSFET terminals to ground, thus creating a two-port network with the grounded terminal being common to the input and output ports.

Why is small signal analysis important?

Large signal analysis allows you find the DC operating point of a circuit. Small signal analysis allows you to find the result of applying a small (AC) signal on top of the DC operating points of a circuit.

What is small signal gain?

Small signal gain is the gain in the amplifier's linear region of operation. This is typically measured at a constant input power over a swept frequency. Gain can be calculated by subtracting the input from the output levels when both are expressed in dBm, which is power relative to 1 milliwatt.

What is small signal transistor?

Small Signal Transistors are transistors that are used to amplify low-level signals but can also can be used as a switch. As a design note, small signal transistors are used primarily when amplifying small signals, such as a few volts and only when using milliamperes of current.

What is small signal bandwidth?

The −3 dB unity-gain bandwidth of an amplifier with a small signal applied, usually 200 mV p-p. A low level signal is used to determine bandwith because this eliminates the effects of slew rate limit on the signal. Region.

What is a small signal diode?

The semiconductor Signal Diode is a small non-linear semiconductor devices generally used in electronic circuits, where small currents or high frequencies are involved such as in radio, television and digital logic circuits.

What is a small signal Mosfet?

Since the BJT case has been discussed, we will now focus on the MOSFET case. In the small-signal analysis, one assumes that the device is biased at a DC operating point (also called the Q point or the quiescent point), and then, a small signal is super-imposed on the DC biasing point.

What is signal modeling?

Signal Modeling. Page 1. Signal Modeling. The idea of signal modeling is to represent the signal via (some) model parameters. Signal modeling is used for signal compression, prediction, reconstruction and understanding.

How do you calculate small signal gain?

The small signal voltage gain A_v is the ratio of the input voltage to the output voltage: The input voltage V _in (v_be for the BJT and v_gs for the MOS) times the transconductance g _m is equal to the small signal output current, i_o in the collector or drain.

What are H parameters of BJT?

These are the four basic parameters for a BJT in common emitter. Typical values are h_re = 1 x10^-4, h_oe typical value 20uS, h_ie typically 1k to 20k and h_fe can be 50 - 750. The H-parameters can often be found on the transistor datasheets.

What is RO in BJT?

ro is the output resistance of the transistor. It represents the fact that the transistor is not an ideal voltage-controlled current source. Ro is the output resistance, so it should be the letter O and not the number 0.

What is re model of transistor?

The r_e model is an equivalent circuit that can be used to predict performance. The r_e Model. Small r_e is the resistance looking into the emitter terminal of a transistor. As there is a voltage on the base of a transistor and a current flowing in the emitter, then from ohm's law r_e = v/i, see diagram below.

What are the basic characteristics of a transistor small signal amplifier?

Small Signal Amplifiers are also known as Voltage Amplifiers. Voltage Amplifiers have 3 main properties, Input Resistance, Output Resistance and Gain. The Gain of a small signal amplifier is the amount by which the amplifier “Amplifies” the input signal.

What is large signal diode?

The semiconductor diodes are used as converters of AC signals to the non–zero DC signals which are called rectifiers. An especially wide rectifier is used in the DC voltage supplies that operate from the AC line.

What value of power is considered as small signal?

But, how small is small signal. To put this in perspective, a signal of 1V p-p can be considered as a small signal, if the supply voltage to a transistor circuit is 1000V. But when the supply is around 1V(which is the case, nowadays), small signal is a few micro or millivolts.

What is difference between voltage and power amplifier?

The crucial difference between a voltage amplifier and a power amplifier is that a voltage amplifier increases the voltage level of the applied input signal. As against, a power amplifier is the one that boosts the power level of the input signal.

What is meant by amplifier?

An amplifier is a circuit that has a power gain greater than one. An amplifier can either be a separate piece of equipment or an electrical circuit contained within another device. Amplification is fundamental to modern electronics, and amplifiers are widely used in almost all electronic equipment.
