What are the two types of relief valves?

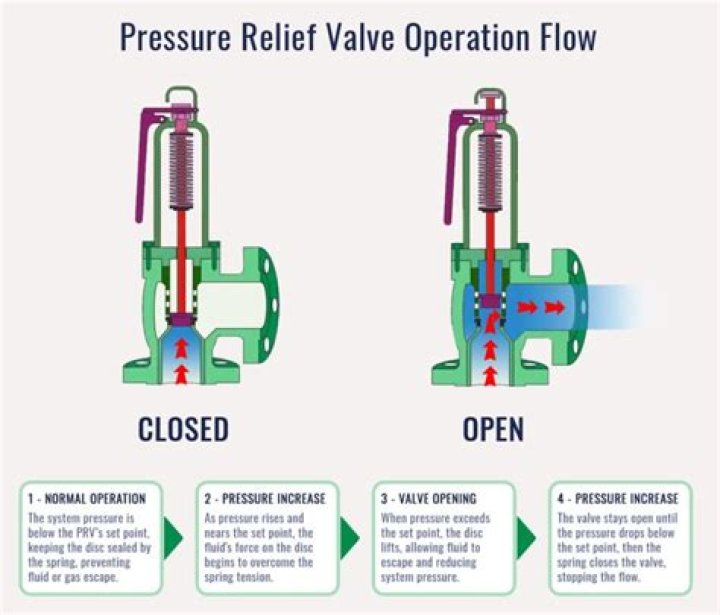

The three basic types of pressure-relief valves are conventional spring loaded, balanced spring loaded, and the pilot operated. Conventional spring loaded. In the conventional spring-loaded valve (Fig. 1), the bonnet, spring, and guide are exposed to the released fluids.

Similarly, what are the types of valves?

Different types of valves are available: gate, globe, plug, ball, butterfly, check, diaphragm, pinch, pressure relief, control valves etc. Each of these types has a number of models, each with different features and functional capabilities.

Beside above, what is the function of pressure relief valve? The pressure is relieved by allowing the pressurized fluid to flow from an auxiliary passage out of the system. The relief valve is designed or set to open at a predetermined set pressure to protect pressure vessels and other equipment from being subjected to pressures that exceed their design limits.

In this regard, how many types of PRV are there?

Safety Relief Valves There are two types of valves available with the safety relief valve manufacturers: Safety or pop-off valve – open an outlet completely when the set pressure exceeds, resulting in the excretion of the excess pressure through an additional valve.

How many type of valve are there?

Learn about 9 Different Types of Valves used in Piping such as Gate Valve, Globe Valve, Check Valve, Plug valve, Ball Valve, Butterfly Valve, Needle Valve, Pinch Valve and Pressure Relief Valve.

Related Question Answers

How do I choose a valve type?

Choose the right valve type. Every valve needs to perform one or more basic functions: Shut off flow. Divert flow.

Knowing where to start makes valve choice faster and easier

1. Valve size and type.
2. Materials of construction.
3. Performance requirements.
4. Check valve specific requirements.
5. Maintenance planning.

What are the uses of valves?

Valves have many uses, including controlling water for irrigation, industrial uses for controlling processes, residential uses such as on/off and pressure control to dish and clothes washers and taps in the home. Even aerosols have a tiny valve built in. Valves are also used in the military and transport sectors.

What is the use of butterfly valve?

The Butterfly valve is used to regulate and control, throttle the flow. They are featured by a fast operation and low-pressure drop. To make an open position from the closed, it requires only a quarter turn. Wafer, lug, Single-Flange, Flange are the regular types of butterfly valves.

What is the function of valve?

The valves prevent the backward flow of blood. These valves are actual flaps that are located on each end of the two ventricles (lower chambers of the heart). They act as one-way inlets of blood on one side of a ventricle and one-way outlets of blood on the other side of a ventricle.

What is a valve in the human body?

Valve, in anatomy, any of various membranous structures, especially in the heart, veins, and lymph ducts, that function to close temporarily a passage or orifice, permitting movement of a fluid in one direction only. A valve may consist of a sphincter muscle or two or three membranous flaps or folds.

What is the difference between PSV and PRV?

While the term PRV is sometimes used interchangeably with PSV, there is a difference between the two. A PRV opens gradually in relation to the pressure, while a PSV is opened suddenly once the pressure hits a certain level in order to avoid overpressurization and a potential process safety incident.

What does PRV mean?

prv means "private"

What is a PRV valve used for?

A relief valve or pressure relief valve (PRV) is a type of safety valve used to control or limit the pressure in a system; pressure might otherwise build up and create a process upset, instrument or equipment failure, or fire.

What are PRV and PSV?

Both are relief valves but serves different conditions. PRV is used when dealing with liquids and opens gradually with gradual increase in pressure whereas PSV is used when dealing with incompressible fluids especially gas phase where the opening must be spontaneous with the sudden increase in pressure.

How does a PRV valve work?

Pressure reducing valves are devices that work directly to slow down the pressure of water flowing into your home. They are installed on the main water line next to the shut-off valve. Water from the water main goes into the valve on one side.

What is a PSV valve?

A Pressure Safety Valve (PSV) is a type of valve used to quickly release gasses from equipment in order to avoid overpressurization and potential process safety incidents. PSVs are activated automatically when pressure exceeds prescribed pressure limits in order to return equipment pressure to a safe operating level.

What is blowdown pressure?

Blowdown. Blowdown is the difference between the set pressure and the reseating pressure of a safety or relief valve, expressed as a percentage of a set pressure or pounds per square inch.

What is set pressure of pressure relief valve?

Set pressure (PSIG) The set pressure, which is measured in pounds per square inch (PSIG), is the pressure at which a safety or pressure relief valve opens. The set pressure of the valve must not exceed the maximum allowable working pressure (MAWP) of the boiler or other vessel.

What is built up back pressure?

Superimposed pressure is the pressure in the discharge header before the pressure relief valve opens. Depending on the system, superimposed back pressure can be constant or variable. Built-up back pressure. Built-up back pressure is the pressure that develops as a result of flow after the pressure relief valve opens.

What happens if pressure relief valve fails?

Damage caused by a faulty pressure relief valve Oil pump pressure relief valves can fail in either the open or closed position. This can cause damage to the engine oil filter and to the engine itself. A pressure relief valve that is stuck open can allow too much oil to bleed off.

Where is pressure relief valve used?

A Relief Valve is a pressure relief device actuated by inlet static pressure having a gradual lift generally proportional to the increase in pressure over opening pressure. It may be provided with an enclosed spring housing suitable for closed discharge system application and is primarily used for liquid service.

What causes a pressure relief valve to fail?

Pressure relief valve leaks usually occur when the valve isn't properly seated or when the seal is broken or damaged. Leaks can also happen when the pressure relief valve is operating too closely to the set point.
