What are twin scroll turbos?

A twin-scroll turbocharger system requires a divided-inlet turbine housing AND a properly-designed exhaust manifold that pairs the correct cylinders to direct flow into each scroll independently. On a 4-cylinder application, the cylinder that fires first and the cylinder that fires third will be teamed on one scroll.

Also asked, is a twin scroll turbo a twin turbo?

Twin turbo means that there are two identical turbochargers used on the engine. Biturbo means there are two turbo chargers but they may or may not be identical. This nomenclature is typically used only by German manufacturers. Twin scroll means the pathway through the exhaust housing is split into two paths.

Similarly, do twin scroll turbos spool faster? The twin scroll turbos are spooling a bit faster, but its because the volume of the turbine housing is less due to the divider being there. Basically a . 82 standard housing has more flow potential than a .

Additionally, what does twin scroll turbocharger mean?

Conventional single-scroll turbochargers route those irregular pulses of exhaust into the turbine in a way that causes them to collide and interfere with one another, reducing the strength of the flow. In contrast, a twin-scroll turbocharger gathers exhaust from pairs of cylinders in alternating sequence. 2. SPIN.

How does BMW twin scroll turbo work?

The TwinPower Turbo (also called twin scroll turbo) is a single turbo powered from pairs of cylinders in an alternating sequence from two exhaust down tubes. The Twin Turbo Power has two turbos, each fed by one of the two exhaust down tubes.

Related Question Answers

Is twin scroll better?

The overlap of exhaust valve events between sequentially firing cylinders reduces engine performance and boost response. Twin-scroll turbocharger systems can either completely eliminate or substantially reduce this overlap period. A twin-scroll turbo system is simply a better mouse trap than a single-scroll.

Do twin scroll turbos need 2 Wastegates?

A twin scroll turbo will spool faster while maintaining the high end flow. They require a dual wastegate setup because you have two separate ports that exhaust is flowing through. And if you combine those two exhaust flows then you have just defeated the purpose of the twin scroll.

Is Twin Turbo better than single?

Twin Turbo. Each turbo only needs the exhaust from 4 cylinders to spool it, so they are able to spool much faster than a single kit. Smaller turbos in a twin turbo kit can also make very similar power as a larger single turbo. Less lag for the similar power gain, but there's still the cost to think about.

Do twin turbos spool faster?

A larger turbo capable of more horsepower can spool just as fast or faster than a pair of twin turbos.

What is a twin scroll EcoBoost engine?

No one wants turbo lag, so Ford has decided to go with the twin-scroll setup on the new EcoBoost engines. This system pairs cylinders to one side of the turbine inlet and allows kinetic energy from the exhaust to be recovered by the turbine in a better way.

Do twin turbos have turbo lag?

Twin Sequential Turbocharger To avoid lag problems, the smaller turbocharger maintains quick response at lower engine speeds and also helps to spool the larger turbocharger via the increased exhaust flow.

Is the 328i twin turbo?

Yes, 328i (245 hp)xDrive steptronic and 328i xDrive[2013–2015] are twin-turbo; twin-turbo are also the 2012–2015 produced 328i automatic and 328i - those are from the Touring (F31) generation. The F34 Gran Turismo's 328i cars are also twin turbo.

What causes turbo lag?

WHAT CAUSES TURBO LAG? Turbo lag is caused by low engine speeds. Basically, when the car is coasting or power is not being applied, there are not enough exhaust gases to spool the turbine/s.

Is n55 twin turbo?

The BMW N55 is a turbocharged straight-six petrol engine that began production in 2009. The N55 was BMW's first straight-six engine to use a twin-scroll turbocharger. It also won three straight Ward's 10 Best Engines awards in 2011-2013.

What is a twin scroll supercharger?

A twin-screw supercharger operates by pulling air through a pair of meshing lobes that resemble a set of worm gears. Like the Roots supercharger, the air inside a twin-screw supercharger is trapped in pockets created by the rotor lobes. But a twin-screw supercharger compresses the air inside the rotor housing.

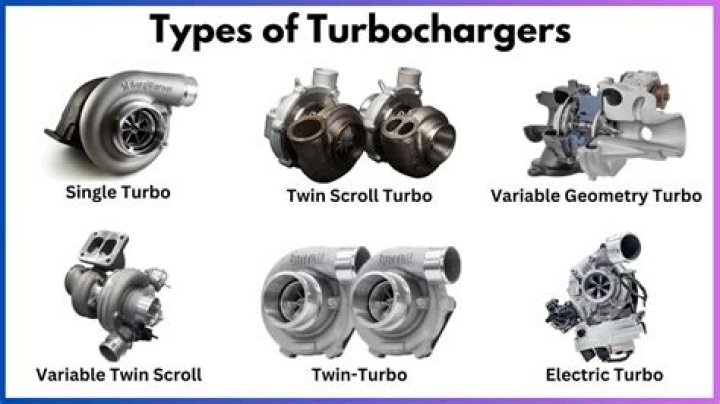

How many types of turbocharger are there?

Engineering Explained: 6 Different Types Of Turbocharger And The Advantages Of Each Setup. The world of turbocharging has about as much variety as engine layouts. Let's take a look at the different styles: Single-Turbo.

What's the difference between t3 and t4 Turbo?

The T3 does happen to be more rectangular (meening the length:width ratio is larger). They are entirely different. Neither one can be made to work with the other. A T3/T4 turbo is a turbo with a T3 (small frame) turbine side that has been mated to a larger frame compressor wheel.

How do variable vane turbos work?

A turbocharger equipped with Variable Turbine Geometry has little movable vanes which can direct exhaust flow onto the turbine blades. The vane angles are adjusted via an actuator. The high exhaust flow at high engine speeds are fully directed onto the turbine blades by the variable vanes.

What does VGT mean?

Variable-geometry turbochargers

What is t3 t4 Turbo?

T3/T4 hybrid turbochargers are made with a T3 turbine section, and a T4 compressor section, The T3/T4 offers the low inertia and fast boost response of the light weight T3 and the high airflow of the T4 compressor, ideal for your next turbo upgrade.

How does a turbo work?

The turbocharger on a car applies a very similar principle to a piston engine. It uses the exhaust gas to drive a turbine. This spins an air compressor that pushes extra air (and oxygen) into the cylinders, allowing them to burn more fuel each second.

How does a supercharger work?

A supercharger is an air compressor that increases the pressure or density of air supplied to an internal combustion engine. This gives each intake cycle of the engine more oxygen, letting it burn more fuel and do more work, thus increasing power.

Which BMW has twin turbo?

The BMW 135i, 335i/is, 535i, 640i, 740i/Li, X3 xD35i, X5 xD35i, X6 xD35i, and the Z4 xD35i/is have BMW's famous 3.0 Litre Inline-6 Twin Turbo engines that produces 300hp/300tq (the 640, 740 has a tweaked twin turbo engine that makes 315hp/332tq, and 315hp/330tq, respectively; whereas the 335is/Z4xD35is makes 320hp/

Is BMW 320d twin turbo?

No, they are twin turbo, one small for low down revs and one big for high revs.

What BMW models have the n54 engine?

BMW N54: Applications You can find the N54 in various forms in the 135i, 1-series M-Coupe, 335i and 335is, 535i, X6, Z6, 740i, and Z4 sDrive35is.

Does the BMW 325i have Turbo?

Later, BMW introduced the 325i with 184 horsepower coming from a 2.5-liter inline-six and the 330i with a 3.0-liter six-cylinder engine producing 225 horsepower. Later, BMW introduced the 328i with a 3.0-liter inline-six producing 230 horsepower, and the 335i that included a turbocharged 3.0-liter six-cylinder engine.

Is a 335i a twin turbo?

The 335i, then, is a twin-turbocharged direct-injection 3.0 that makes 75 percent of the expected power of next year's M3 V-8. The world's first twin-turbo inline-six, according to the Bavarian automaker, is its future in providing efficient high performance.

Is BMW TwinPower Turbo Oil synthetic?

BMW TwinPower Turbo 5W30 Synthetic Engine Oil. AVAILABLE WHILE SUPPLIES LAST. BMW has replaced the 5W30 TwinPower oil with a BMW TwinPower 0W30 Synthetic, which is specifically designed and recommended for the newer turbo engine models.

Is the BMW 335i Twin Turbo?

The twin turbo 335i has been updated, and lost a turbo.

Which 3 Series BMW has a turbo?

Fifth generation (E90/E91/E92/E93; 2004–2013) In 2006, the 335i became the first 3 Series model to be sold with a turbocharged petrol engine.

Is the 2009 BMW 335i Twin Turbo?

For 2009, BMW has introduced the 335d sedan, with a new-age diesel engine that's as clean as any of its gasoline counterparts. The upgrade twin-turbo six in the 335i is one of the most viscerally satisfying engines in production.
