What does CCVT stand for?

Canadian Centre for Victims of Torture

Accordingly, what does a CCVT do?

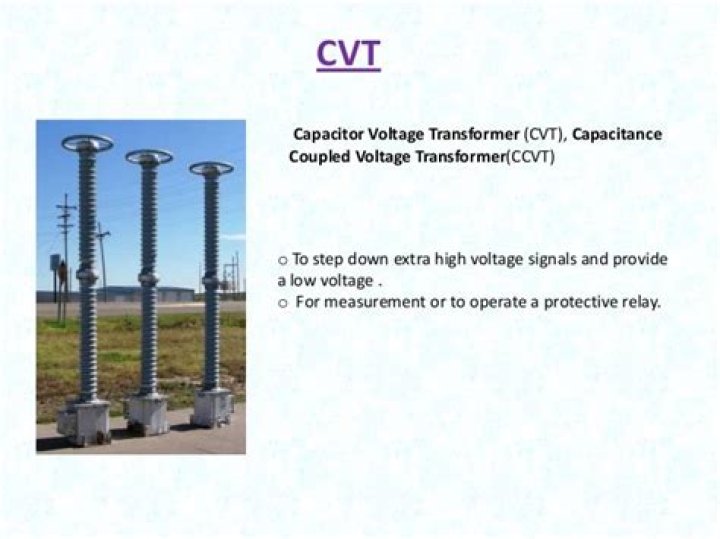

A capacitor voltage transformer (CVT or CCVT), is a transformer used in power systems to step down extra high voltage signals and provide a low voltage signal, for metering or operating a protective relay.

Also, what is the difference between capacitive voltage transformer and potential transformer? Difference between Capacitive Voltage Transformer and Potential Transformer. Also the CVT's can be tuned to the fundamental frequency of the line, and the capacitance prevents the inductive fire-back of the coils in the transformer when a breaker trips. PT's can't provide such advantage.

Similarly, it is asked, why we use CVT instead of PT?

CVT means capacitive voltage transformer which is connected. both r using measuring and protection purpose but CVT we can use communication purpose.in CVT capacitor acting as a potential divider. CVT & PT both are protection & measuring devices. CVT is used for high voltages above 132 Kv while Pt is used below this.

What is inductive voltage transformer?

Inductive voltage transformers are designed to provide a scaled down replica of the voltage in the HV line and isolate the measuring instruments, meters, relays, etc., from the high voltage power circuit. Ideal for installation at metering points due to its very high accuracy class.

Related Question Answers

Why CT and PT are used in substation?

In substations the value of currents and voltages is very high, practically it is not possible to measure such high values directly. So CT and PT is used to step down the value of current and voltage respectively. This proportionate low value of current and voltage can be measure with the help of ammeter and voltmeter.

Why wave trap is used in substation?

Wave trap is installed in the substation for trapping the high frequency communication signal sent on the line from remote substation and diverting them to the telecom panel in substation control room. So a wave trap is connected between buses and the transmission line which allow only 50 Hz signal to pass through it.

How does a ferroresonant transformer work?

A basic ferroresonant transformer consists of a core, a primary winding, two secondary windings (one for the load and one for the capacitor) and a magnetic shunt that separates the primary and secondary windings. The voltage induced in the capacitor winding by the primary flux causes a capacitive current to flow.

What is capacitance in transformer?

Capacitance occurs in transformers due to the physical proximity of, and electrostatic coupling between, different turns of wire. In general, the capacitance is distributed between the different layers within a winding, and between the outside layer of one winding and the inside layer of the next.

What is CT and PT?

CT or Current Transformer & PT or Potential Transformer are measuring devices in AC system. These are also called as instrument transformers.

What is CVT and IVT?

A classic CVT uses a belt between two cones to vary the gear ratios. An IVT is basically a CVT with a zero ratio, for example due to being attached to a planetary gear set. Why should you avoid buying a car with a continuously variable transmission (CVT)?

Why is PLCC used in a substation?

PLCC in modern electrical power system substation is mainly used for following purpose: Carrier protection relaying of transmission line so that: Inter trip command can be issued by relay due to tripping of circuit breaker at any one end.

What is difference between CVT and IVT?

A classic CVT uses a belt between two cones to vary the gear ratios. An IVT is basically a CVT with a zero ratio, for example due to being attached to a planetary gear set. There's really not much of a difference besides the IVT not really needing a torque converter since it can always be in gear.

What is a PT in a substation?

A potential transformer (PT) is a sensor devise which is used to measure high voltages on transmission lines and substations. The focus here is more on linearity and stability of performance rather than efficiency, as required in distribution and transmission transformers.

What is wave trap in transmission line?

Wave trap is used to create high impedance to the carrier wave high frequency communication entering in to unwanted destinations typically substation. These high frequency damages the power system components which are designed to operate 50 or 60 Hz. Wave traps are also called as line traps.

How is inductance calculated?

Now that you have values for L, D and N, you can do the calculation. Compute the inductance by squaring both N and D. Then multiply the squares and divide the result by (18D + 40L). This will give you the inductance in microhenrys.

Why CVT is used instead of PT?

CVT & PT both are protection & measuring devices. CVT is used for high voltages above 132 Kv while Pt is used below this. CVT has an added advantage that it can be used for carreir communication.

What is electrical CVT?

A capacitor voltage transformer (CVT or CCVT), is a transformer used in power systems to step down extra high voltage signals and provide a low voltage signal, for metering or operating a protective relay.

How does a capacitive voltage transformer work?

Capacitive Voltage Transformer Working The capacitive potential divider step-down the extra high voltage signals into a low voltage signal. The capacitor or potential divider is placed across the line whose voltage is used to be measured or controlled.
