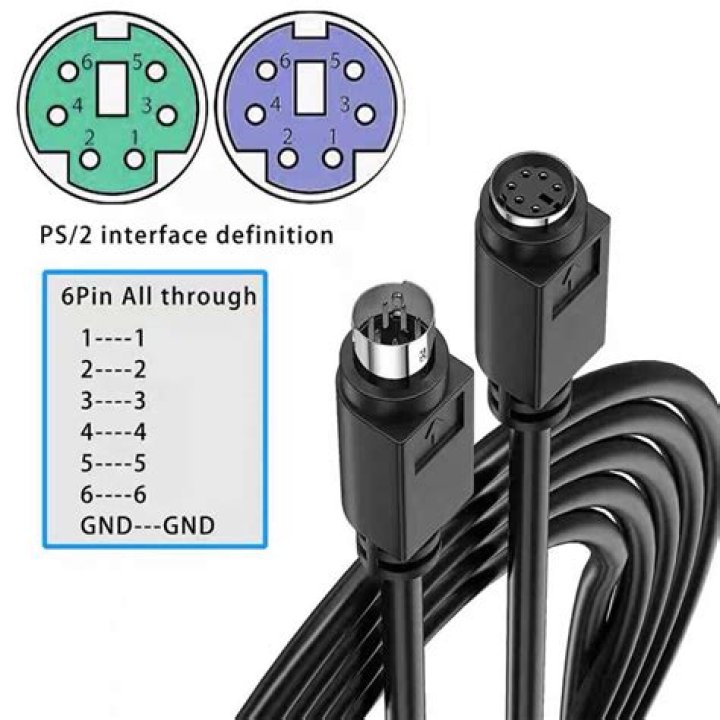

What is a 6 pin mini DIN?

Mini-DIN-6 connectors were used for IBM PC compatible PS/2 keyboard and mouse ports and for Acorn Archimedes keyboards (prior to the A7000 were proprietary, A7000 and later were standardised PS/2). Mini-DIN-7 and Mini-DIN-9 connectors have been used for a variety of audio and video applications.

Subsequently, one may also ask, what is the difference between Din and mini DIN?

As the name suggests, mini-DIN connectors are smaller in size than a regular DIN. They are still round, but with the pins arranged in horizontal rows rather than in a circular pattern. Mini-DIN connectors are used for S-video connections, PS/2 mouse & keyboards, and some other applications.

One may also ask, what is 6 pin cable? 6-pin power connectors are typically found in low and mid-range graphics cards. The 6-pin power connector has 4.2mm pitch and can pull up to 75 watts of power directly from an external power supply, bypassing the motherboard entirely.

Besides, what does a DIN cable do?

The 180° five-pin connector was sometimes used to connect a stereo recorder to an amplifier using four of the pins for a connection and one to ground. This was sometimes called a DIN cord, DIN lead or DIN cable. The cable has a connection on both ends with each pin matching up to the other pin.

Is 5 pin DIN the same as MIDI?

DIN refers to a number of connector types, but a 5 pin DIN cable is basically a MIDI cable.

Related Question Answers

What is a 4 pin Berg connector?

The 4-pin Berg connector is commonly known as the floppy power connector, as it was used for connecting the 3.5-inch floppy disk drive to the power supply unit. It is the most popular Berg connector.

How do you wire a DIN plug?

So how to attach a DIN plug to a cable?

1. Take the cable and snip off a few centimetres of plastic and remove padding.
2. Make sure that each core fits neatly into holes of DIN plug.
3. Solder the core wires together and test that they still fit the holes in the plug.
4. (Now comes the fiddly part).

What is DIN EN standard?

DIN Standards are the results of work at national, European and/or international level. Anyone can submit a proposal for a new standard. Standards are developed with full consensus, that is, they are developed by experts with the aim of arriving at a common standpoint, taking the state of the art into consideration.

What are different types of connectors?

Types of Connectors

• Box-to-box or input/output.
• Wire-to-board.
• Chip-to-package.
• Package-to-board.
• PC board-to-board.

What is a DB cable?

The DB style connector is a common connector ufd in many computer, audio/video, and data applications. The official name is D-subminiature, but many people call it "D-sub" or just "DB". The connector gets its name from its trapezoidal shape that resembles the letter "D". Most DB connectors have two rows of pins.

What is ps2 DIN connector?

The PS/2 port is a 6-pin mini-DIN connector used for connecting keyboards and mice to a PC compatible computer system. Its name comes from the IBM Personal System/2 series of personal computers, with which it was introduced in 1987.

What is the difference between Din and XLR?

Before looking at the actual performance of these connectors I must first explain that RCA can only support a “single ended” electrical interface, DIN typically supports a single ended electrical interface and XLR typically supports a “balanced” interface. a DIN connector can carry both left and right channels.

What does XLR stand for?

External Line Return

What is the function of p4 power connector?

The 4 pin power connector cable (12 volt cable) is designed to give extra power support to the motherboard. These two extra 12 volt cables (two yellow, two black) give the motherboard the option of accessing more power (through these cables). They generally help support the CPU but can be used for other things.

What are banana connectors used for?

So named for its resemblance to a favorite source of potassium and pratfalls, the banana plug is used to finish off the exposed ends of speaker wire and make them easier to plug into your receiver or speakers.

What is a DIN rail terminal block?

DIN rail and channel terminal blocks are rack or box mount connection points for securing two or more wires to a circuit or power bus. Certain types may include a single or dual disconnect fuse or switch feature, feed-through capability, grounding, built-in indicators and resistors, isolation and circuit protection.

What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments.

What is the round connector called?

circular interconnects

What is ad shell connector?

A D-shell connector is mainly used in video connections. Its name comes from its shape, as it is roughly shaped like the letter D, and it finds various applications in RS-232 serial communications. A D-shell connector is also known as a D-subminiature connector or a D-sub connector. Advertisement.

Is Sata to 6 pin safe?

If you are trying to use a SATA power to 6-pin PCI-e adapter to power a GPU, is not a good idea. Your PSU does not have 6-pin PCI-e because is not able to deliver the power (AMPs or voltage or both) a GPU needs. You could cause damage the PSU or the GPU or both.

Is Molex to 6 pin safe?

A single molex connector is rated for 5A of current, so that's max 5 x 12v = 60 watts. A 6 pin pci-e connector is rated for 75w so technically an adapter that converts 2 molex into 6 pci-e should be able to easily provide 75w to video card without the connectors overheating or burning up.

Can I plug a 6 pin into an 8 pin GPU?

Incorrect. You need the same amount of ground wires as +V wires . 6 pin is (3) +VDC and (3) GND, 8 pin is (4) +VDC and (4) GND. If you used 2 +V wires and 3 GND wires on a connector the 3rd GND is pointless as nothing can flow into the circuit greater than what the 2 +V wires supply.

Can you use a 4 pin on a 6 pin motherboard?

No, the 6-pin connector is only for PCIe device and would fry your CPU/mobo. You PSU absolutely has a 4-pin connector (all ATX PSUs in the last 8+ years do). It might be a 4+4 pin plug the plug can split in two.

What is 6 pin PCIE cable for?

This connector is used to provide extra 12 volt power to PCI Express expansion cards. Many video cards draw significantly more than 75 watts provided by the motherboard slot, so the 6 pin PCI Express power cable was created.

Is a 6 2 pin the same as an 8 pin?

The only difference between 6+2 and 8 pin is the fact that you can detach the other pins for compatibility with 6 pin PCI-E devices. There is no electrical difference between 8 and 6+2 PCI-E cables.

Are all 8 pin connectors the same?

They are completely different. The EPS connector is meant to supply power to a motherboard cpu socket while the PCI express connector is meant to supply power to a GPU.

How much power does a 6 pin connector provide?

75 watts

Can you run a graphics card without a 6 pin?

The graphics card needs the additional power, and no, it won't run without it.
