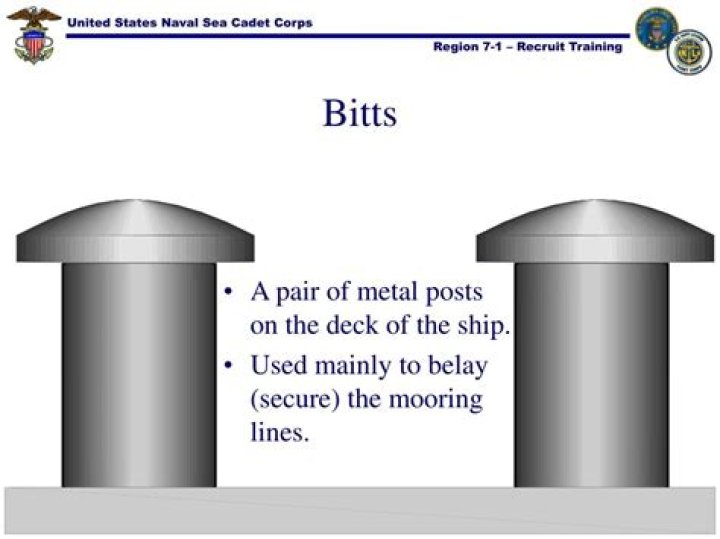

What is a Bitt on a ship?

Bitts are paired vertical wooden or metal posts mounted either aboard a ship or on a wharf, pier or quay. The posts are used to secure mooring lines, ropes, hawsers, or cables.

Just so, what is a chock on a ship?

Chock. A guide for a mooring line, or steel towing wire which enables the line to pass through a ship bulwark or other barrier. See also Fairlead, and Arrangement of chocks and bitts for transit of Panama Canal. - Double chock – A large chock capable of withstanding the stress caused by a load of two towing wires.

Similarly, what are the types of mooring lines? There are basically three main mooring line types. A mooring line system can consist of chain mooring lines, wire mooring lines or synthetic fiber ropes or a combination of the three. In shallower water (up to 100 m) the chain mooring line is the most common type of mooring line.

Also Know, what is a bollard on a ship?

A bollard is a sturdy, short, vertical post. The term originally referred to a post on a ship or quay used principally for mooring boats, but is now also used to refer to posts installed to control road traffic and posts designed to prevent ram-raiding and vehicle-ramming attacks.

What are moorings used for?

A mooring system is made up of a mooring line, anchor and connectors, and is used for station keeping of a ship or floating platform in all water depths. A mooring line connects an anchor on the seafloor to a floating structure.

Related Question Answers

What is the deadweight of a ship?

Deadweight tonnage (also known as deadweight; abbreviated to DWT, D.W.T., d.w.t., or dwt) or tons deadweight (DWT) is a measure of how much weight a ship can carry, not its weight, empty or in any degree of load. DWT is the sum of the weights of cargo, fuel, fresh water, ballast water, provisions, passengers, and crew.

What is GRT NRT and DWT?

GRT = gross registered tonnage (old name, name it is called as GT by new convention) GT = gross tonnage. It is the function of ship's total volume. NRT = net registered tonnage (old name, it is now called as NT by new convention)

What is NRT and GRT?

Although GRT (gross register tonnage), GT (gross tonnage), NRT (net register tonnage) and NT (net tonnage) are called tonnages, none of them measure weight. They are all terms that refer to a ship's internal volume, measured in tuns. The volume of a tun is 100 cubic feet, or 2.83 cubic metres.

What is the difference between Gangway and accommodation ladder?

Although, their purpose is the same . i.e to serve as a link / bridge between the ship and the shore, their rigging and usage is different. Gangways are rigged at right angles to the fore and aft line of the ship. Accommodation Ladders are rigged in the fore and aft direction of the ship and face astern.

What does gross tonnage on a ship mean?

Definition: Gross Registered Tonnage (GRT) is the volume of space within the hull and enclosed space above the deck of a merchant ship which are available for cargo, stores, fuel, passengers and crew. Description: Gross Registered Tonnages are actually measurements of cubic capacity.

How do you calculate displacement of a ship?

The displacement or displacement tonnage of a ship is its weight based on the amount of water its hull displaces at varying loads. It is measured indirectly using Archimedes' principle by first calculating the volume of water displaced by the ship then converting that value into weight displaced.

What is difference between watertight and weathertight?

Weathertight Doors are primarily located above the waterline of the vessel. They are designed to prevent ingress of water from outside to inside. Watertight doors are located below deck level and are designed to open and close upwards or sidewards (usually by automatic means).

What is mot ladder?

The accommodation ladder is a one point access to ship's deck for shore personal, port lashing/cargo crew and seafarers.

What is a bollard sign?

The Bollard Sign Systems are a maintenance-free system that utilizes a traditional steel post sleeved in an Ideal Shield bollard cover and a 1-1/4” steel pipe sleeved in plastic.

What is a bollard made of?

They usually consist of a simple steel post either anchored to concrete, cored into a hard surface, buried in the ground or secured on a self-locking taper or impact recovery system to protect the surrounding foundations when a bollard is struck.

What is a mooring bollard?

Mooring bollard is a vital component of any mooring system. It is the anchor point for mooring lines to be fixed in order to secure the vessel. It is usually a short post on a quay / jetty. Ductile iron, cast steel and stainless steel are some of the main materials used to make marine bollards.

What are concrete posts called?

A bollard is a sturdy, short, vertical post. The term originally referred to a post on a ship or quay used principally for mooring boats, but is now also used to refer to posts installed to control road traffic and posts designed to prevent ram-raiding and vehicle-ramming attacks.

Who invented bollards?

Furnitubes began casting bollards in the 1940s with one of the earliest designs being the Cannon bollard. Its design was shaped around the cannons from ships, which were widely used as bollards during the Victorian era.

What are the yellow poles called?

Part of a baseball field, a foul pole is the tall, narrow, usually yellow pole that stands at the very end of both foul lines in every ballpark.

How do you calculate lightweight of a ship?

You have to calculate the lightship weight by doing a weight survey. If you know the draft, trim, and heel of the vessel and the density of the water it's floating in, you can determine the overall weight of the vessel at the time of the survey from the hydrostatics.

What is Bollard in construction?

A bollard is a short post used to create a protective or architectural perimeter. When installed primarily as a visual guide, bollards guide traffic and mark boundaries. Bollards can also be constructed to physically block vehicle incursion, protecting people and property.

Do bollards stop cars?

Bollards are becoming well-known in North America for their use in security perimeters, where they are crash-rated, or installed as security posts, to prevent vehicles from entering a protected area. Low-impact bollards, that don't provide vehicle stopping power, have been popular for centuries in Europe and the UK.

How heavy is a ship anchor?

The anchor and chain system aboard the USS Ford is very, very heavy. The anchor itself weighs 30,000 pounds. The chain is 1,440 feet long and each link weighs 136 pounds.

What is it called when a ship comes into port?

Port of call means an intermediate stop for a ship on its scheduled journey for cargo operation or taking on supplies or fuel. For cargo ships, a port of call is a port attended within a voyage to load or unload the cargo, or for bunkering or repairs carried out on the ship etc.

What is a mooring rope called?

TYE. Mooring rope. HAWSER. The chain of an anchor; a heavy rope used for mooring a ship; or, one tenth of a nautical mile (5) CNOTE.

What is the difference between mooring and berthing?

Mooring = making fast to a strong point. Berthing = Parking of a ship to the quay (the whole process). When the term mooring is used, it refers to a ship/boat/vessel being made fast to something, it could be a buoy, bollard or another ship using ropes or wire lines.

What is Baltic mooring?

Baltic mooring is a combination mooring of a vessel alongside the berth which employs a stern mooring shackled to the offshore anchor cable in the region of the “ganger length”. Baltic mooring is a safe option to berth a ship on a windy day.

What is the difference between docking and mooring?

What's the Difference Between Docking and Mooring? The biggest difference between docking and mooring your boat is the equipment that you use. When you dock your boat alongside a wharf, dock, or pier, you will need dock lines, fenders, and other equipment to secure your vessel.

How long should mooring lines be?

Mooring lines should be about one-and-a-half to two times the length of your boat. The minimum length of a mooring line should be half the length of your boat. The length depends on your boat and how close you want it tied to the dock.

What is 4 point mooring system?

Complete 4-Point Mooring system, consisting of 4 x hydraulic winches (2 x rh & 2 x lh). 4 x 1000 m x 38 mm wires, 5 x 5 t Delta Flipper anchors, 4 x fairleads, 8 x horizontal and vertical leading sheaves as well as 4 x local control units and 1 x central control unit.

How are moorings installed?

The mooring buoy concept is simple: install a mooring buoy close to or over a site where boats traditionally anchor. Instead of anchoring, boat users tie off to the mooring and this lessens damage. Mooring buoys can also be used as an ongoing aid to coral reef conservation.

What is mooring equipment?

Mooring Equipment. A ship's mooring equipment includes mechanisms, such as winches and capstans, that are used to take in and pay out mooring lines, which are ropes or steel cables.

How are deep sea buoys anchored?

They are filled with air, which is lighter than water so it goes to the surface, like a bubble and has a rope with an anchor attached to it making it stay in place and not move.

What is a running mooring?

A running mooring in basic terms is a mooring where there is an endless loop of line running through a block attached to a sinker on the seabed and a block fixed securely ashore.

What is mooring and unmooring?

MOORING AND UNMOORING OF VESSELS. The unmooring service is understood as the service whose object is to release and cast off the lines of a vessel from the fixtures to which it is moored, following the sequence and instructions issued by the captain, and without affecting the mooring conditions of contiguous vessels.

What side do ships pass each other?

A boat must always be navigated on the starboard side (right) of a river or channel. Each boat alters course to starboard (right) and passes port to port (left). Always assume this situation exists. A boat approaching from your starboard (right) side has right of way.
