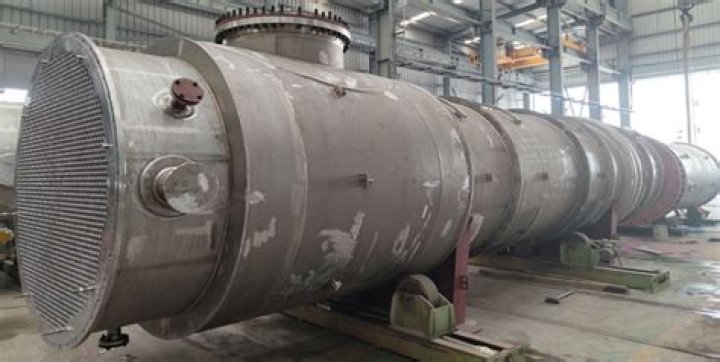

What is a calandria evaporator?

The calandria evaporator has a heat exchanger (with tubes usually less than six feet long) integral with the vapor body. The level is maintained in the upper portion of the tubes or above the top tubesheet, and the circulation pattern is up through the tubes and down through a central pipe called a “downcomer”.

Similarly, which evaporator contains Calandria?

The short-tube vertical evaporator, Figure 12.8(d), also known as the calandria or Robert evaporator, was the first evaporator to be widely used. Tubes 4′ and 8′ long, often 2″ to 3″ in diameter, are located vertically inside a steam chest enclosed by a cylindrical shell.

Beside above, what is evaporator and its types? Uses. One kind of evaporator is a kind of radiator coil used in a closed compressor driven circulation of a liquid coolant. A different kind of evaporator can be used for heating and possibly boiling a product containing a liquid to cause the liquid to evaporate from the product.

Regarding this, what is calandria and its importance?

: a heating element of an evaporator especially : a part of a vacuum evaporating system in which the liquid to be concentrated rises through tubes surrounded by steam and descends through a central well. calandria. noun (2) " plural -s.

What is a single effect evaporator?

In a single-effect evaporator, steam provides energy for vaporization and the vapor product is condensed and removed from the system. In a double-effect evaporator, the vapor product off the first effect is used to provide energy for a second vaporization unit.

Related Question Answers

What is the principle of evaporator?

The evaporator works the opposite of the condenser, here refrigerant liquid is converted to gas, absorbing heat from the air in the compartment. When the liquid refrigerant reaches the evaporator its pressure has been reduced, dissipating its heat content and making it much cooler than the fan air flowing around it.

How do you make an evaporator?

Steps in calculation of evaporator design:

1. Mean dia of the tube ( Dm) in mtr = Tube OD- Tube Thickness ( In some designers also take ID of the tube in the place of mean dia.
2. Effective Length of the tube ( L ) = Tube length – 2(Tube plate thickness)-2(Tube expansion allowance)

What is natural circulation evaporator?

Natural circulation in an evaporator is caused by the thermal difference between the heating medium and the liquid. The mixture of vapor and liquid merges from the tubes and enters the upper chamber from which it passes through a short connection into the vapor separator.

What is forced circulation evaporator?

Forced Circulation Evaporator. In a forced circulation evaporator, liquor is pumped from the bottom cone of the vapor body through the tubes of the heat exchanger, where heat is added, and back into the vapor body where evaporation occurs.

How does a falling film evaporator work?

In falling film evaporators, the liquid product usually enters the evaporator at the head of the evaporator. The liquid enters the heating tube and forms a thin film on the tube wall where it flows downwards at boiling temperature and is partially evaporated. In most cases, steam is used for heating the evaporator.

What is short tube evaporator?

Short-tube vertical evaporators are the oldest but still widely used in sugar industry in evaporation of cane-sugar juice. Short-tube vertical evaporators consist of a short tube bundle (about 4 to 10 ft in length) enclosed in a cylindrical shell. This is called calandria.

How does multiple effect evaporator work?

In a multiple-effect evaporator, water is boiled in a sequence of vessels, each held at a lower pressure than the last. Multiple effect evaporation commonly uses sensible heat in the condensate to preheat liquor to be flashed.

How does an industrial evaporator work?

An evaporator is a heat exchanger designed whose purpose is to heat a given compound and separate water through evaporation. Traditionally, evaporators are used in industrial processes. In this case, after evaporation takes place, the steam is expanded in a turbine.

How does a calandria work?

Calandria, a tubular heat exchanger that heats wort quickly and efficiently, enabling it to be boiled vigorously in the kettle. Wort requires a long vigorous boil, normally of 60–120 minutes. In an internal calandria, convection forces the wort up through the vertical bundle of tubes, where it is superheated by steam.

What does calandria mean?

Definition of calandria. (Entry 1 of 2) : a heating element of an evaporator especially : a part of a vacuum evaporating system in which the liquid to be concentrated rises through tubes surrounded by steam and descends through a central well.

What is the function of the evaporator?

An evaporator is a device in a process used to turn the liquid form of a chemical substance such as water into its gaseous-form/vapor. The liquid is evaporated, or vaporized, into a gas form of the targeted substance in that process.

What are the different types of evaporators?

The types of evaporators in this category include:

• Climbing Film Evaporator.
• Short-tube Vertical Evaporator.
• Basket-type Evaporator.
• Long-tube Vertical Evaporator.
• Plate Evaporators.
• Horizontal Tube Shell-Side Evaporator.

What is a falling film evaporator used for?

A falling film evaporator is an industrial device to concentrate solutions, especially with heat sensitive components. The evaporator is a special type of heat exchanger.

Where is the evaporator located?

An air conditioner's evaporator coil, also called the evaporator core, is the part of the system where the refrigerant absorbs heat. That is, it's where the cold air comes from. The evaporator coil is located inside or near the air handler where the blower fan is.

What is the difference between condenser and evaporator?

The evaporator coil contains cold refrigerant that absorbs heat from your air. The condenser coil is where the refrigerant goes to get rid of this heat so it can can come back to absorb more. The evaporator coil is located indoors, inside or near your air handler.

How does a milk evaporator work?

Process flow The milk then continues to the first effect (4) of the evaporator, which is under a vacuum corresponding to a boiling temperature of 60 °C. The water evaporates and the milk is concentrated as the thin film of milk flows downwards in the tubes.

How do you clean an evaporator coil?

Mix warm water and a simple detergent in a spray bottle, hand sprayer or garden sprayer. Apply the water and detergent solution to the evaporator coils. Give the solution a few seconds to a few minutes to soak in and loosen debris.

What is evaporator in boiler?

Evaporator. Evaporator sections are where the boiling process or steam generation occurs. As heat energy is absorbed by water from the gas stream, the water temperature increases. When water reaches the boiling point or saturation temperature, some of the water evaporates or vaporizes to steam.

What is Evaporator in chiller?

The chillers evaporator is a heat exchanger that transfers heat from a process or air conditioning water circuit to the chillers cooler liquid refrigerant.

What is the difference between heat exchanger and evaporator?

What Is The Difference Between Evaporator And Heat Exchanger? Evaporator is the machine inside the air conditioner. Heat exchanger is the machine outside the air conditioner. If heating, exchange the internal and external machines.

What is a flooded evaporator?

First, a "flooded evaporator" is a type of evaporator used in what is generally referred to as a "chiller" system. It means that the evaporator (generally a barrel or drum type vessel) is literally flooded with refrigerant.

What is evaporator in HVAC?

An air conditioner's evaporator coil, also called the evaporator core, is the part of the system where the refrigerant absorbs heat. As the air conditioner runs, the compressor pulls cold, low-pressure liquid refrigerant through the tubing in the evaporator coil.

What is meant by evaporator?

An evaporator is a device in a process used to turn the liquid form of a chemical substance such as water into its gaseous-form/vapor. The liquid is evaporated, or vaporized, into a gas form of the targeted substance in that process.

What is evaporator capacity?

• Capacity of evaporator is defined as the number of kilograms of water vaporized/evaporator per hour. The rate of heat transfer Q the heating surface of evaporator is the product of heat transfer heat transfer surface area and the overall temperature drop.

How many types evaporator?

4) Shell and Tube types of Evaporators Depending on the direction of the flow of the refrigerant in the shell and tube type of chillers, they are classified into two types: dry expansion type and flooded type of chillers.

What is the economy of an evaporator?

9. Economy of evaporator Economy (or steam economy) is the number kilogram of water vaporized from all the effects per kilogram of steam used.

What is thermal efficiency of an evaporator?

Thermal efficiency of evaporators The measure of thermal efficiency of an evaporator train is called the steam economy (unit of water evaporated per unit of steam used) and the steam economy is directly related to the number of thermal effect in the train.

How does a vacuum evaporator work?

The vacuum evaporation treatment process consists of reducing the interior pressure of the evaporation chamber below atmospheric pressure. This reduces the boiling point of the liquid to be evaporated, thereby reducing or eliminating the need for heat in both the boiling and condensation processes.

How is evaporator capacity calculated?

Multiply the answer by your proposed volumetric flow rate, measured in gallons per minute. If the evaporator must move 400 gallons per minute: 14 x 400 = 5,600. Multiply the answer by 500: 5,600 x 500 = 2,800,000. This answer is the evaporator's size, measured in BTUs per hour.

What is the economy of multi effect evaporator?

The primary means of increasing the steam economy of an evaporator is to reuse the latent heat of the water vapor. A multiple-effect evaporator uses the water vapor from one effect as the heating medium for the next effect, which operates at a lower boiling point.

How is steam economy calculated in evaporator?

AND ECONOMY) Economy (or steam economy) is the number kilogram of water vaporized from all the effects per kilogram of steam used. For single effect evaporator, the steam economy is about 0.8 (<1). The capacity is about n-times that of a single effect evaporator and the economy is about 0.8n for a n-effect evaporators.
