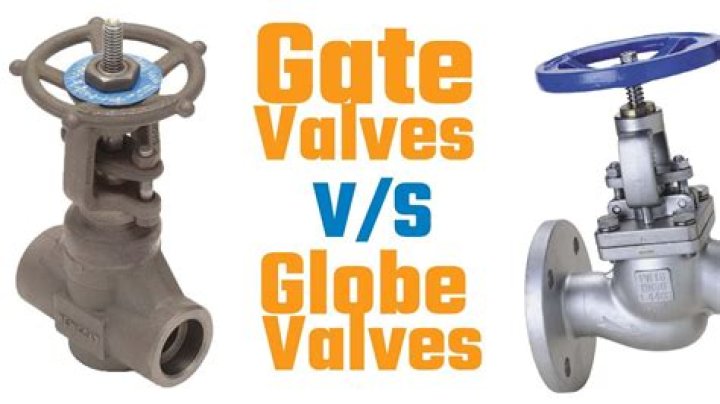

What is difference between gate and globe valve?

The main difference between globe and gate valve is in the form of the inner elements and the form of the flow inside the both valves . Globe valve has very good throttling ability while gate valve is not used for throttling.

In respect to this, is a gate valve better than a ball valve?

Ball valves are more effective at forming a tight seal and have more reliability and longevity than gate valves, but tend to be more expensive. They are often used for shutoff and control applications. Because ball valves can open and close immediately, they are more likely than gate valves to cause water hammer.

Also, what is the use of globe valve? Globe valves are used primarily in situations where throttling of the commodity is required. By simply rotating the handwheel, the rate at which the commodity flows through the valve can be adjusted to any desired level. Having the valve seat parallel to the line of flow is an important feature of the globe valve.

Regarding this, how do you identify a gate valve?

Gate valves can be classified on the following basis:

1. Stem: Whether the stem can rise or is not rising.
2. Shape of gate: the gate can be wedge shaped, knife shaped, or of parallel construction.
3. Material.
4. Working Pressure.
5. The distance between the flanges.
6. Ends: flanged or threaded.

What are the different types of gate valves?

Gate valves can be divided into two main types: Parallel and wedge-shaped. The parallel gate valves use a flat gate between two parallel seats, and a popular type is the knife gate valve designed with a sharp edge on the bottom of the gate.

Related Question Answers

When would you use a gate valve?

Gate valves open by lifting a round or rectangular gate (or wedge) out of the path of the fluid. The sealing surfaces between the gate and seats are planar, so gate valves are often used when a straight-line flow of fluid and minimum restriction is needed.

Do gate valves go bad?

The most common causes of gate valve failure are wear and corrosion. Gate valves tend to wear out over time. And corrosion can cause the disc to stick in either the open or closed position. When the handle is forced, the stem leading from the handle to the disc will often break, rendering the valve useless.

How much does a gate valve cost?

Newco Cast Steel Gate Valves

Size	Class	Price
2"	150	$219.00
2"	300	$272.00
2-1/2"	150	$436.00
3"	150	$298.00

How can you tell if a gate valve is open or closed?

As the operator rotates the handle counterclockwise, the stem lifts out of the handle, opening the gate. A clockwise rotation of the gate moves the stem back into the gate and closes the valve. When the stem is no longer protruding beyond the handle, the gate valve is closed.

Can you use a gate valve on gas?

They are suitable for most fluids including steam, water, oil, air, and gas. Gate valves may have either a solid or flexible wedge disk. In addition to on/off service, gate valves can be used for regulating flow, usually in sizes 6 in.

Can a gate valve be repaired?

A malfunctioning gate valve is not difficult to repair, but it is even easier to prevent. These problems are typically caused by mineral buildup, so you should fully close and open your gate valves every few months to clear potential problems.

Do ball valves fail?

In typical ball valve applications, failure occurs when the valve fails to seal and fluid is allowed to pass through in the closed state. In this case, the valve ball and seals were so severely damaged that the sealing functionality had clearly not been functional for the majority of the valve's operational life.

Which type of valve is best for controlling the flow?

Flow control valves are necessary components in a broad range of industries. Determining which flow control valve type is best for your particular situation depends on a host of criteria, but the most commonly used types include gate valves, globe valves, pinch valves, diaphragm valves, and needle valves.

What is the symbol for a gate valve?

Gate Valves

Its symbol looks like the outline of a bowtie with two straight lines crossing each other to form an “X”.

What is Globe Control Valve?

A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.

What is a gate valve in plumbing?

Gate valves are among the most commonly used valves in plumbing applications. Gate valves control water flow by raising or lowering an internal gate by use of a twist-type handle or knob located at the top of the valve. They are most commonly used in applications where the water needs to be shut off only infrequently.

What are the types of valves?

Examples of quarter-turn valves are ball valves, plug valves, and butterfly valves. There are 2 distinct types of linear valves: rising stem (multi-turn) and axial. While both valve types rely on the linear motion of the flow obstructer, they are very different in construction and operation.

What is the difference between a gate valve and a stop valve?

Stop valves are closed by screwing a rubber gasket down onto a seat in the middle of the valve. If the valve is put in backward, the flow will force the gasket away from the top of the valve. Gate valves are called 'full-flow' valves; there's a direct unobstructed path for flow right through the middle of the valve.

What is difference between ball valve and globe valve?

The main difference between these two types is the way they close. A globe valve uses a plug (stem) that closes against the flow, and a ball valve has a gate (ball) that closes across the flow. Globe valves are good for regulating flow, whereas ball valves are better for on/off control without pressure drop.

Where is the gate valve located?

It should be under the water heater or at the top of it. It could be shaped like a ring, called a gate valve, or it could be a lever type, called a ball valve. If it's a gate valve, turn the valve right to shut the water off. If it's a ball valve, turn the valve perpendicular.

Can gate valves be installed upside down?

The preferred orientation of a gate valve is upright. The valve may be installed in other orientations, but any deviation from vertical is a compromise. Installation upside down is not recommended because of possible dirt build-up in the bonnet.

What are throttling valves?

A: Throttling valves are a type of valve that can be used to start, stop and regulate the flow of fluid through a rotodynamic pump. Throttling valves are one way of controlling flow rates, by throttling flow directly or in a bypass line.

Can a globe valve be used for isolation?

Conventional Globe valves may be used for isolation and throttling services. Although these valves exhibit slightly higher pressure drops than straight=through valves (e.g., gate, plug, ball, etc.), they may be used where the pressure drop through the valve is not a controlling factor.

Is globe valve unidirectional?

In a unidirectional valve the medium can flow in only one direction. In a bidirectional valve, the medium can flow in both the directions. In case of Gate / Globe / Check valves, Gate valve is bidirectional and Globe and Check valves are unidirectional.

How do globe valves work?

Globe valve have specific flow directions. Globe valves can be arranged so that the disk closes against or in the same direction of fluid flow. When the disk closes against the direction of fluid flow, the kinetic energy of the fluid impedes closing but aids opening of the valve.

Where is angle valve used?

Angle valves also have some type of seal, plug, and stem which helps to regulate flow. and regulate material levels. can be used as shutoff valves, needle valves, check valves, and stop-check valves. the valve is engaged, the fluid or gas flows at a right angle toward the direction it enters the valve.

Do globe valves have a flow direction?

The globe valve is used for throttling flow control. The globe valve must be installed in the proper relation to the media flow as indicated by the flow direction arrow marked on the valve body. This valve is considered uni-directional and must be installed with the pressure side or inlet under the seat.

Why globe valve is used in steam line?

Globe valves are linear motion valves with rounded bodies, from which their name is derived. They are widely used in industry to regulate fluid flow in both on/off and throttling service. Advantages include precise throttling and control, as well as high-pressure limits. Disadvantages include poor cleanliness.

What is Valve and types?

Valves are for starting or stopping flow, regulating or throttling flow, preventing back flow or relieving and regulating pressure in fluid or gaseous handling applications. Common valve types include: Ball,Butterfly,Check, Diaphragm, Gate, Globe, Knife Gate, Parallel Slide, Pinch, Piston, Plug, Sluice, etc.

Does a gate valve reduce pressure?

Gate valves require very little space along the pipe axis and hardly restrict the flow of fluid when the gate is fully opened enabling gate valves to offer straightway flow with very little pressure drop.

What is the function of a flow control valve?

A very common function of flow control valves is to control the speed of cylinders and air motors. The speed of cylinders or air motors depends on the amount of air, which can be controlled by flow control valves.

What does Valve mean?

1 : a structure in the body that temporarily closes to prevent passage of material or allow movement of a fluid in one direction only a heart valve. 2 : a mechanical device by which the flow of liquid, gas, or loose material may be controlled by a movable part.

What is a gate valve made of?

Gate valves are typically constructed from cast iron, cast carbon steel, ductile iron, gunmetal, stainless steel, alloy steels, and forged steels. All-metal gate valves are used in ultra-high vacuum chambers to isolate regions of the chamber.

Are all gate valves full port?

Normally the gate valves are reduced port, but you need to specifier if you need full-port or full-bore. The Api 600 gives the range of flow pass, this is between reduced to full port.
