What is Draught in ship terms?

Vessel draft (draft in the American spelling, draught in the British) is one of the principal dimensions of any waterborne vessel and is defined in technical terms as the distance between the ship's keel and the waterline of the vessel. Simply put, the draft and freeboard combine to give the height of any vessel.

Similarly, you may ask, what does ship Draught mean?

Vessel draft (draft in the American spelling, draught in the British) is one of the principal dimensions of any waterborne vessel and is defined in technical terms as the distance between the ship's keel and the waterline of the vessel. Simply put, the draft and freeboard combine to give the height of any vessel.

Beside above, how deep is a ship underwater? About 30 feet

One may also ask, what is air draft of a ship?

Air draft (draught) is a term used to describe the distance from the top of a vessel's highest point to its waterline. Vertical clearance is the distance in excess of the air draft that allows a vessel to pass safely under a bridge or object.

Is Draught and draft the same?

But, these spellings are used in different parts of the world and at different times.” That's right they are the exact same thing. Draught is more commonly used in European spellings, whereas draft is more prevalent in American English.

Related Question Answers

What does freeboard mean?

1 : the distance between the waterline and the main deck or weather deck of a ship or between the level of the water and the upper edge of the side of a small boat. 2 : the height above the recorded high-water mark of a structure (such as a dam) associated with the water.

What is called Draught?

The noun draught is pronounced exactly like draft, and it also shares most of the same meanings. A cold burst of wind, a swig or a serving of a drink, the act of pulling a heavy load, and the depth of a ship below the surface of the water: each of these can be called a draught.

How do I get an aft draft?

Seamanship: How To Get Ship's Draft (example Problems And Solutions)

1. Here are the formulas for getting a ship's draft:
2. Formula for getting Mean Draft: MD = FD + AD / 2.
3. Where: MD for Mean Draft.
4. Formula for getting Fore Draft: FD = MD x 2 – AD.
5. Formula for getting Aft Draft: AD = MD x 2 – FD.
6. Here is the Example Problem:

What is depth of a ship?

In ship: Naval architecture. The depth is measured at the middle of the length, from the top of the keel to the top of the deck beam at the side of the uppermost continuous deck. Draft is measured from the keel to the waterline, while freeboard is measured from the…

What is freeboard of a ship?

Freeboard is the distance measured from the waterline to the upper edge of the deck plating at side of the freeboard deck amidships. The result of this calculation – the load line mark – is permanently marked on the ship hull.

How do you calculate the freeboard of a ship?

(1) Summer freeboard = (i) + (ii) + (iii) + (iv) = 5654 mm (2) Deck plate = 19 mm (3) Moulded depth = 23100 mm (4) Keel plate = 21 mm (5) Summer draft (mld) = (3) + (2) - (1) = 17465 mm. This is the maximum possible.

What is beam and draft on a ship?

Beam: The width of the boat, measured at its widest point. Generally, the larger the beam, the more stable the boat. Bilge: A compartment at the lowest point of a boat's hull. Draft:The distance between the waterline and the keel of a boat; the minimum depth of water in which a boat will float.

What are the numbers on the front of a ship?

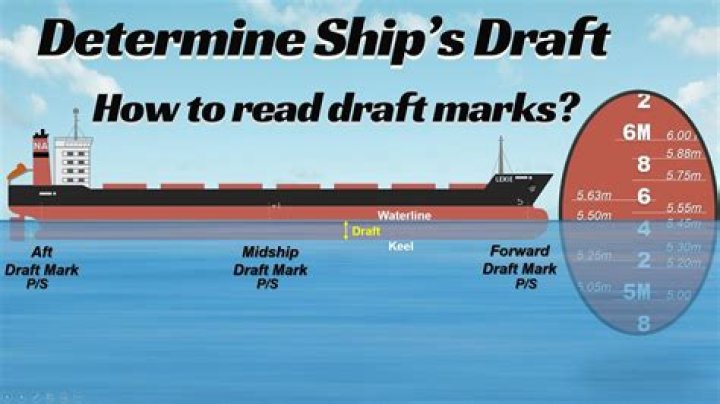

The numbers arranged in a vertical line—called draft marks—measure the distance between the bottom of the hull (the keel) and the waterline. If the water comes up to the 10-meter line, for example, that means 10 meters of the ship is underwater.

At what speed should every vessel navigate?

Every vessel shall at all times proceed at a safe speed so that you can take proper and appropriate action to avoid collision, and be able to stop in a safe distance, and appropriate to the prevailing circumstances and conditions.

What is the height of a boat called?

Freeboard is all about flooding the ship. It's how high water can come up without water coming onto the deck and entering the ship, so freeboard is defined by the lowest point of entry of water. But that's not what you're asking. Air draft of course is the ship's height above water, or how low a bridge it can go under.

What is a shoal draft boat?

"Shoal keel" can simply mean "less draft than comparable size boat or same model boat that has a deeper keel ." It is not a specific length or depth of keel. A boat may have a 5'6" draft and be considered a shoal draft model, if the manufacturer also makes the same boat with a 7' Keel.

Why is there a draft in my room?

What are the Main Areas that cause a Draft? The windows, doors, electrical outlets, and recess lighting are all areas where the cold air can enter your living space that does not seem like a big deal but can really add up. The reason these are the most common intrusion areas is that they are cutouts in your home.

What is a deep draft vessel?

Deep draft vessel means any vessel which by virtue of its draft is limited in its ability to navigate such that its navigation will be of extraordinary duration or will occasion its pilot extraordinary care or trouble.
