What is dual of Thevenin theorem?

It states that for any theorem in electrical circuit analysis there is a dual (opposite) theorem in which one replaces the original quantities with dual quantities. The figure below summarizes the duality principle as it applies to Thevenin and Norton circuits.

Subsequently, one may also ask, what is the use of Thevenin's theorem?

Thevenin's Theorem is especially useful in analyzing power systems and other circuits where one particular resistor in the circuit (called the “load” resistor) is subject to change, and re-calculation of the circuit is necessary with each trial value of load resistance, to determine voltage across it and current

Likewise, what is duality and dual network? Principle of duality in context of electrical networks states that. A dual of a relationship is one in which current and voltage are interchangeable. Two networks are dual to each other if one has mesh equation numerically identical to others node equation.

Also to know is, what dual network means?

l ′net ‚w?rk] (electricity) A network which has the same number of terminal pairs as a given network, and whose open-circuit impedance network is the same as the short-circuit admittance matrix of the given network, and vice versa.

What is VTH and RTH?

Thévenin equivalent circuit represents a general circuit in a form of an independent voltage source Vth with a since resistance Rth. To find Vth and Rth.

Related Question Answers

How does Thevenin theorem work?

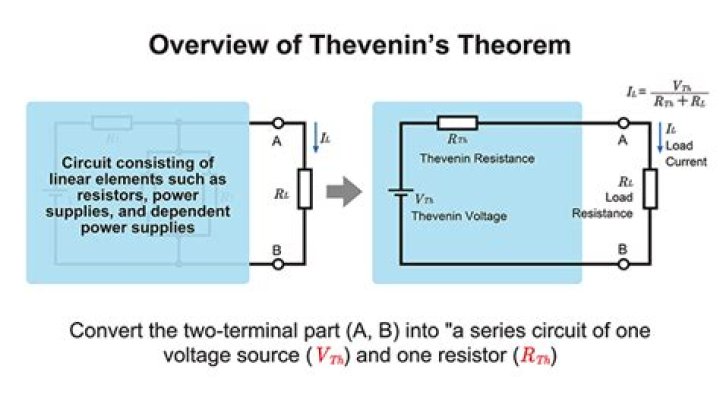

Thevenin's Theorem states that it is possible to simplify any linear circuit, no matter how complex, to an equivalent circuit with just a single voltage source and series resistance connected to a load.

How do you solve the Thevenin theorem?

The process for analyzing a DC circuit using Thevenin's Theorem requires the following steps:

1. Find the Thevenin Resistance by removing all voltage sources and load resistor.
2. Find the Thevenin Voltage by plugging in the voltages.
3. Use the Thevenin Resistance and Voltage to find the current flowing through the load.

How do you get V Thevenin?

We can calculate the Thevenin equivalent in two steps:

1. Calculate R_Th. Set all sources to zero (replace voltage sources by short circuits and current sources by open circuits) and then find the total resistance between the two terminals.
2. Calculate V_Th. Find the open circuit voltage between the terminals.

What are the limitations of Thevenin theorem?

Limitations of Thevenin Theorem It is not applicable to the circuits having unilateral elements like diode etc. 3. Thevenin's Theorem cannot be used for the circuits that contain magnetic coupling between load and any other circuit element.

What do you mean by resistance?

Resistance is the opposition that a substance offers to the flow of electric current. When an electric current of one ampere passes through a component across which a potential difference (voltage) of one volt exists, then the resistance of that component is one ohm.

What is difference between Thevenin and Norton Theorem?

– Norton's theorem uses a current source, whereas Thevenin's theorem uses a voltage source. – Thevenin's theorem uses a resistor in series, while Norton's theorem uses a resister set in parallel with the source. – The Norton's equivalent circuit and Thevenin's equivalent circuit can be easily interchanged.

What is duality in electrical circuit?

Duality means that the current or voltage in one circuit behaves in a similar manner as the. voltage or current, respectively, in another circuit. For example, if we apply a DC voltage V to a. series RL circuit, then the equation to derive the current i is.

What is duality in network theory?

The dual of a relationship is formed by interchanging voltage and current in an expression. The dual expression thus produced is of the same form, and the reason that the dual is always a valid statement can be traced to the duality of electricity and magnetism.

Why are inductors and capacitors dual elements?

Explanation: Inductor and capacitor are used in electronic circuits and filters. The inductor and capacitor are called dual Element of each other because if we exchange all the inductors with capacitor of same value then there will be no effect on the phases and attenuation etc filter and other circuits.

What is the efficiency of transmitting power when the power transferred is at maximum?

The efficiency is only 50% when maximum power transfer is achieved, but approaches 100% as the load resistance approaches infinity, though the total power level tends towards zero.

What is superposition circuits?

The superposition theorem states that in a linear circuit with several sources, the current and voltage for any element in the circuit is the sum of the currents and voltages produced by each source acting independently.
