What is electrical Uvw?

In a three-phase generator there are three windings, typically designated as A-B-C, R-S-T or U-V-W. Phase rotation (or phase sequence) describes the order (A-B-C, R-S-T, or U-V-W) of the phase voltages at the output terminals of a three-phase generator.

Correspondingly, what is RST electrical?

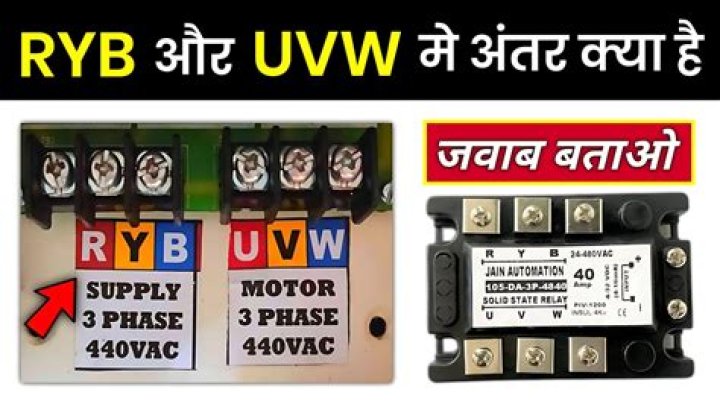

R-S-T was the general designation for the three phases of the supply system. U-V-W and X-Y-Z were then used to designate the connections to the windings on motors, generators, etc. The individual windings were U to X, V to Y, and W to Z.

Furthermore, what's the difference between single and 3 phase electricity? Single-phase power is a two-wire alternating current (ac) power circuit. three-phase is that a three-phase power supply better accommodates higher loads. Single-phase power supplies are most commonly used when typical loads are lighting or heating, rather than large electric motors.

In respect to this, what does l1 l2 l3 mean in electrical?

phase to phase

What is 220v 3phase?

If you have 220 volts and 3 phase power available, the kiln will come with a 3-wire powerblock for the 3 hot wires that give the 3 phase. Between each hot wire, 220 volts can be measured.

Related Question Answers

What color cable is neutral?

White and Gray Electrical Wires

The colors white and gray indicate a neutral wire. That means it connects to an electrical panel's neutral bus bar.

What is mean rst?

reStructuredText (file extension .rst), a lightweight markup language. RST, the reset flag in the Transmission Control Protocol. Intel Rapid Storage Technology, a computer storage technology. Reading span task, a memory span test. Reverse semantic traceability, a software quality control method.

Why is a three phase denoted by RYB?

RYB simply stands for Red, yellow and Blue respectively in a three phase electrical system. In a three phase electrical system, the three phases are separated by an angle of 120 degrees and each phase is given a specific colour, i.e. R,Y and B for the phases to be identified.

What is u1 v1 w1?

Note: U1 = 1, V1 = 2, W1 = 3, U2 = 4, V2 = 5, W2 = 6, U5 = 7, V5 = 8, W5 = 9 ( If numbers are used) U1.

What Colour is the live wire in Canada?

US AC power circuit wiring color codes

Canada: Canadian wiring is governed by the CEC (Canadian Electric Code). See Table below. The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active.

What Colour wire goes to l2?

Either way, it does not matter which wire is connected where. This is the most common type of switch, and is used where a light is controlled from a single switch. Besides, what Colour wire goes to l2? The Yellow wire goes in the common terminal, Red in the L1 terminal and Blue goes in the L2 terminal.

What is l1 and l2 wiring?

The L symbol designation refers to the Line, or the incoming circuit wires that provide the power for the motor. For example: L1 and L2 indicate that the motor voltage may be 240 volts. The voltage between two lines (for example 'L1' and 'L2') is called the line to line (or phase to phase) voltage.

What does l1 l2 and l3 mean on a light switch?

Again, some makes of switch may have alternative markings such as L1 L2 and L3. This type of switch is used where two switches control one light, such as at the top and bottom of a stairway. It can also be used as a one way switch, by using the COM and L1 terminals only.

Does the black wire go to l1 or l2?

The faceplate of a single, one-way switch has two terminals: "L1" is the terminal to which the neutral core wire is attached - the blue wire (traditionally black, before the change). "COM" or "Common" is the terminal to which the live core wire is attached - this is the brown wire (formerly red).

Is blue wire l1 or l2?

The Yellow wire goes in the common terminal, Red in the L1 terminal and Blue goes in the L2 terminal. The Grey wire goes in the common terminal, Brown in the L1 terminal and Black goes in the L2 terminal.

What does l1 and l2 mean on an electric motor?

What does l1 l2 mean? L1 and L2 Motor Wiring. The L symbol designation refers to the Line, or the incoming circuit wires that provide the power for the motor. For example: L1 and L2 indicate that the motor voltage may be 240 volts.

What does l1 and l2 mean on a switch?

Two way switching means you can switch the same light fixture from two switches that are located in different sides of a room. Two way switches have a COM terminal as well as L1 and L2 terminals. When L1 is off L2 would be on. When L1 is on L2 would be off.

What is l1 and l2?

These terms are frequently used in language teaching as a way to distinguish between a person's first and second language. L1 is used to refer to the student's first language, while L2 is used in the same way to refer to their second language or the language they are currently learning.

What is L l1 and l2?

A one way switch has a common (C) and Line out (L1) terminal. The common is the main live coming in. A two way switch (for switching a light from two different locations like in a hallway) has a common (C) a L1 and an L2 terminal. L1 is off when L2 is on and vice versa depending on the switch position.

How many volts is a 3 phase?

What's the difference between single phase and three phase? Electricity is either connected at 230 or 240 volts (single-phase, which accounts for the majority of domestic situations), or 400 and 415 Volts (three-phase).

Is it cheaper to run 3 phase?

Single phase power is used in most homes and small businesses because it is relatively simple and inexpensive to install. Commercial and industrial businesses with greater electricity needs prefer three phase power because it is more efficient and less expensive to operate.

Can a house have 3 phase power?

The good news is that the technology is now much more readily available and can be used in homes. The 3-phase power works with three alternating currents that are separated uniformly in phase angle. The three phases share a common leg, neutral in the installations.

What is the symbol for 3 phase?

A three-phase system may be arranged in delta (∆) or star (Y) (also denoted as wye in some areas). A wye system allows the use of two different voltages from all three phases, such as a 230/400 V system which provides 230 V between the neutral (centre hub) and any one of the phases, and 400 V across any two phases.

What is the advantage of 3 phase over single phase?

A polyphase system produces power at a constant rate in the load. A three phase system can transmit more power as compared to a single phase system. The efficiency of three phase operated devices and appliances is higher than the single phase operated machines. Three phase machines are less costly and more efficient.

What does a 3 phase plug look like?

Three-phase power is supplied by four wires. Three hot wires carrying 120 volts of electricity and one neutral. The three hot wires in a three-phase circuit are colored black, blue and red; a white wire is the neutral and a green wire is used for the ground.

How many wires does 3 phase have?

four wires

Is all 220v 3 phase?

But to have 220 V the NEUTRAL is a must between each phase and the neutral will give you 220 V. This system is called Three-phase 220 V. Unlike the 220 V three phase, you don't need a neutral, with a good GROUND will give you 220 V.

How many amps is a 3 phase?

For example, a three phase circuit using 25,000 watts of power and a line voltage of 250 will have a current flow of 25,000/(250 x 1.73), which is equal to 57.80 amperes.

What is the difference between 220v and 380v?

Two, the difference between the line diameter and the number of turns: relatively, the line diameter of the 220V AC contactor is rough and the number of turns is small; the 380V AC contactor is the opposite, the line diameter is fine and the number of turns is big!

How do I convert 440v to 220v?

If your neighbor has different phase then you have to borrow that phase then by using step down transformer 440 Vac to 220 Vac you can step-down to 220 V and can be use. But you have 220 Vac already available at home. Generally people do the reverse 440 v to 220/120 V ac step down for control voltage of equipment.

Is 220v single or two phase?

US 110 and 220V household power has 60 peaks per second. Single phase.

What is the difference between 3 wire and 4 wire 220v?

In a 3-wire 220v line, the two insulated wires each carry power to the appliance. A 4-wire 220v line is used for appliances such as stoves and clothes dryers. A 4-wire line has 2 insulated power wires (red and black), one neutral wire (white) and a bare ground wire.

What is the difference between 240 volt and 208 volt?

The difference between 208V three phase, and 240V single phase, is how the voltage is derived. 240 volts can be obtained from either a 120/240 residential system or a 240 volt 3-phase delta system. 208 is from a 3 phase system and 240 can be from a single phase or a 3 phase system.

Can you get 220v single phase from 3 phase?

As you have three legs each at 220V phase-phase (A-B, B-C, C-A), you can get your single phase 220V by simply connecting to any two - and ONLY two - of the three leads. That is all you need. The ground point can then be also be referred to as “Neutral”, so you have 220V from that point to the other phase chosen.

How dangerous is 220 volts?

The human body exhibits a resistance from 1000 ohms to 100,000 ohms depending on variables like dirt and moisture. So at 220V you will see anywhere from below the pain threshold up to fatal. Most of that resistance is in the skin.

What is the color code for 3 phase wiring?

The color code for AC power wiring is similar to the code used in the United States: Phase 1 - Red. Phase 2 - Black. Phase 3 - Blue.

What is a 3 phase 4 wire system?

In a symmetrical three-phase four-wire, wye system, the three phase conductors have the same voltage to the system neutral. The voltage between line conductors is √3 times the phase conductor to neutral voltage: The currents returning from the customers' premises to the supply transformer all share the neutral wire.
