What is elevation and azimuth angle?

Azimuth and Elevation are measures used to identify the position of a satellite flying overhead. Azimuth tells you what direction to face and Elevation tells you how high up in the sky to look. Both are measured in degrees. Azimuth varies from 0° to 360°. It starts with North at 0°.

Considering this, what is elevation angle?

Elevation angle is the angle between the horizontal plane and the line of sight, measured in the vertical plane. The reference direction (i.e. an elevation angle of zero degrees) is a horizontal line in the direction to the horizon, starting from the antenna.

Also Know, how do you read elevation and azimuth? The azimuth and elevation angle are the coordinates of the observer's local horizontal system: the azimuth is the angular distance measured along the horizon (in nautics 0°=N, 90°= E, 180°=S, 270°= W), the elevation is the angular distance measured above the horizon.

Also Know, what is meant by azimuth angle?

The azimuth is the angle between a celestial body (sun, moon) and the North, measured clockwise around the observer's horizon.

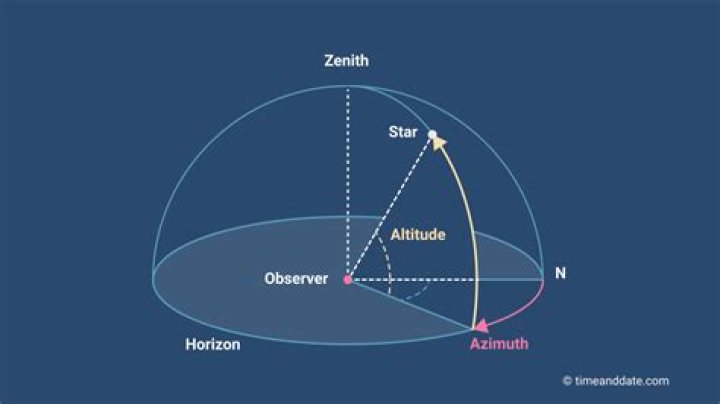

What is azimuth and altitude?

Altitude and Azimuth Altitude is the angular distance of an object above the local horizon. It ranges from 0 degrees at the horizon to 90 degrees at the zenith, the spot directly overhead. Azimuth is the angular distance of an object from the local North, measured along the horizon.

Related Question Answers

How azimuth angle is calculated?

The azimuth angle is the compass direction from which the sunlight is coming. At solar noon, the sun is always directly south in the northern hemisphere and directly north in the southern hemisphere. The azimuth angle is like a compass direction with North = 0° and South = 180°.

What is the angle of elevation example?

The "angle of elevation" is from the ground up. It is assumed that the tree is vertical, making it perpendicular with the ground. This problem deals with "opposite" and "hypotenuse" making it a sine problem. From the top of a fire tower, a forest ranger sees his partner on the ground at an angle of depression of 40º.

How do you solve an angle of elevation?

Find the angle of elevation of the plane from point A on the ground.

1. Step 1 The two sides we know are Opposite (300) and Adjacent (400).
2. Step 2 SOHCAHTOA tells us we must use Tangent.
3. Step 3 Calculate Opposite/Adjacent = 300/400 = 0.75.
4. Step 4 Find the angle from your calculator using tan^-1

What is the sun's zenith?

Definition: Zenith is the imaginary point that is directly above a particular location on the celestial sphere. Zenith, in astronomy terms, is the point in the sky directly overhead. For example, when a person says that the Sun has reached its zenith, it is used to refer to the sun's position in the sky.

What does altitude measure?

An altimeter or an altitude meter is an instrument used to measure the altitude of an object above a fixed level. The measurement of altitude is called altimetry, which is related to the term bathymetry, the measurement of depth under water.

What is meant by zenith angle?

The zenith angle is the angle between the sun and the vertical. The zenith angle is similar to the elevation angle but it is measured from the vertical rather than from the horizontal, thus making the zenith angle = 90° - elevation.

What is azimuth and zenith angle?

The solar azimuth and solar zenith express the position of the sun. The solar azimuth is the angle of the direction of the sun measured clockwise north from the horizon. The solar zenith is the angle measured from the local zenith and the line of sight of the sun.

What azimuth does the sunrise?

Sunrise Azimuth. Figure A: The paths of Solstice Suns are parallel to each other and are 23.5° N and S of the path of the Equinox Sun. At the Equator, where the Sun rises and sets perpendicular to the horizon, the Summer Solstice Sun rises 23.5° north of due East, and sets 23.5° north of due West.

How do you calculate Azimuth in surveying?

To calculate azimuths clockwise around a traverse: Subtract the interior angle from the back azimuth of the preceding line. To calculate azimuths counter-clockwise around a traverse: Add the interior angle to the back azimuth of the preceding line.

What is difference between bearing and azimuth?

The direction or expression given by the compass is what you call Azimuth. Bearing is general because it is defined as an angle of separation between two points, while azimuth is always in respect to a horizontal plane. 5. Bearing can be expressed in mils or degrees, while azimuth is often, if not always, in degrees.

What is the back azimuth of 180 degrees?

A back azimuth is calculated by adding 180° to the azimuth when the azimuth is less than 180°, or by subtracting 180° from the azimuth if it is more than 180°. For example, if an azimuth is 320°, the back azimuth would be 320° - 180° = 140°. If the azimuth is 30°, the back azimuth would be 180° + 30° = 210°.

Is altitude a degree?

Altitude is the angular distance of an object above the local horizon. It ranges from 0 degrees at the horizon to 90 degrees at the zenith, the spot directly overhead. Azimuth is the angular distance of an object from the local North, measured along the horizon.

How do I find the elevation of my satellite dish?

Elevation is the angle between the beam pointing direction, directly towards the satellite, and the local horizontal plane. It is the up-down angle. Simply it is how high from the horizon the satellite is (90° is vertical). To set it, a homemade inclinometer like this should work.

What direction does Dish Satellite need to face?

For North America and most places north of the equator the dish needs to be pointed south. If the dish is located south of the equator then the dish must be pointed north. For other services the location does not matter such as satellite radio or satellite telephone service.

What is your Zenith?

The zenith is an imaginary point directly "above" a particular location, on the imaginary celestial sphere. "Above" means in the vertical direction opposite to the apparent gravitational force at that location. The opposite direction, i.e. the direction in which gravity pulls, is toward the nadir.

How does Zenith calculate altitude?

The zenith angle is the angle between the sun and the vertical. The zenith angle is similar to the elevation angle but it is measured from the vertical rather than from the horizontal, thus making the zenith angle = 90° - elevation.
