What is involute curve?
Sophia Terry
Updated on April 01, 2026
Thereof, what is an involute curve in gears?

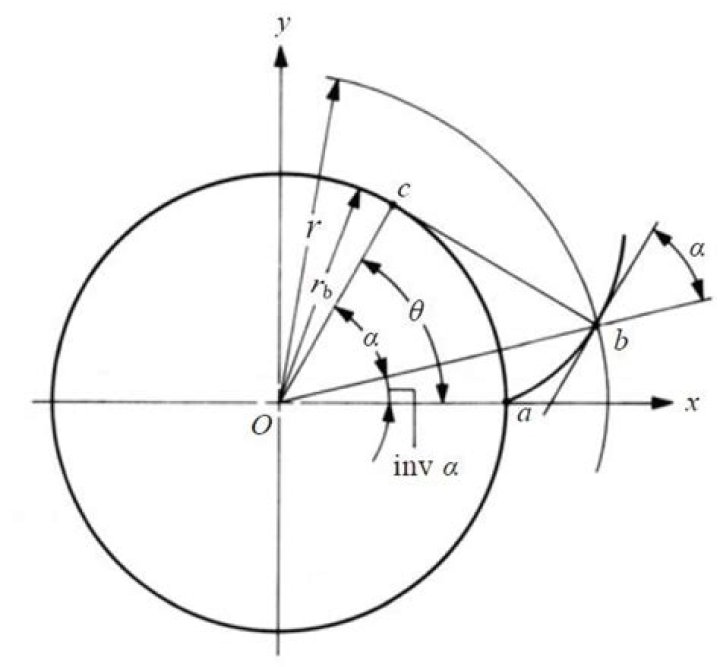

Involute curve is a curve obtained by the end of a taut string which is wound to a circle when it is unwound. The theeth of a gear are designed to have an involute profile so that they follow law of gearing. There are two profiles that follow law of gearing, involute and cycloidal. Both are used to generate gear teeth.
Furthermore, how do you find the involute of a curve? For each point of the curve (assuming K≠0), we can find the center of curvature. The set of all centers of curvature of the curve γ is called the evolute of the curve. If the curve γ1 is the evolute of the curve γ, then the initial curve γ is called the involute of the curve γ1.
Correspondingly, what is the involute of a circle?
The involute of a circle is the curve for which all the normals are tangent to a fixed circle. More practically, it is the curve traced by a hand unwinding a wire reel held in the other hand.
Why are gear teeth involute?
In an involute gear, the profiles of the teeth are involutes of a circle. Rotation of the gears causes the location of this contact point to move across the respective tooth surfaces. The tangent at any point of the curve is perpendicular to the generating line irrespective of the mounting distance of the gears.
Related Question Answers
What is the difference between involute and cycloidal gear?
(3) Due to complex manufacturing, cycloidal gears are costlier. While involute gears are simple to manufacture and thus are cheaper. (4) In cycloidal teeth, exact centre distance is required to transmit a constant velocity ratio. While involute teeth have radial flanks which are weaker as compared to cycloidal teeth.How do you determine how many teeth you need for a gear?
Automotive Transmission Gear Ratio Equation and Calculator. Screw Worm Gear Axial Force and Thrust Calculator. Gear Motor Transmission Inertia Drive Calculator.| To Find | Equation |
|---|---|
| Gear Ratio | mG = NG / Np |
| Number of Teeth | N = P D N = ( π D ) / p |
| Outside Diameter (Full Depth Teeth) | DO = ( N + 2 ) / P DO = [ ( N + 2 ) p ] / π |
Who invented the involute gear?
During the industrial revolution in the 18th century, gear technology developed rapidly, and a lot of research was done on gear. In 1733, French mathematician cami published the basic law of tooth profile engagement. In 1765, euler, a Swiss mathematician, suggested using involute as tooth profile curve.What is profile of gear?
Gear Tooth Profile: One of the fundamental s of gear design is the profile of the gear tooth. Gears generally have an involute curve tooth profile. The tangent line of the base circle of the gear and the base circle of the pinion form the line of action for the gear set.How do you make an involute gear in SolidWorks?
Accurate Involute Gears in SolidWorks- Select Tools / Equations…
- In the Equation dialog change Angular equation units to Degrees.
- Enter each of the above equations into the table into the Global category.
- Select OK to exit the dialog.
- Select Insert / Boss/Base / Extrude… to create a cylindrical gear blank.
