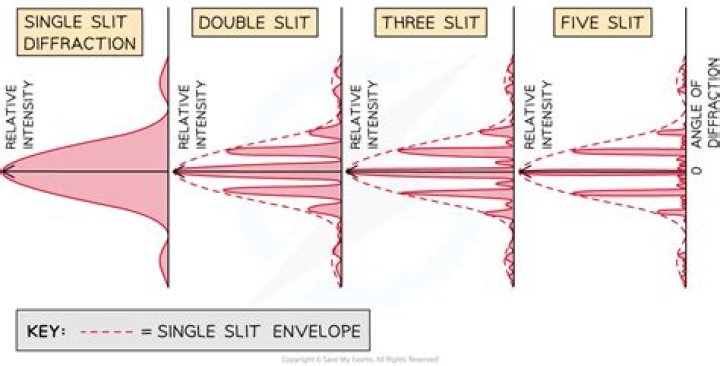

What is meant by diffraction grating?

In optics, a diffraction grating is an optical component with a periodic structure that splits and diffracts light into several beams travelling in different directions. The emerging coloration is a form of structural coloration. Because of this, gratings are commonly used in monochromators and spectrometers.

Moreover, what do you understand by diffraction grating?

A diffraction grating is an optical element, which separates (disperses) polychromatic light into its constituent wavelengths (colors). The polychromatic light incident on the grating is dispersed so that each wavelength is reflected from the grating at a slightly different angle.

Secondly, what is grating in spectroscopy? A grating is a set of equally spaced, narrow, parallel sources. A grating disperses light of different wavelengths to give, for any wavelength, a narrow fringe. This allows precise spectroscopy.

Keeping this in consideration, what is a diffraction grating quizlet?

A diffraction grating is a piece of glass with very closely spaced lines ruled on it. HOW CAN IT BE USED. It can be used to split light into different wavelengths with a high degree of accuracy, much more so than a glass prism.

Why is grating used?

Diffraction gratings are often used in monochromators, spectrometers, lasers, wavelength division multiplexing devices, optical pulse compressing devices, and many other optical instruments. Due to the sensitivity to the refractive index of the media, diffraction grating can be used as sensor of fluid properties.

Related Question Answers

Why do we use grating?

The diffraction grating is an immensely useful tool for the separation of the spectral lines associated with atomic transitions. It acts as a "super prism", separating the different colors of light much more than the dispersion effect in a prism.

What is the aim of diffraction grating experiment?

The objectives are to (a) verify the wave nature of light by measuring its wavelength in an interference phenomenon, (b) learn about diffraction grating, and (c) measure the wavelengths of red and violet colors.

How many types of grating are there?

two different types

What are the uses of diffraction?

Diffraction can be used to separate different wavelengths of light using a diffraction grating. A diffraction grating can be a series of closely-spaced slits or a mirror with a series of small grooves. Diffraction gratings work because different wavelengths of light will constructively interfere at different angles.

What is difference between diffraction and divergence?

Diffraction is a wave effect, so it applies to laser beams as well. The divergence of a beam means the amount that the rays are spreading out. The amount that they spread out depends on the length of the waves, and the width of the beam. A narrower beam of laser light spreads out more quickly than a wider beam.

What is grating element formula?

The formula for diffraction grating:

Obviously, d = 1 N frac {1} { N } N1, where N is the grating constant, and it is the number of lines per unit length. Also, n is the order of grating, which is a positive integer, representing the repetition of the spectrum.

What limits the resolution of the eye under optimal conditions?

Since the angle of resolution for diffraction-limited resolution governed by the diameter of the pupil is a larger angle, the diameter of the pupil under optimal condition limits eye resolution. Diameter of the pupil. Ultrasonic waves, like all other waves, exhibit diffraction.

What is the most likely outcome of decreasing the frequency of incident light on a diffraction grating?

Question options:lines become narrowerdistance between lines increaseslines become thickerdistance between lines decreasesView FeedbackRationale: As one decreases the wavelength of incident light on a diffraction grating, the distance between the lines decreases.

What is meant by thin film interference?

Thin film interference occurs when light waves reflecting off the top and bottom surfaces of a thin film interfere with one another. This type of interference is the reason that thin films, such as oil or soap bubbles, form colorful patterns.

What kind of spectrum would you expect molten lava in a vacuum to emit?

Molten lava acts as a blackbody, emitting electromagnetic radiation in the visible region at very high temperatures. Molten lava emitting blackbody radiation.

What produces a color spectrum when white light reflects off the surface of a CD?

The colors that you see on the CD are created by white light reflecting from ridges in the metal. When light reflects off or passes through something with many small ridges or scratches, you often get rainbow colors and interesting patterns. These are called interference patterns.

What are the three types of spectra?

Florescent lights, neon signs, and many streetlights are examples of emission spectrum sources. The three main types of spectra: continuous, absorption, emission.

What are the 3 components of a spectroscope?

There are three main parts of a spectroscope: a slit, a diffraction grating, and a viewing port.

What is the order of diffraction?

In spectroscopy: X-ray optics. … is an integer called the order of diffraction, many weak reflections can add constructively to produce nearly 100 percent reflection. The Bragg condition for the reflection of X-rays is similar to the condition for optical reflection from a diffraction grating.

What is first order diffraction?

The first bright image to either side occurs when the difference in the pathlength of the light from adjacent slits of the grating is one wavelength, and it is called the "first order" diffraction maximum. When light of multiple wavelengths is used, the different wavelengths(different colors) are separated.

How is the spectroscope used today?

A spectroscope helps us find out what stars are made of. It disperses, or separates, white light from a star into a very wide spectrum of colors — much wider than a normal prism does. When spread very wide, black lines appear in the spectrum.

What is resolving power of grating?

Resolving Power: The resolving power of a grating is a measure of its ability to spatially separate two wavelengths. The chromatic resolving power (R) is defined by R = λ/∆λ = nN, where ∆λ is the resolvable wavelength difference, n is the diffraction order, and N is the number of grooves illuminated.
