What is PLC splitter?

PLC splitter, also called Planar Waveguide Circuit splitter, is used to divide one or two light beams to multiple light beams uniformly or combine multiple light beams to one or two light beams. Fiber PLC splitter provides a low cost light distribution solution with high stability and reliability.

Also know, how does a GPON splitter work?

A GPON network consists of OLT (Optical Line Terminals), ONU (Optical Network Unit), and a splitter. The splitter will divide the signal when needed. The OLT takes in all of the optical signals in the form of beams of light from ONUs and will convert it to an electrical signal. OLTs normally support up to 72 ports.

Secondly, what is typical optical loss for 1x8 splitter? Loss Specifications of Optical Splitters

Splitter Ratio	Ideal Loss / Port (dB)	Typical Loss (dB)
1:4	6	7
1:8	9	11
1:16	12	15
1:32	15	19

In this regard, what does an optical splitter do?

In general, a optical splitter has many input and output terminals to attain the branch of the light beams and maximize the functionality of optical network circuits. The passive optical splitter can split, or separate, an incident light beam into several light beams at a certain ratio.

Can you split fiber optic cable?

How to Install Fiber Optic Cable and Split it in Two. If you have fiber optic cable inside your home, it is possible to install a cable into the home input then split the signal so you can connect the signal to two different television hookups.

Related Question Answers

Does a splitter weaken the signal?

A cable splitter WILL result in a degradation of the signal, even if the other ports are unused. One thing you can do is to add terminator caps to each unused port. They are supposed to reduce the degradation. Note that cheaper cable splitters will actually have a different amount of signal loss for each port.

How many times can you split GPON?

The GPON standard specifies up to 128 splits can be on a single GPON port, but traditional GPON deployments use 1:32 or 1:64 way splits. GPON uses separate wavelengths to transmit and receive traffic (1490nm from OLT to ONT, and 1310nm from ONT to OLT).

Can you split an optical signal?

This adapter splits a single S/PDIF (Toslink) Digital Optical Audio signal into two outputs. It allows you to connect a single optical audio source, such as the output of a gaming console or Blu-ray™ player, to two audio devices, such as a television and an AV receiver.

How does a PLC splitter work?

How does a fiber splitter work?

Fiber optical splitter working principle. Its function is to split two incident light beams from two individual input fiber cables into sixty-four light beams and transmit them through sixty-four light individual output fiber cables.

What does GPON mean?

Gigabit Passive Optical Networks

How do you split fiber signals?

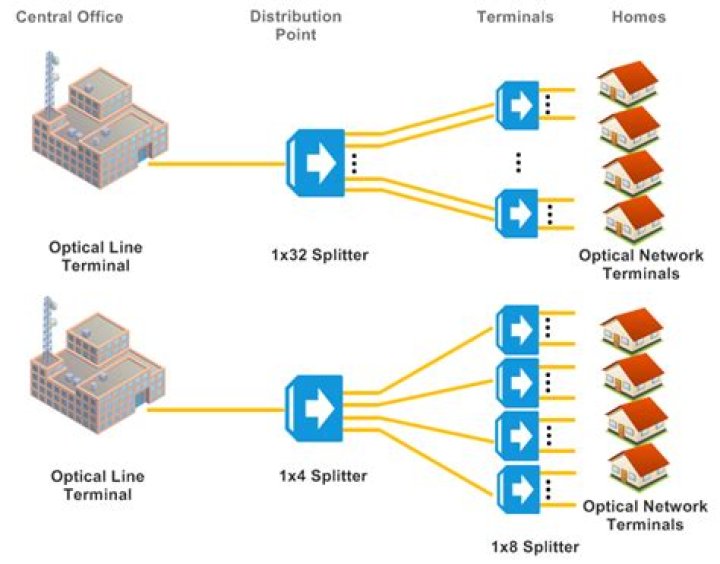

The PON splitting may be achieved by centralized splitting (one-level) or by cascaded splittings (two-level or more). A centralized approach typically uses a 1x32 splitter located in a fiber distribution hub (FDH). The splitter is directly connected via a single fiber to a OLT in the central office.

What is the difference between GPON and FTTH?

In layman's explanation, FTTH is the physical connection of Fiber up until the Home while GPON is a technology used to provide services (Telephone, TV, internet etc.) on the connected fiber.

Is there a digital optical cable splitter?
