What is Poisson's ratio of steel?

0.28

Similarly, what is the Poisson's ratio of steel?

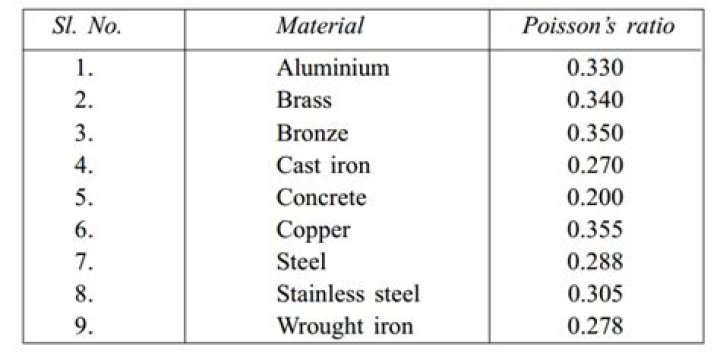

Poisson's ratio values for different material

Material	Values
Cork	0.0
Copper	0.33
Clay	0.30 – 0.45
Stainless steel	0.30 – 0.31

One may also ask, what is meant by Poisson's ratio? Poisson's ratio is defined as the ratio of the change in the width per unit width of a material, to the change in its length per unit length, as a result of strain.

Also Know, what is the position ratio?

The open position ratio is calculated as the percentage of open positions held for each of the major currency pairs on a given trading platform or exchange, relative to the total number of positions held for all the major pairs on that platform.

What is the permissible percentage of Sulphur and phosphorus content in steel?

0.05%

Related Question Answers

When Poisson ratio is zero?

If the value of Poisson's ratio is zero, then it means that. The material is rigid. The material is perfectly plastic.

Can Poisson's ratio be greater than 1?

Poisson's ratios exceeding 1/2 are permissible in an- isotropic materials. Indeed, hexagonal honeycombs can exhibit Poisson's ratio of 1, and if they have oriented hexagonal cells, greater than 1, in certain directions [2].

Why Poisson's ratio is important?

Poisson's ratio is a required constant in engineering analysis for determining the stress and deflection properties of materials (plastics, metals, etc.). It is a constant for determining the stress and deflection properties of structures such as beams, plates, shells, and rotating discs.

What is negative Poisson's ratio?

Auxetics are structures or materials that have a negative Poisson's ratio. When stretched, they become thicker perpendicular to the applied force. This occurs due to their particular internal structure and the way this deforms when the sample is uniaxially loaded.

What is the value of E for steel?

210000 MPa

What is the modulus of steel?

The modulus of elasticity is material dependent. For example, the modulus of elasticity of steel is about 200 GPa (29,000,000 psi), and the modulus of elasticity of concrete is around 30 GPa (4,350,000 psi).

What is Young's modulus and Poisson's ratio?

Young's modulus of elasticity of a material is the ratio of longitudinal stress to the longitudinal strain produced in a body made of same material. Bulk modulus of elasticity is the ratio of hydrostatic stress to volumetric strain.

What does Poisson ratio of 0.5 mean?

Poisson's ratio is a measure of the Poisson effect, the phenomenon in which a material tends to expand in directions perpendicular to the direction of compression. A perfectly incompressible isotropic material deformed elastically at small strains would have a Poisson's ratio of exactly 0.5.

How do you find Poisson's ratio?

Poisson's Ratio

1. εt = −dB/B.
2. εl= dL/L.
3. The formula for Poisson's ratio is,
4. μ = −εt/εl.
5. εt is the Lateral or Transverse Strain.
6. εl is the Longitudinal or Axial Strain.
7. μ is the Poisson's Ratio.
8. Strain: Strain is the change in the dimension of an object or shape in terms of length, breadth etc divided by its original dimension.

How is Poisson's ratio calculated?

The equation for calculating Poisson's ratio is given as ν=(-ε_trans)/ε_axial. Transverse strain (ε_trans) is measured in the direction perpendicular to the applied force, and axial strain (ε_axial) is measured in the direction of the applied force.

Which one is the ratio of stress?

The stress ratio R is usually defined as minimum stress value divided by maximum stress value, which leads to values between -∞ and +1. Using this definition R = 0 can be used for pulsating loads between zero and a positive or a negative value. For alternating load R = -1 and for constant load R = +1.

Is Poisson's ratio constant?

Poisson's ratio is sometimes also reffered to as the ratio of the absolute values of lateral and axial strain. This ratio, like strain, is unitless since both strains are unitless. For stresses within the elastic range, this ratio is approximately constant.

What is G in strength of materials?

In materials science, shear modulus or modulus of rigidity, denoted by G, or sometimes S or μ, is defined as the ratio of shear stress to the shear strain: where = shear stress is the force which acts is the area on which the force acts = shear strain.

What is bulk modulus K?

The bulk modulus is a constant the describes how resistant a substance is to compression. It is defined as the ratio between pressure increase and the resulting decrease in a material's volume. Usually, bulk modulus is indicated by K or B in equations and tables.

How do you calculate Young's modulus?

Young's modulus equation is E = tensile stress/tensile strain = (FL) / (A * change in L), where F is the applied force, L is the initial length, A is the square area, and E is Young's modulus in Pascals (Pa). Using a graph, you can determine whether a material shows elasticity.

Why is phosphorus used in steel?

Phosphorus prevents the sticking of light-gage sheets when it is used as an alloy in steel. It strengthens low carbon steel to a degree, increases resistance to corrosion and improves machinability in free-cutting steels.

Why is Sulphur used in steel?

Sulphur improves machinability but lowers transverse ductility and notched impact toughness and has little effects on the longitudinal mechanical properties. Free cutting steels have sulphur added to improve machinability, usually up to a maximum of 0.35%.

What is the effect of Sulphur in steel?

Sulfur - is usually an undesirable impurity in steel rather than an alloying element. In amounts exceeding 0.05% it tends to cause brittleness and reduce weldability. Alloying additions of sulfur in amounts from 0.10% to 0.30% will tend to improve the machinability of a steel.

Why is vanadium added to steel?

Vanadium. Vanadium is used to help control the grain size of the steel, keeping it small. The grain size is kept small because the vanadium carbides that form when vanadium is added to a steel block the formation of grains. In some steels, carbides formed by vanadium can increase the hardness and strength of steel.

What is C Mn steel?

The manganese content in carbon steels is often increased for the purpose of increasing depth of hardening and improving strength and toughness. Carbon steels containing over 1.2% up to approximately 1.8% manganese are referred to as carbon-manganese steels.

Why is chromium added to steel?

Chromium (Cr): Chromium is added to steel to increase resistance to oxidation. This resistance increases as more chromium is added. Nickel (Ni): Nickel is added in large amounts, over about 8%, to high Chromium stainless steels to form the most important class of corrosion and heat resisting steels.

What chemicals are in steel?

Carbon steel, composed simply of iron and carbon, accounts for 90% of steel production. Low alloy steel is alloyed with other elements, usually molybdenum, manganese, chromium, or nickel, in amounts of up to 10% by weight to improve the hardenability of thick sections.

Why is magnesium added to steel?

In the iron and steel industry, small quantities of magnesium are added to white cast iron to transform graphite into spherical nodules, thereby significantly improving the strength and malleability of the iron.

What is silicon killed steel?

Killed steel is deoxidized to such an extent that there is no gas evolution during solidification. Aluminum together with ferroalloys of manganese and silicon is used for deoxidation. For killing, these steels usually have a substantial amount of aluminum that is added in the ladle, in the mold, or both.
