What is the function of confocal microscope?

Most confocal microscopes used in industrial applications are reflection-type. They provide a high-resolution image with all areas in focus throughout the field of view, even for a sample having dents and protrusions on the surface. They enable the non-contact non-destructive measurement of three-dimensional shapes.

Also, what is a confocal microscope used for?

Confocal microscopy, most frequently confocal laser scanning microscopy (CLSM) or laser confocal scanning microscopy (LCSM), is an optical imaging technique for increasing optical resolution and contrast of a micrograph by means of using a spatial pinhole to block out-of-focus light in image formation.

Furthermore, what is the advantage of confocal microscopy? Confocal microscopy offers several advantages over conventional widefield optical microscopy, including the ability to control depth of field, elimination or reduction of background information away from the focal plane (that leads to image degradation), and the capability to collect serial optical sections from thick

Beside this, how does the confocal microscope work?

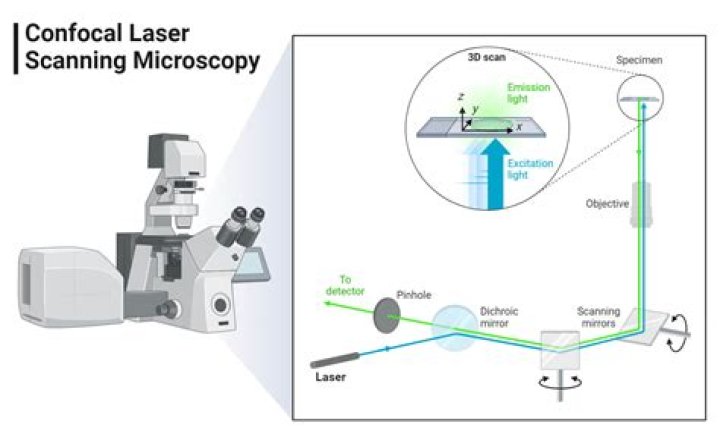

The CLSM works by passing a laser beam through a light source aperture which is then focused by an objective lens into a small area on the surface of your sample and an image is built up pixel-by-pixel by collecting the emitted photons from the fluorophores in the sample.

What is the purpose of pinhole aperture in confocal microscopy?

As all conventional light sources are usually not spot-shaped but have a significant extension, the light source is projected on a tiny aperture, the pinhole, acting as a spot-shaped source.

Related Question Answers

Why is it called confocal microscopy?

In contrast, a confocal microscope uses point illumination (see Point Spread Function) and a pinhole in an optically conjugate plane in front of the detector to eliminate out-of-focus signal – the name "confocal" stems from this configuration.

Why is confocal microscopy better than fluorescence microscopy?

Confocal microscopy offers several distinct advantages over traditional widefield fluorescence microscopy, including the ability to control depth of field, elimination or reduction of background information away from the focal plane (that leads to image degradation), and the capability to collect serial optical

What is a confocal microscope and what are its advantages?

Confocal microscopy offers several advantages over conventional widefield optical microscopy, including the ability to control depth of field, elimination or reduction of background information away from the focal plane (that leads to image degradation), and the capability to collect serial optical sections from thick

Why is an epifluorescence microscope used?

Why is epifluorescence microscopy useful? Epifluorescence microscopy is widely used in cell biology as the illumination beam penetrates the full depth of the sample, allowing easy imaging of intense signals and co-localization studies with multi-colored labeling on the same sample.

Why do lasers provide illumination?

The Perfect Light Source for Confocal Microscopy The answer is easy: their ability to generate an intense, very narrow beam of light of a single wavelength. The small diameter of the laser beam makes them also especially appropriate as light sources for confocal scanning microscopy.

How does Super resolution microscopy work?

Super-resolution microscopy, in light microscopy, is a term that gathers several techniques, which allow images to be taken with a higher resolution than the one imposed by the diffraction limit. The resolution for a standard optical microscope in the visible light spectrum is about 200 nm laterally and 600 nm axially.

What are the different types of microscope and their uses?

Different Kinds of Microscopes & Their Uses

• Simple Microscope. The simple microscope is generally considered to be the first microscope.
• Compound Microscope.
• Stereo Microscope.
• Confocal Microscope.
• Scanning Electron Microscope (SEM)
• Transmission Electron Microscope (TEM)

How much is a confocal microscope?

The cost of the requested confocal microscope is $274,579 and will be matched by an institutional commitment for an annual $10,000 serve contract, the full cost of future changes/upgrades, and 80% salary support for a technician to manage the microscope.

What type of microscope would be most effective for studying a living cell?

Two types of electron microscopy—transmission and scanning—are widely used to study cells. In principle, transmission electron microscopy is similar to the observation of stained cells with the bright-field light microscope.

What is the difference between fluorescence microscopy and confocal microscopy?

The fluorescence microscope allows to detect the presence and localization of fluorescent molecules in the sample. The confocal microscope is a specific fluorescent microscope that allows obtaining 3D images of the sample with good resolution. In these microscopies, the sample contains fluorescent molecules.

What is the resolution of a confocal microscope?

When optimally used, confocal microscopes may reach resolutions of 180 nm laterally and 500 nm axially, however, axial resolution in depth is often impaired by spherical aberration that may occur due to refractive index mismatches.

Why can confocal microscopy not be used for deep tissue imaging?

This is because refractive index discontinuities within the biological tissue still result in scattering of light (Tuchin, 2005b). Consequently, even when sample and immersion media are index matched, signal levels obtained with confocal microscopy rapidly decrease with depth.

When was confocal microscope invented?

1950s

What is the maximum resolution of a laser scanning confocal microscope?

In practice, the maximum resolution in Z (axial) that can be realized in a confocal microscope system is about 0.8µm; 2–3x worse than in the xy-dimension. Another factor that can contribute to decreased sample resolution is the optical sectioning rate.

Who invented the TEM microscope?

Ernst Ruska

What is a 3d microscope called?

Compound microscopes are light illuminated. A dissection microscope is light illuminated. The image that appears is three dimensional. It is used for dissection to get a better look at the larger specimen. You cannot see individual cells because it has a low magnification.

When would you use an electron microscope?

Electron microscopy (EM) is a technique for obtaining high resolution images of biological and non-biological specimens. It is used in biomedical research to investigate the detailed structure of tissues, cells, organelles and macromolecular complexes.

Why is confocal microscopy used?

Confocal microscopy, most frequently confocal laser scanning microscopy, is a powerful technique that allows enhanced optical resolution and contrasted images. It uses a spatial pinhole added to the confocal plane of lens. This mechanism removes light rays that are out of focus.

What microscope has the highest magnification?

electron microscope

What is the difference between scanning and transmission electron microscopes?

The main difference between SEM and TEM is that SEM creates an image by detecting reflected or knocked-off electrons while TEM uses transmitted electrons (electrons which are passing through the sample) to create an image.

What is SEM in nanotechnology?

A scanning electron microscope (SEM) is a type of electron microscope that produces images of a sample by scanning the surface with a focused beam of electrons. SEM can achieve resolution better than 1 nanometer.

How does phase contrast microscopy work?

Phase-contrast microscopy is an optical microscopy technique that converts phase shifts in light passing through a transparent specimen to brightness changes in the image. Phase shifts themselves are invisible, but become visible when shown as brightness variations.

How do you prepare a sample for confocal microscopy?

DIRT AND FINGERPRINTS: Also interfere with good confocal images. Coverslips should always be sealed down with nailpolish and the surfaces freshly cleaned before imaging. DRY SAMPLES: Ideal optics come from using samples suspended in resinous or aqueous solutions.

How does a transmission electron microscope work?

A transmission electron microscope fires a beam of electrons through a specimen to produce a magnified image of an object. The projector lens (the third lens) magnifies the image. The image becomes visible when the electron beam hits a fluorescent screen at the base of the machine.

How does live cell imaging work?

Live cell imaging is the study of living cells using time-lapse microscopy. Since then, several microscopy methods have been developed which allow researchers to study living cells in greater detail with less effort. A newer type of imaging utilizing quantum dots have been used as they are shown to be more stable.

What can you see with a confocal microscope?

Most confocal microscopes used in industrial applications are reflection-type. They provide a high-resolution image with all areas in focus throughout the field of view, even for a sample having dents and protrusions on the surface. They enable the non-contact non-destructive measurement of three-dimensional shapes.

What is the resolution of a laser scanning confocal microscope?

approximately 1 μm

How does a two photon microscope work?

Two-photon microscopy offers two advantages over other live cell imaging techniques: It penetrates up to 1 mm into tissue and it minimizes phototoxicity because the beam excites just a single focal point at a time. Photons that are scattered by the tissue cannot pair up with others to cause an excitation event.

How much do electron microscopes magnify objects?

Although modern electron microscopes can magnify objects up to two million times, they are still based upon Ruska's prototype and his correlation between wavelength and resolution. The electron microscope is an integral part of many laboratories.

How does fluorescence microscopy work?

The basic task of the fluorescence microscope is to let excitation light radiate the specimen and then sort out the much weaker emitted light from the image. The radiation collides with the atoms in your specimen and electrons are excited to a higher energy level. When they relax to a lower level, they emit light.

What is an airy unit?

An Airy unit is the diameter of the central maximum peak of the Airy pattern (caused by diffraction at the finite back aperture of the objective lens, NA) of a focussed beam. i.e. 2x the distance from the peak to the 1st trough in the pattern.
