What is the purpose of air vessels?

The air vessel is used as an accumulator to store compressed air, to separate condensate through cooling and to compensate for pressure fluctuations in a compressed air distribution system. In water supply systems, air vessels are used as hydrophors and also as safety components to avoid surge pressure.

Similarly one may ask, what is the purpose of an air vessel fitted in the pump?

The air vessels are used for the following purposes: (a) To get continuous supply of liquid at a uniform rate. (b) To save the power required to drive the pump. This is due to the fact that by using air vessels, the acceleration and friction heads are reduced. Thus the work is also reduced.

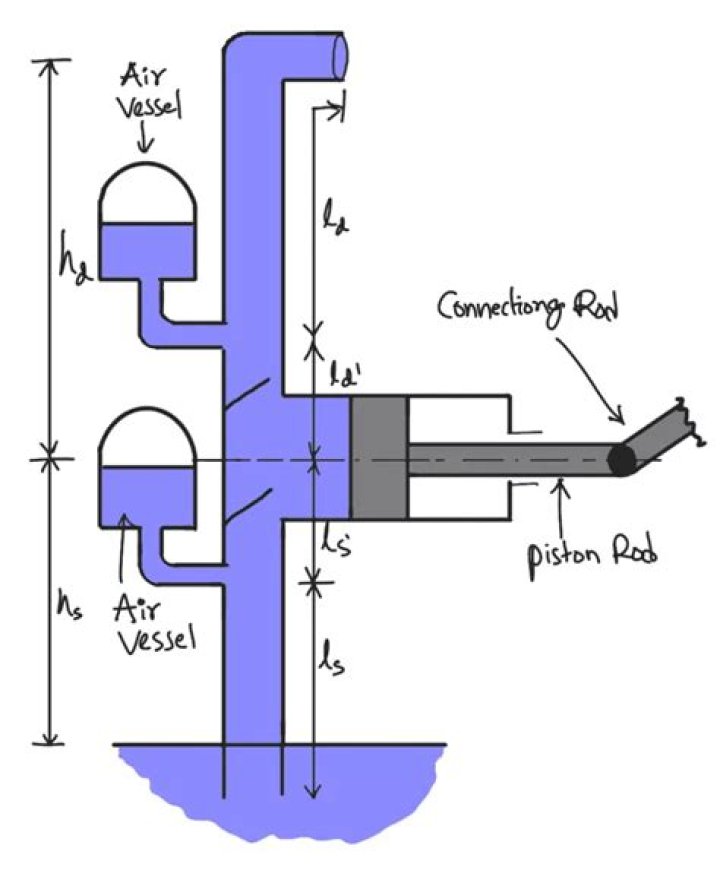

Additionally, what is the purpose of air vessels on the suction and delivery sides of the reciprocating pump How does it function on both sides? Explanation: Air vessel: It is a closed chamber fitted on the suction as well as delivery side, near the pump cylinder to reduce the accelerating head. To reduce the acceleration head we need to reduce the length of the suction pipe and the length of the delivery pipe in which fluctuation of velocity occurs.

Similarly, you may ask, what is the air vessel?

What is an air vessel in a reciprocating pump. The air vessel, in a reciprocating pump, is a cast iron closed chamber having an opening at its base. These are fitted to the suction pipe and delivery pipe close to the cylinder of the pump.

What are the advantages of using air vessels in reciprocating pump?

The air vessels are used for the following purposes: (a) To get continuous supply of liquid at a uniform rate. (b) To save the power required to drive the pump. This is due to the fact that by using air vessels, the acceleration and friction heads are reduced. Thus the work is also reduced.

Related Question Answers

What is the work saved by fitting a air vessel in a single acting pump?

By fitting air vessel, the head loss due to friction in suction and delivery pipe is reduced. This reduction in the head loss saves a certain amount of energy, which can be found by finding the work done against friction without air vessel and with air vessel. ∴ Work done by pump per stroke against friction.

Why is priming needed?

Priming is done to put pump into working order by filling or charging with water. Why Priming is required ? Pressure developed by the impeller of centrifugal pump, is proportional to the density of the fluid in the impeller. If the impeller is running in air, it will produce only a negligible pressure.

What is the use of pumps?

Today, the pump is used for irrigation, water supply, gasoline supply, air conditioning systems, refrigeration (usually called a compressor), chemical movement, sewage movement, flood control, marine services, etc.

What is the difference between centrifugal pump and reciprocating pump?

The basic and main difference between centrifugal pump and reciprocating pump is that centrifugal pump use kinetic energy of impeller so it continuously supply fluid but in reciprocating pump piston sucks the fluid and then pushes it out which does not gives continuous supply.

What are the six major parts of a centrifugal pump?

What are main parts of centrifugal pumps?

• Impeller. Impeller is a rotor used to increase the kinetic energy of the flow.
• Casing (Volute). The casing contains the liquid and acts as a pressure containment vessel that directs the flow of liquid in and out of the centrifugal pump.
• Shaft (Rotor).
• Shaft sealing.
• Bearings.

What is overall efficiency of centrifugal pump?

The centrifugal pump converts mechanical energy into hydraulic energy (flow, velocity and pressure), and the AC motor converts electrical energy into mechanical energy. Many medium and larger centrifugal pumps offer efficiencies of 75 to 93 percent and even the smaller ones usually fall into the 50 to 70 percent range.

For which pump air vessel is required?

reciprocating pump

What is negative slip in reciprocating pump?

Negative slip: When the theoretical discharge is less than actual discharge is known as negative slip.

Which pump is suitable for small discharge and high head?

Centrifugal pumps Reciprocating pumps

What is mean by maximum speed of a reciprocating pump?

Maximum speed of a reciprocating pump will be determined on the basis of fact that the pressure in the cylinder during suction and delivery stroke, should not fall below than the vapour pressure of liquid, flowing through suction and delivery pipe.

What are the main parts of reciprocating pump?

The Parts of Reciprocating Pump are as follows.

• Water Sump.
• Strainer.
• Suction Pipe.
• Suction Valve.
• Cylinder.
• Piston and Piston rod.
• Crank and Connecting rod.
• Delivery valve.

What is separation in reciprocating pump?

What is separation of reciprocating pump? If the pressure in the cylinder is below the vapour pressure, dissolved gasses will be liberated from the liquid and cavitations will takes place. The continuous flow of liquid will not exit which means separation of liquid takes place.

Which of the following is positive displacement pump?

Reciprocating pump, Vane pump, Lobe pump are the examples of positive displacement pump whereas the centrifugal pump is the non-positive displacement pump.

Why reciprocating pump is called positive displacement pump?

The most common form of reciprocating pump is the positive displacement type. These check valves ensure fluid movement is in one direction from pump suction toward the pump discharge. Since a fixed volume of fluid is displaced the rate of flow is directly proportional to speed.

What is double acting reciprocating pump?

The pump works on the principle of reciprocation of the piston and the cylinder. Creation of vacuum resulting in suction and compressing of the water resulting in discharge is the basic principle of operation. Both the strokes are effective and hence it is known as a Double Acting Reciprocating Pump.

Which of the following is an advantage of installing air vessels?

The advantages of installing air vessels are: (i) The flow fluctuation is reduced and a uniform flow is obtained. (ii) The friction work is reduced. (iii) The acceleration head is reduced considerably.

What type of blade gives maximum efficiency?

Answer: The efficiency of a centrifugal pump will be maximum when the blades are bent backward.

Why is multi staging in centrifugal pumps used?

These pumps have the unique ability to produce higher and higher pressures with the addition of every stage, but flow range always remains constant for a given rpm. Thus, Multistage are series connection hence discharge remains constant while the head increases.

When the casing in a centrifugal pump decelerates the flow what increases?

3. When the casing in a centrifugal pump decelerates the flow, what increases? Explanation: When the casing in a centrifugal pump decelerates the flow, pressure in the turbine increases. The diffuser helps this happen.

Why the delivery valve should be kept open always?

If you start the pump with discharge valve open, the discharge head will act on the pump ie, more resistance, so the motor has to give more starting torque to the pump which means more current is drawn by the motor. It can also be prevented by keeping the discharge valve closed.

Under what situation reciprocating pump is recommended?

The reciprocating pump is best suited for relatively small flow rate and high heads. In oil drilling operation this type of pump is very common. MAIN COMPONENTS OF THE RECIPROCATING PUMP- • Cylinder with a piston, piston rod, connecting rod, crank.

What is the full form of NPSH in a pump?

The difference between inlet pressure and the lowest pressure level inside the pump is called NPSH: Net Positive Suction Head. NPSH is therefore an expression of the pressure loss that takes place inside the first part of the pump housing.

What is the function of volute casing?

The volute casing is designed to guide the flow out of the impeller in order to convert the fluid flow's kinetic energy into static pressure; it serves to collect the fluid discharged from the impeller and route it to the discharge nozzle (also see Pump casing).

Which among the following controls flow rate?

Which among the following control the flow rate? Explanation: Flow rate of the tank is controlled by the valve. The actuation of individual valve closes. This corresponds to the set of nozzle thereby controlling the actual flow rate of the fluid passing through the valve.

What is meant by cavitation in centrifugal pump?

Cavitation occurs when the liquid in a pump turns to a vapor at low pressure. It occurs because there is not enough pressure at the suction end of the pump, or insufficient Net Positive Suction Head available (NPSHa). When cavitation takes place, air bubbles are created at low pressure.

What is mean by multi stage pump?

Multistage pumps are defined as pumps in which the fluid flows through several impellers fitted in series. This type of pump is often used in power station applications, e.g. as a boiler feed pump and in industrial applications requiring high pressures.

Which pump is successfully used for lifting water from deep wells?

Air Lift Pump: An airlift pump is a device used to lift water from a deep well or sump by utilizing the compressed air.

What is priming of centrifugal pump?

Priming simply means preparing or getting something ready for operation. For a centrifugal pump to work properly, you need to fill it up with water. Most centrifugal pumps are incapable of pumping vapours or gases and continuously doing so will damage the pump impeller.

What happens to the reciprocating pump when left untouched?

2. What happens to the reciprocating pump when left untouched? Explanation: When left untouched over a period of time, the reciprocating pump undergoes wear and tear.
