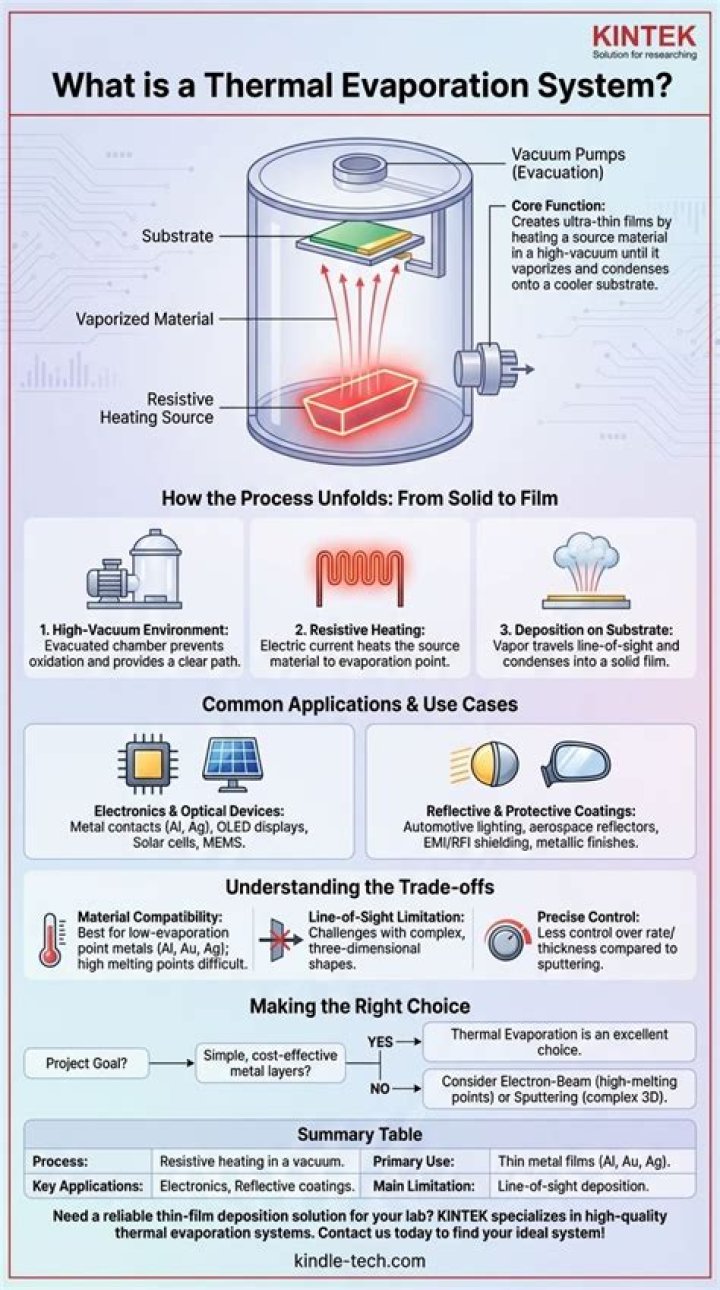

What is thermal evaporation technique?

Thermal evaporation is a common method of physical vapor deposition (PVD). It is one of the simplest forms of PVD and typically uses a resistive heat source to evaporate a solid material in a vacuum environment to form a thin film. The material is heated in a high vacuum chamber until vapor pressure is produced.

In respect to this, why vacuum is created in chamber before thermal evaporation?

Thermal Evaporation is one of the simplest of the Physical Vapor Deposition (PVD) techniques. Basically, material is heated in a vacuum chamber until its surface atoms have sufficient energy to leave the surface.

Likewise, what is an evaporation boat? In the thermal method, metal material (in the form of wire, pellets, shot) is fed onto heated semimetal (ceramic) evaporators known as "boats" due to their shape. A pool of melted metal forms in the boat cavity and evaporates into a cloud above the source.

Keeping this in consideration, how does e beam evaporation work?

E-Beam evaporation is a physical vapor deposition (PVD) technique whereby an intense, electron beam is generated from a filament and steered via electric and magnetic fields to strike source material (e.g. pellets of Au) and vaporize it within a vacuum environment.

How does a vacuum evaporator work?

Vacuum evaporation is the process of causing the pressure in a liquid-filled container to be reduced below the vapor pressure of the liquid, causing the liquid to evaporate at a lower temperature than normal.

Related Question Answers

What is CVD process?

Chemical vapor deposition (CVD) is a vacuum deposition method used to produce high quality, high-performance, solid materials. In typical CVD, the wafer (substrate) is exposed to one or more volatile precursors, which react and/or decompose on the substrate surface to produce the desired deposit.

What is RF sputtering?

RF or Radio Frequency Sputtering is the technique involved in alternating the electrical potential of the current in the vacuum environment at radio frequencies to avoid a charge building up on certain types of sputtering target materials, which over time can result in arcing into the plasma that spews droplets

What is thermal deposition?

Thermal evaporation is a common method of physical vapor deposition (PVD). It is one of the simplest forms of PVD and typically uses a resistive heat source to evaporate a solid material in a vacuum environment to form a thin film. The material is heated in a high vacuum chamber until vapor pressure is produced.

Which of the following are methods used to deposit thin films?

In order to obtain thin films with good quality, there are two common deposition techniques: physical and chemical depositions.

Evaporation techniques

Vacuum thermal evaporation.
Electron beam evaporation.
Laser beam evaporation.
Arc evaporation.
Molecular beam epitaxy.
Ion plating evaporation.

What is thin film deposition?

Thin Film Deposition is the technology of applying a very thin film of material – between a few nanometers to about 100 micrometers, or the thickness of a few atoms – onto a “substrate” surface to be coated, or onto a previously deposited coating to form layers.

What is electron beam evaporation?

What is DC sputtering?

DC or Direct Current Sputtering is a Thin Film Physical Vapor Deposition (PVD) Coating technique where a target material to be used as the coating is bombarded with ionized gas molecules causing atoms to be “Sputtered” off into the plasma.

What is beam of electrons?

Electron beam, stream of electrons (as from a betatron) generated by heat (thermionic emission), bombardment of charged atoms or particles (secondary electron emission), or strong electric fields (field emission).

What is ion beam deposition used for?

Ion beam deposition (IBD) is a thin film deposition method that produces the highest quality films with excellent precision. Also referred to as ion beam sputtering (IBS), it's a process that's used when tight control over film thickness and stoichiometry is needed.

What is the basic principle of evaporation?

Basic principles Evaporation is a process by which a liquid is brought to its boiling point by external heating thereby transforming the water into vapour, which escapes from the surface of the liquid. The rate of evaporation depends primarily: On the rate of heat transfer from the heating surface into the liquid.

How vacuum is created in evaporator?

The vacuum evaporation treatment process consists of reducing the interior pressure of the evaporation chamber below atmospheric pressure. This reduces the boiling point of the liquid to be evaporated, thereby reducing or eliminating the need for heat in both the boiling and condensation processes.

How do you increase evaporation?

Increase the surface area by placing the water in a shallow tray. Blow (preferably warm) air over it by creating a cross-draught or using a fan. (Warmer air holds more moisture.) Place the water in a metal container with a good thermal contact with its surroundings, so that it does not cool down as it evaporates.

What is the economy of an evaporator?

9. Economy of evaporator Economy (or steam economy) is the number kilogram of water vaporized from all the effects per kilogram of steam used.

What happens to water under vacuum?

Water actually boils at a lower temperature if the pressure around it is lowered. In a vacuum chamber, the pressure can be extremely low. So low, in fact, that water can actually boil at room temperature. So, if you put some water in a high-vacuum chamber you will see it boil.

What is thermal efficiency of an evaporator?

Thermal efficiency of evaporators The measure of thermal efficiency of an evaporator train is called the steam economy (unit of water evaporated per unit of steam used) and the steam economy is directly related to the number of thermal effect in the train. Modern evaporators typically have 6 or 7 thermal effects.

Can rotary evaporator remove water?

A typical rotary evaporator has a water bath that can be heated in either a metal container or crystallization dish. This keeps the solvent from freezing during the evaporation process. The solvent is removed under vacuum, is trapped by a condenser and is collected for easy reuse or disposal.

Does a vacuum decrease pressure?

If you lower the pressure (in other words, make a vacuum) this means that there will be very few gas atoms or molecules near the surface of the solid (or liquid). The boiling point for a liquid will also drop at lower pressures. In fact, you can actually get a liquid to boil at room temperature if you have a vacuum.

How is evaporation used in industry?

Evaporation is used in many food, drink and milk applications. For example, it is used to process milk, starch, derivatives, coffee, fruit juices, vegetables pastes and concentrates, seasonings, sauces, sugar and edible oil (BAT in the Food, Drink and Milk Industries, June 2005).
