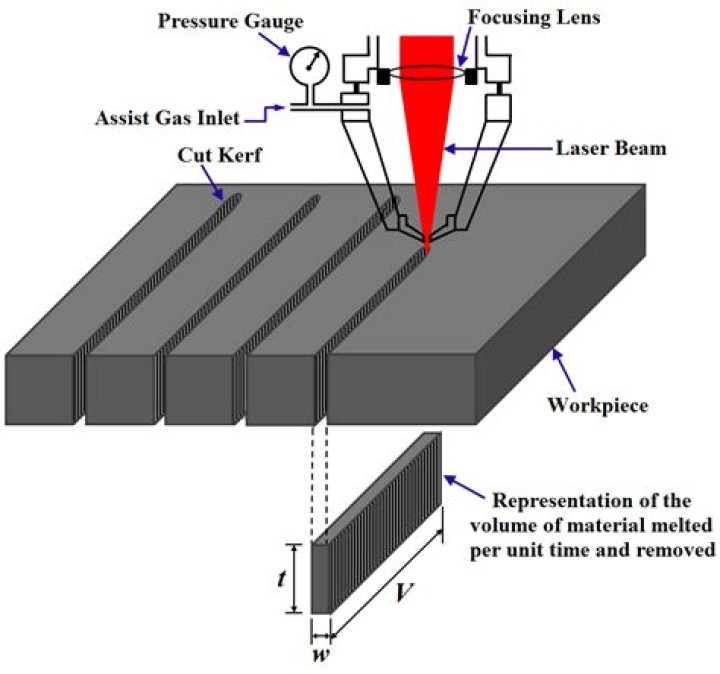

When a thermal process is used for cutting the material expelled from the kerf is called?

Terms in this set (11) The material (oxidized and molten metal) that is expelled from the kerf when cutting using a thermal process. It is sometimes called slag.

Also question is, what is thermal cutting process?

Thermal cutting is a family of processes in which heat of an electric arc, radiation energy or an exothermic reaction is utilised to melt or oxidise a metal at an accelerated rate to achieve a cut.

Likewise, what is kerf in welding? Kerf is defined as the width of material that is removed by a cutting process. The “cut angle” on the edge of the part makes measuring the kerf width sorta tricky, but for consistency, the word “kerf” should only be used when talking about the actual cut width.

Also to know is, what are the two major methods for controlling distortion while making a cut?

Describe the methods of controlling distortion when making cuts. Making two parallel cuts on the smae plate at the same speed and time; or, starting the cut a short distance from the edge of the plate, skipping other short tabs every 2-3 feet, and then cutting the remaining tabs once the part cools.

What are the two primary types of plasma arc cutting processes?

In the transferred arc process, the pilot arc is used to _____________________. In a non-transferred arc process, the material being cut is ______________________.

Related Question Answers

Which flame is used for cutting?

Types of flame. The welder can adjust the oxy-acetylene flame to be carbonizing (aka reducing), neutral, or oxidizing. Adjustment is made by adding more or less oxygen to the acetylene flame. The neutral flame is the flame most generally used when welding or cutting.

Which material Cannot be cut by the oxyfuel process?

Oxy-fuel cutting cannot cut non-ferrous metals such as aluminum, stainless, brass or copper. Elements such as chromium, nickel, molybdenum inhibit the ability to cut steel with the oxy-fuel process.

What are the two types of flame cutting torches called?

There are two types of welding and cutting torches commonly used. They are the positive-pressure type (also known as an equal-pressure type or medium-pressure type torch), and the injector type.

How hot is oxy acetylene?

3150 °C

Which Fuel Gas has the strongest odor and is easiest to detect?

Cards

Term 1. What elements make up all hydrocarbons?	Definition Hydrogen & carbon.
Term 11. What are methylacetylene-propadiene fuel gases used for?	Definition Cutting, heating, brazing, metalizing, and limited welding.
Term 13. Which fuel gas has the strongest odor and is easiest to detect?	Definition MAPP

How many types of gas cutters are there?

The model comes in three types - S, M, and L, according to the effective cutting area. Types S and M have an interchangeable arm pipe, while type L has a rail pipe on the rail cart, and the length of the rail pipe can be changed according to the size of the material to be cut.

What type of flame is used for cutting steel?

Types of flame. The welder can adjust the oxy-acetylene flame to be carbonizing (aka reducing), neutral, or oxidizing. Adjustment is made by adding more or less oxygen to the acetylene flame. The neutral flame is the flame most generally used when welding or cutting.

Which gas is used for metal cutting?

Cutting: Cutting need heat to melt the metal and wash the liquid metal away or burn. Fuel gas used in gas torches are Acetylene, Methane(LNG), LPG(Butane and Propane) and MAPP gas.

How do you stop distortion?

Several ways can be used to minimize distortion caused by shrinkage:

Do not overweld.
Use intermittent welding.
Use as few weld passes as possible.
Place welds near the neutral axis.
Balance welds around the neutral axis.
Use backstep welding.
Anticipate the shrinkage forces.
Plan the welding sequence.

What causes distortion?

Unwanted distortion is caused by a signal which is "too strong". If an audio signal level is too high for a particular component to cope with, then parts of the signal will be lost. This results in the rasping distorted sound.

What causes warpage or distortion?

Welding distortion and warpage. The high temperature heat involved in most welding processes is largely responsible for the distortion, warpage, and stresses that occur. A weld is usually made progressively, which causes the solidified portions of the weld to resist the shrinkage of later portions of the weld bead.

What are the types of distortion?

What are the main types of distortion?

Longitudinal shrinkage.
Transverse shrinkage.
Angular distortion.
Bowing and dishing.
Buckling.
Twisting.

What is the most widely used fuel gas used for cutting?

Acetylene

Why is the Torch Tip raised as the cutting lever is depressed when cutting a hole?

The sparks and oxygen cutting stream may cause even nonflammable residue inside to burn or explode. 21. Why is the torch tip raised as the cutting lever is depressed when cutting a hole? By raising the torch tip away from the metal, the amount of sparks blown into the air is reduced, and the tip is kept cleaner.

What is the best way to set the oxygen pressure for cutting?

What is the best way to set the oxygen pressure for cutting? Increase the pressure slowly and readjust the flame as you watch the length of the clear cutting stream in the center of the flame.

What is back step welding?

Backstepping is when the direction of travel is in one direction but the overall progression is in the opposite direction. All that said, its a great technique for thin sheet metal for limiting distortion.

How do you fix a weld distortion?

Distortion is corrected by applying heat to spots on the convex side. Many small spots are substantially more effective than only a few large ones. Line heating: Heating the component in a straight line along the welded joint on the opposite side to the weld often corrects angular distortion.

What is kerf allowance?

Description: Kerf is the allowance required to compensate for the tool width. With thermal cutting tools the kerf value is normally material and gauge dependent.

What is a kerf used for?

The term "kerf" is used to describe the thickness of the cut a woodworking saw blade makes in a piece of wood as it cuts through it. The term is also sometimes used to describe the thickness of the blade itself; for example, you may see the packaging of a circular saw blade or table saw blade listing its kerf width.

What is a kerf cut?

Kerf refers to the width of cut a sawblade makes when it's cut through wood. When you're cutting a board you have to allow for the width of the sawblade and its teeth when you're cutting. Kerf cutting is making many kerf cuts (cuts the width of your sawblade) along a piece of wood.

What is a kerf width?

Kerf is defined as the width of material that is removed by a cutting process. When talking about CNC shape cutting with typical cutting processes, kerf is the width of material that the process removes as it cuts through the plate.

How do you calculate kerf width?

Measuring the kerf is fairly straightforward. You simple make a part with a known dimension (such as a one-inch square) and then carefully measure the actual width. If your one-inch square is actually 0.96 inches, then your kerf is 0.04 inches.

Do you push or pull when stick welding?

Push or pull: Here the rule is simple. “If it produces slag, you drag,” says Leisner. In other words, you drag the rod or wire when welding with a stick or flux-core wire welder. Otherwise, you push the wire with metal inert gas (MIG) welding.

What happens if the standoff distance is increased?

As the standoff distance changes, the kerf width and top edge of the plate can be adversely affected and touching the nozzle to the metal may result in instantly destroying the tip.

What do you need to do when cutting aluminum?

To cut aluminum, use a wood-cutting saw with carbide-tipped blades. Apply a lubricant like standard oil or saw wax to your blade, then slow your cutting speed by reducing the diameter of the cutting blade.

What two charged particles exist in plasma?

The ionized gas with equally charged positive ions and electrons can create the plasma. The heated gas that is least partially ionized which has the ability to conduct electricity is called as arc plasma.

What type of current is used for plasma arc cutting?

The plasma-arc process may be used for cutting all electrically conductive materials. Cutting units are available with cutting currents of 20–1000 amps to cut plates with thicknesses of 0.6–150 mm.

What is the most economical plasma and shielding gas?

For best cut quality on thick stainless and aluminum use argon-hydrogen with nitrogen secondary. WARNING: your system must be equipped for safe operation with argon hydrogen gas. For most economical cutting, clean dry shop air is the best choice for cutting aluminum, mild steel, and stainless.

What type of current is used to start the plasma arc?

Current 50 to 350 amps, voltage 27 to 31 volts, gas flow rates 2 to 40 liters/minute (lower range for orifice gas and higher range for outer shielding gas), direct current electrode negative (DCEN) is normally employed for plasma arc welding except for the welding of aluminum in which cases water-cooled electrode is

What does the gas need in order to create a plasma arc?

Plasma arcs are formed using gas in two forms one is laminar (low pressure and low flow) and the second is turbulent flow (high pressure and high flow). The used gases are argon, helium, hydrogen or a mixture of these.

What is an electrical plasma?

Plasma is a form of matter in which many of the electrons wander around freely among the nuclei of the atoms. If the heat or electric field becomes extreme, many of the atoms become ions. The resulting super-ionized gas is a plasma, which can conduct a large and sustained electric current.

What is the name of the torch part made of copper with a very small tungsten embedded in the end?

The plasma torch used to control the rate of plasma for welding or cutting process. Ionized high energy state of gas called plasma is passed through torch. Torch must be controllable for the easy use.
