Which of the following is an example of a simple harmonic motion?

Difference between Periodic and Simple Harmonic Motion

Periodic Motion	Simple Harmonic Motion
Periodic motion examples are the motion of the hands of a clock, the motion of the wheels of a car, etc.	Simple harmonic motion examples: the motion of a pendulum, motion of a spring, etc.

Herein, which of the following is the best example of simple harmonic motion?

mass spring system. a steel ruler clamped to a bench oscillates when its free end is displaced sideways. a steel ball rolling in a curved dish. a swing.

One may also ask, what is a simple harmonic motion in physics? In mechanics and physics, simple harmonic motion is a special type of periodic motion where the restoring force on the moving object is directly proportional to, and opposite of, the object's displacement vector. The motion is sinusoidal in time and demonstrates a single resonant frequency.

Similarly, which is not an example of simple harmonic motion?

A fan rotating with constant angular velocity, an object moving back and forth about a mean position periodically with constant speed, earth revolving around the sun, a perfectly elastic basket ball bouncing on a perfectly rigid surface, etc. are all examples of non harmonic periodic motions.

Is the motion of a piston simple harmonic?

The motion of a piston of a car engine approximates simple harmonic motion.

Related Question Answers

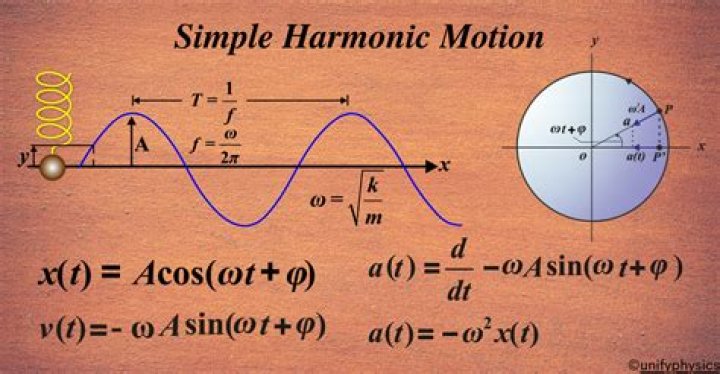

What is the formula of simple harmonic motion?

For a simple harmonic oscillator, an object's cycle of motion can be described by the equation x ( t ) = A cos ? ( 2 π f t ) x(t) = Acos(2pi f t) x(t)=Acos(2πft)x, left parenthesis, t, right parenthesis, equals, A, cosine, left parenthesis, 2, pi, f, t, right parenthesis, where the amplitude is independent of the

What are the types of simple harmonic motion?

Types of Simple Harmonic Motion Linear SHM. Angular SHM.

What is simple harmonic motion and its characteristics?

Originally Answered: What are the characteristics (or conditions) of simple harmonic motion? A restoring force must act on the body. Body must have acceleration in a direction opposite to the displacement and the acceleration must be directly proportional to displacement. The system must have inertia (mass).

What are the applications of simple harmonic motion?

Simple harmonic motion and obtains expressions for the velocity, acceleration, amplitude, frequency and the position of a particle executing this motion. Its applications are clock, guitar, violin, bungee jumping, rubber bands,diving boards,eathquakes, or discussed with problems.

Why simple harmonic motion is important?

Why is simple harmonic motion so important? Simple harmonic motion is a very important type of periodic oscillation where the acceleration (α) is proportional to the displacement (x) from equilibrium, in the direction of the equilibrium position.

Why is simple harmonic motion called simple?

Here comes the answer to part two of the question. Now the minimum / simplest value which n can take is 1 therefore it is called simple harmonic motion / simplest of the oscillations that can exist.

Is a bouncing ball an example of simple harmonic motion?

In case of a ball bouncing on the ground, the motion of the ball is not Simple Harmonic, as neither its a to and fro motion nor the accleration is proportional to its displacement from its mean position.

Are all oscillations simple harmonic motion?

Therefore, every oscillatory motion is periodic but all periodic motions are not oscillatory. Furthermore, simple harmonic motion is the simplest type of oscillatory motion. This motion takes place when the restoring force acting on the system is directly proportional to its displacement from its equilibrium position.

What is phase in simple harmonic motion?

Phase of a point in SHM is the angle made by the point, in uniform circular motion whose projection is that simple harmonic motion, with the initial point of motion at the centre of the circular motion or the mean position of the simple harmonic motion.

What is simple harmonic motion PDF?

Simple Harmonic Motion. 5. SHM – Hooke's Law. ? SHM describes any periodic motion. that results from a restoring force (F) that is proportional to the displacement (x) of an object from its equilibrium position.

What is the difference between harmonic motion and simple harmonic motion?

Harmonic motion would just be any motion that is periodic. For example, motion following a kind of square wave would be harmonic. Simple harmonic motion is motion that is specifically sinusoidal; that is, it can be described by a sine wave.

What is simple harmonic motion in Hindi?

?????? ??? ??? ????? ??? (simple harmonic motion / SHM) ?? ??? ?? ???? ??? ?????? ????? ??? ?? ?? ???????? ??? ???? ?? ???? ???? ??? ???????? ?? ?????? ??? ?????? ???????? ?? ????????? ???? ???

What is Omega in SHM?

Omega is the angular frequency, or the angular displacement (the net change in the angle) per unit of time. If we multiply the angular frequency times time, we get units of radians. (Radians/second * seconds=radians) and radians are a measurement of angles.

What is PHI in SHM?

Normally, the location is measured as the angle(Thetha or Phi) measured from the mean position or the fraction of the time period T of the SHM that has elapsed with respect to mean position.

Is the motion of a piston in an automobile engine simple harmonic?

The motion of the piston of an automobile engine is approximately simple harmonic.
