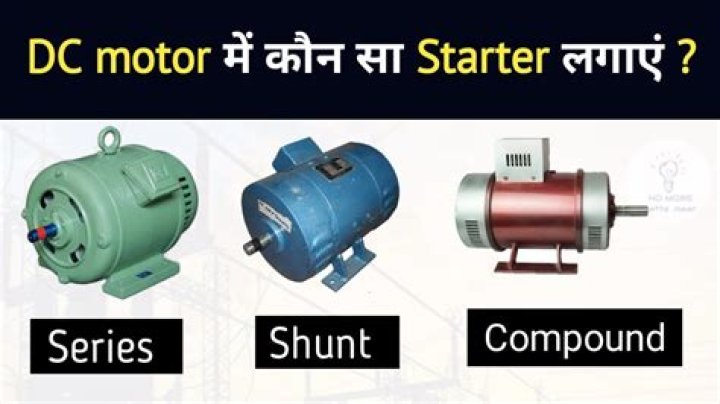

Which starter is used in dc series motor?

A 2 point starter is used in DC series motor.Now, when the motor is at rest, the back emf Eb=0. Hence,armature current at the moment of starting can be given as Ia=V/Ra. In practical DC machines, armature resistance isbasically very low, generally about 0.3 to 0.8 ohms.

Also, what is a faceplate starter is used for DC motors?

Starters are used to protect DCmotors from damage that can be caused by very high current andtorque during startup. They do this by providing externalresistance to the motor, which is connected in series to themotor's armature winding and restricts the current to anacceptable level.

Secondly, what is the starting current of DC motor? Answer: The starting current is high as there isno back EMF or counter EMF present in the armature circuit becauseatstarting counter EMF is zero. It's armature has very lessresistance due to this it need more current atstarting time. Hence DC starters are used to limitthe starting current ofmotor.

Accordingly, what is DC starter?

A 3 point starter is a device that helps in thestarting and running of a DC shunt motor or compound woundDC motor (similar to a 4 point starter).

Why a 3 point starter is used in starting a DC motor?

The back emf, develops as the motor armaturestarts to rotate in presence of the magnetic field, by generatingaction and counters the supply voltage. A 3 point starter insimple words is a device that helps in the starting andrunning of a shunt wound DC motor or compound wound DCmotor.

Related Question Answers

What are 3 types of motor controls?

precise speed control Servo motors may be made from severalmotor types, the most common being:

• brushed DC motor.
• brushless DC motors.
• AC servo motors.

What is the function of no volt release in 3 point starter?

Basically, No Volt Release Coli ensures thatwhenever supply resumes after switching off or supply failure, themotor does not start on it's own, but starts only after theuser starts it and that too through current limitingresistors.

Are DC motors self starting?

AC Motors are not self-starting,and thus, it requires some external equipment to start themotor initially. DC Motor are self-startingmotors. The Armature is stationary, and the magnetic fieldrotates in the AC Motor but in DC Motor the armaturerotates, and the magnetic field is stationary.

What are the types of starter?

Various types of starters are as follows:

• Stator resistance starter.
• Star delta starter.
• Autotransformer starting.
• Rotor resistance starters.
• Variable stator frequency starting.

Why is armature resistance low in DC motor?

There need to be sufficient winding resistancewithin the field winding to restrict the current drift. However, itis necessary that the armature resistance is low because theDC generator generates excessive currents and any DCarmature resistance will cause decrease in generatorperformance.

Why starter is used in Tubelight?

The starter is there to help the lamp light. Thestarter (which is simply a timed switch) allows current toflow through the filaments at the ends of the tube. The currentcauses the starter's contacts to heat up and open, thusinterrupting the flow of current. The tube lights.

What are the drawbacks of three point starter?

Drawbacks of a 3 PointStarter The 3 point starter suffers from a seriousdrawback for motors with a large variation of speed byadjustment of the field rheostat. To increase the speed of themotor, the field resistance should be increased. Therefore, thecurrent through the shunt field is reduced.

How does a 2 point starter function?

The Basic function of 2 point starter isto protect DC Series motor from high starting current. At the timeof starting large armature current is drawn by the motorwhich is limited by 2 point starter by connectionresistance is series with the armature.

What is back emf in dc motor?

The voltage produced across the armature is known ascounter or back EMF. The Back EMF in the DCmotor is expressed by the following mathematical expression.The back EMF is proportional to the speed of themotor.The governs the armature current and thus the backEMF maintains the speed and torque of themotor.

Are DC motors more efficient?

Consequently, AC motors are less efficientthan DC motors. In fact, the DC motor is 30% moreefficient than AC motors due to the secondary magneticfield being generated from the permanent magnets rather than copperwindings.

What is the difference between an AC motor and a DC motor?

A.C. motors are powered from alternatingcurrent (A.C.) while D.C. motors are powered fromdirect current (D.C.), such as batteries, D.C.power supplies or an AC-to-DC power converter.A.C. induction motors do not use brushes; they arevery rugged and have long life expectancies.

What are the losses in a DC motor?

The losses that occur in a DC Machine isdivided into five basic categories. The various losses areElectrical or Copper losses (I²R losses),Core losses or Iron losses, Brush losses,Mechanical losses, Stray load losses. Theselosses are explained below in detail.

How do you start a motor?

A three phase Induction Motor is SelfStarting. When the supply is connected to the stator of athree-phase induction motor, a rotating magnetic field isproduced, and the rotor starts rotating and the inductionmotor starts. At the time of starting, themotor slip is unity, and the starting current is verylarge.

What will happen if primary of transformer is connected to DC supply?

When a dc supply is provided to thetransformer primary no self induced emf will begenerated (no back emf). Therefore heavy current will flowin the transformer primary winding which may result inburning down the transformer primary winding.

Where is DC motor used?

Small DC motors are used in tools, toys,and appliances. The universal motor can operate on directcurrent but is a lightweight brushed motor used for portablepower tools and appliances. Larger DC motors are currentlyused in propulsion of electric vehicles, elevator andhoists, and in drives for steel rolling mills.

How does a 3 phase starter work?

Three-phase electric motors usethree different electric legs with a 1/3-cycle lagbetween them. The motor's starter wires directly to themotor's wire terminals. Motor starters have a set ofcontactors. When the motor's switch is turned on, voltage flowsthrough the contactor's coil, creating a magneticfield.

Does a DC motor need a resistor?

A series resistor can certainly be used. It canbe a variable resistance (rheostat) or one or more fixedresistors. Larger DC motors are seldom used for fixedspeed operation, but electronic control or series resistance may berequired just for starting a larger DC motor to avoidexcessive starting current.

Why starting current is high?

Why High Starting Currents: When 3 phase voltage applied across the stator windingfor starting of induction motor, high inrush currentsmagnetize the air gap between the stator and rotor. An induces emfis generated in the rotor windings of the induction motor becauseof the rotating magnetic field.

Why is the current drawn by a DC motor so high at starting?

The starting current is high as there isno back EMF or counter EMF present in the armature circuit becauseat starting counter EMF is zero. It's armature has very lessresistance due to this it need more current atstarting time. Hence DC starters are used to limitthe starting current of motor.

How many types of DC motors are there?

A Direct Current Motor, DC is namedaccording to the connection of the field winding with the armature.Mainly there are two types of DC Motors.

How do DC motors work?

An electric motor is an electrical machine whichconverts electrical energy into mechanical energy. The basicworking principle of a DC motor is: "whenever a currentcarrying conductor is placed in a magnetic field, it experiences amechanical force".

Why starter is used in DC motor?

Starters are used to protect DCmotors from damage that can be caused by very high current andtorque during startup. They do this by providing externalresistance to the motor, which is connected in series to themotor's armature winding and restricts the current to anacceptable level.

How is armature resistance measured in a dc motor?

This experiment aims to measure the windingsresistance of the stator (armature) windings. Everyarmature has its armature resistance (Ra). The realarmature resistance is greater than its resistancemeasured by direct current. The voltage drop across theinternal resistance can be calculated by using the Ohm'slaw.

What is armature in motor?

In electrical engineering, an armature is thecomponent of an electric machine which carries alternating current.When the machine or motor is used as a motor, thisEMF opposes the armature current, and the armatureconverts electrical power to mechanical power in the form oftorque, and transfers it via the shaft.

What is a star delta starter?

A star delta starter is the most commonly usedmethod for the starting of a 3 phase induction motor. Whenmotor reaches about 80% of its full load speed, it willbegin to run in a delta connected stator winding. A stardelta starter is a type of reduced voltagestarter.

Which DC motor is preferred for elevators?

First, DC motor is not being used in modernelevators. It is VFD controlled induction motor doingduty. But if I were to choose type of DC motor forelevator, it would be DC shunt motor. It istrue that DC series motor is generating high startingtorque but its speed highly varies as per mechanical load onit.

Why do you need a motor starter?

Motors below 1 Hp is directly connect withoutstarter because their armature resistance is very high andthey have ability to afford the high current due to highresistance. Starter in series with motor ( I.e.Resistance) is reduce the high starting current and armature takesa low current and motor will be start.

What is the principle of motor?

Working Principle Of A DCMotor A motor is an electrical machine which convertselectrical energy into mechanical energy. The principle ofworking of a DC motor is that "whenever a current carryingconductor is placed in a magnetic field, it experiences amechanical force".

What is a faceplate starter?

The direct current face plate starter is anelectrical switchgear that starts direct current motors by changingthe ohmic resistance in the armature and excitation circuit. DCface plate starters are being increasingly replaced withelectronic power converters such as thyristors.

Why single phase motors are not self starting?

When single-phase AC supply is given tostator winding. It produces alternating flux.i.e. which alternatesalong one space axis only. It is not synchronously revolving(or rotating) flux, as in case of 3 phase stator winding,the fed cannot produce rotation. Hence single phaseinduction motor is notself-starting.
