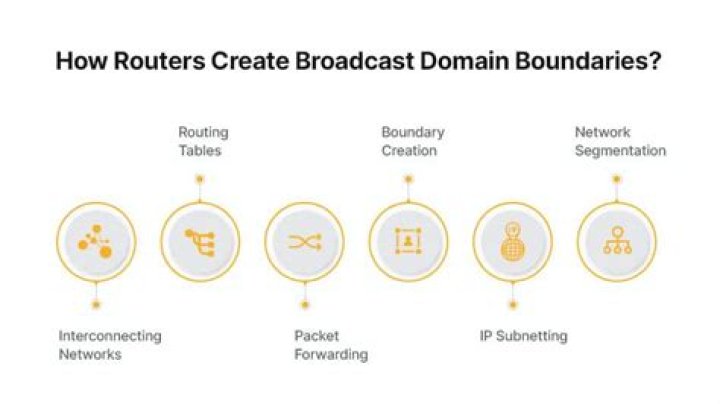

Why do routers separate broadcast domains?

If interface 1 gets a broadcast frame, the router will not forward that frame out of the other interface. Hence routers end or break the broadcast domain. When you send frame out from a host, you need the destination MAC address of the next hop (that is the next layer 3 device).

Hereof, do switches separate broadcast domains?

Switches will never break in the broadcast domain. In, collision domain, every port on a router are in the separate broadcast domains. All ports on a switch or a hub likely to be in the same broadcast domain.

Beside above, how is a hub a router and a switch different from each other explain in terms of broadcast domain? A collision occurs when two devices send a packet at the same time on the shared network segment. Collisions are often in a hub environment, because each port on a hub is in the same collision domain. By contrast, each port on a bridge, a switch or a router is in a separate collision domain.

One may also ask, what separates broadcast domains?

Routers and other higher-layer devices form boundaries between broadcast domains. While some layer two network devices are able to divide the collision domains, broadcast domains are only divided by layer 3 network devices such as routers or layer 3 switches. Separating VLANs divides broadcast domains as well.

Why is it important to limit the size of the broadcast domains in a network?

Still, a single device that sends a LOT of broadcast traffic does affect the entire broadcast domain so it's a good idea to limit the size of your broadcast domains. These two VLANs won't be able to communicate with each other, creating two different broadcast domains.

Related Question Answers

Which benefit to a LAN does a switch provide?

Switches are a fundamental part of most networks. They let multiple users communicate directly with each other. As such, they offer the potential for collision-free, high-speed networking. In essence, switches create a system of simultaneous, parallel, point-to-point connections between pairs of devices.

How many domains broadcast domains are shown?

So, There are 2 broadcast domains & 5 Collision domains. Routers Provides A separate Broadcast Domain for each interface.

Can a router broadcast?

Router do not broadcast, it simply drop the packet as soon as it notice a broadcast address. The primary role of router is to separate broadcast domains. Broadcast domains are restricted to layer 2 devices like switch.

How do I reduce broadcast traffic on my network?

They are:

1. Make smaller broadcast domains.
2. Use multicast to unicast conversion (if available with your AP vendor)
3. Increase multicast transmit rate (this should be used cautiously)
4. Dynamic multicast rate adjustment (if available with your AP vendor)

How many broadcast domains are there in 12 port switch?

How many broadcast domains and collision domains are on a basic 12-port switch using half-duplex mode? Answer is B. The switch creates 12 collision domains and 1 broadcast domain.

What protocol will the routers use to determine the most optimal path to forward the traffic?

Introduction Border Gateway Protocol (BGP)

Which device can stop broadcast traffic?

router

How do you avoid a collision domain?

Collisions can mostly be avoided by using switches instead of hubs. Switches enable for the segmentation of Ethernet networks into smaller collision domain. Whereas the use of a hub creates a large single collision domain, each port on a switch represents a separate collision domain.

Which networking device reduces the size of both collision domains and broadcast domains?

routers

What is the significant difference between a hub and a Layer 2 LAN switch?

What is the significant difference between a hub and a Layer 2 LAN switch? A switch creates many smaller collision domains, and a hub increases the size of a single collision domain.

What type of port can be assigned to multiple Vlans at the same time?

There are 2 types of ports when it comes to Vlans: Trunk ports and Access Ports. Trunk ports are designed to move data on multiple Vlans between switches and routers.

What is broadcast traffic in a network?

In a network, broadcast traffic is a message that is sent out to every node on the network or a portion of the network (LAN segment). See broadcast. THIS DEFINITION IS FOR PERSONAL USE ONLY. All other reproduction requires permission.

Which switching technology reduces the size of a broadcast domain?

Virtual LANs

Which device creates separate collision domains and a single broadcast domain?

Switches

Is a switch the same as a router?

Just as a switch connects multiple devices to create a network, a router connects multiple switches, and their respective networks, to form an even larger network. In addition to connecting multiple networks together, the router also allows networked devices and multiple users to access the Internet.

What hardware is needed to connect two networks together?

router

Why a hub creates a collision domain in a network?

Collisions occur often in a hub environment because all devices connected to the hub are in the same collision domain. Only one device may transmit at time, and all the other devices connected to the hub must listen to the network in order to avoid collisions. Total network bandwidth is shared among all devices.

What is the purpose of a router?

A router receives and sends data on computer networks. Routers are sometimes confused with network hubs, modems, or network switches. However, routers can combine the functions of these components, and connect with these devices, to improve Internet access or help create business networks.

What is a hub vs switch?

A Hub is a networking device that allows you to connect multiple PCs to a single network, whereas a Switch connects various devices together on a single computer network. A Hub operates on the physical layer, whereas Switch operates on the data link layer.

What is router and switch?

Just as a switch connects multiple devices to create a network, a router connects multiple switches, and their respective networks, to form an even larger network. These networks may be in a single location or across multiple locations. When building a small business network, you will need one or more routers.

How does a network router work?

A wireless router connects directly to a modem by a cable. This allows it to receive information from — and transmit information to — the internet. The router then creates and communicates with your home Wi-Fi network using built-in antennas. As a result, all of the devices on your home network have internet access.

What kind of cable do you use to connect a PC directly to a router for data flow?

An Ethernet crossover cable is a network cable used to connect two Ethernet network devices directly, such as two computers without a switch or router in between. They are used to send and receive data by enabling complex data transfers between computers, routers, and networks.

Which are the 2 trunking protocols?

There are two trunking protocols used on modern communication networks: Inter-Switch Link (ISL) from Cisco and the aforementioned nonproprietary IEEE 802.1Q. Of the two, IEEE 802.1Q is the industry standard. Even Cisco switches now use IEEE 802.1Q (dot1q) by default.

When would you configure VTP on a switch?

When would you configure VTP on a switch? When you have multiple switches with multiple VLANs and you want to share the VLAN database from one switch to all the others.

What technology allows you to assign switch ports to different networks?

An Ethernet switch controls the transmission of frames between switch ports connected to Ethernet cables using the traffic forwarding rules described in the IEEE 802.1D bridging standard. Traffic forwarding is based on address learning.

What is the result of segmenting a network with a switch?

What is the result of segmenting a network with a bridge (switch)? (Choose two.) It increases the number of collision domains. It makes smaller collision domains. Bridges break up collision domains, which would increase the number of collision domains in a network and also make smaller collision domains.

Which of the following breaks up broadcast domains in a Layer 2 switched network?

VLANs

What is the result of segmenting a network with a bridge switch?

What is the result of segmenting a network with a bridge (switch)? It increases the number of collision domains. It decreases the number of broadcast domains.

What is the primary purpose of a VLAN?

VLANs reduce the incidence of collisions and decrease the number of network resources wasted by acting as LAN segments. Data packets sent from a workstation in a segment are transferred by a bridge or switch, which will not forward collisions but will send on broadcasts to every network devices.
